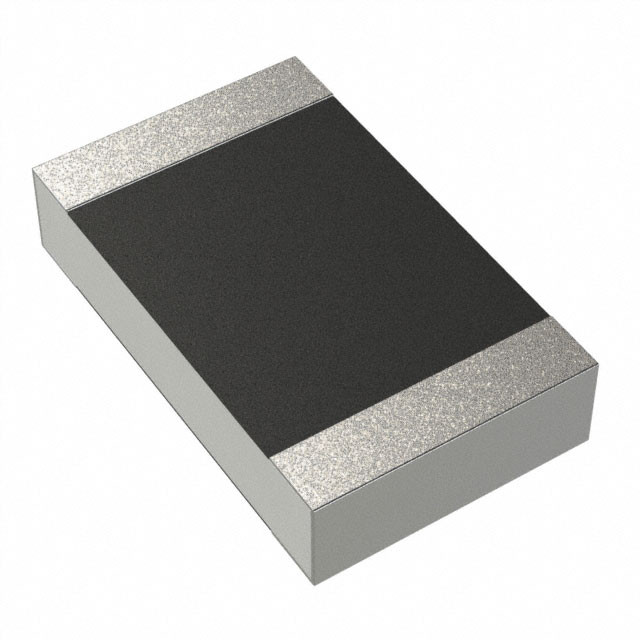

PE2010F Series
Manufacturer: YAGEO
Beta
⌘K
RES 0.008 OHM 1% 1W 2010
| Part | Supplier Device Package | Resistance | Power (Watts) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Number of Terminations [custom] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Tolerance | Package / Case | Temperature Coefficient | Ratings | Composition | Power (Watts) | Height - Seated (Max) [z] | Height - Seated (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 2010 | 8 mOhms | 1 W | 0.033 in | 0.85 mm | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 170 °C | -55 C | Current Sense | 1 % | 2010 (5025 Metric) | 50 ppm/░C | |||||
YAGEO | 2010 | 15 mOhms | 0.5 W | 2 | 5.08 mm | 0.1 in | 0.2 in | 2.54 mm | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 1 % | 2010 (5025 Metric) | 50 ppm/░C | AEC-Q200 | Metal Film | 0.5 W | 0.035 " | 0.89 mm | ||
YAGEO | 2010 | 25 mOhms | 0.5 W | 2 | 5.08 mm | 0.1 in | 0.2 in | 2.54 mm | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 1 % | 2010 (5025 Metric) | 100 ppm/°C | AEC-Q200 | Metal Film | 0.5 W | 0.035 " | 0.89 mm | ||
YAGEO | 2010 | 25 mOhms | 1 W | 2 | 5.08 mm | 0.1 in | 0.2 in | 2.54 mm | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 1 % | 2010 (5025 Metric) | 75 ppm/°C | AEC-Q200 | Metal Film | 0.035 " | 0.89 mm | |||
YAGEO | 2010 | 39 mOhms | 1 W | 2 | 5.08 mm | 0.1 in | 0.2 in | 2.54 mm | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 1 % | 2010 (5025 Metric) | 75 ppm/°C | AEC-Q200 | Metal Film | 0.035 " | 0.89 mm | |||
YAGEO | 2010 | 6 mOhms | 1 W | 0.033 in | 0.85 mm | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 170 °C | -55 C | Current Sense | 1 % | 2010 (5025 Metric) | 50 ppm/░C | |||||
 YAGEO | 2010 | 0.07 Ohms | 1 W | 2 | 5.08 mm | 0.1 in | 0.2 in | 2.54 mm | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 1 % | 2010 (5025 Metric) | 50 ppm/░C | AEC-Q200 | Metal Film | 0.035 " | 0.89 mm | |||
YAGEO | 2010 | 0.03 Ohms | 0.5 W | 2 | 5.08 mm | 0.1 in | 0.2 in | 2.54 mm | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 1 % | 2010 (5025 Metric) | 100 ppm/°C | AEC-Q200 | Metal Film | 0.5 W | 0.035 " | 0.89 mm | ||
YAGEO | 2010 | 0.02 Ohms | 1 W | 0.033 in | 0.85 mm | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 170 °C | -55 C | Current Sense | 1 % | 2010 (5025 Metric) | 75 ppm/°C | |||||
YAGEO | 2010 | 0.02 Ohms | 1 W | 2 | 5.08 mm | 0.1 in | 0.2 in | 2.54 mm | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 1 % | 2010 (5025 Metric) | 75 ppm/°C | AEC-Q200 | Metal Film | 0.035 " | 0.89 mm |
