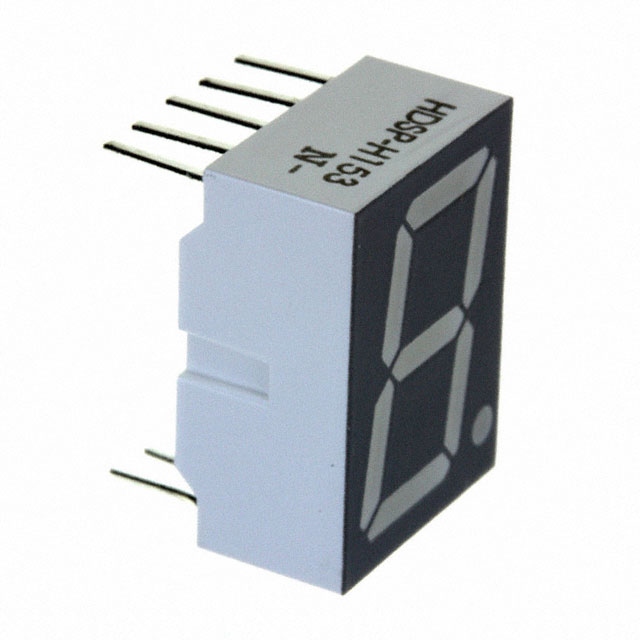

HDSP-H15 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISP 7SEG 0.56" OV/FL RED 10DIP
| Part | Power Dissipation (Max) [Max] | Common Pin | Package / Case | Package / Case [custom] | Package / Case | Package / Case | Display Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Wavelength - Peak | Current - Test | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Color | Number of Characters | Number of Characters [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Broadcom Limited | 96 mW | Common Anode | 10-DIP | 9 | 15.24 mm | 0.6 in | 7-Segment | 8 mm | 17.02 mm | 0.495 in | 12.57 mm | 0.315 " | 0.67 in | 1.8 V | 645 nm | 20 mA | 16 mcd | 0.56 in | 14.22 mm | Red | +/-1 (overflow) | ||
 Broadcom Limited | 96 mW | Common Cathode | 10-DIP | 15.24 mm | 7-Segment | 8 mm | 17.02 mm | 0.495 in | 12.57 mm | 0.315 " | 0.67 in | 1.8 V | 645 nm | 20 mA | 16 mcd | 0.56 in | 14.22 mm | Red | 1 | 0.6 in |
