PE4559 Series
Manufacturer: Pasternack
Beta
⌘K

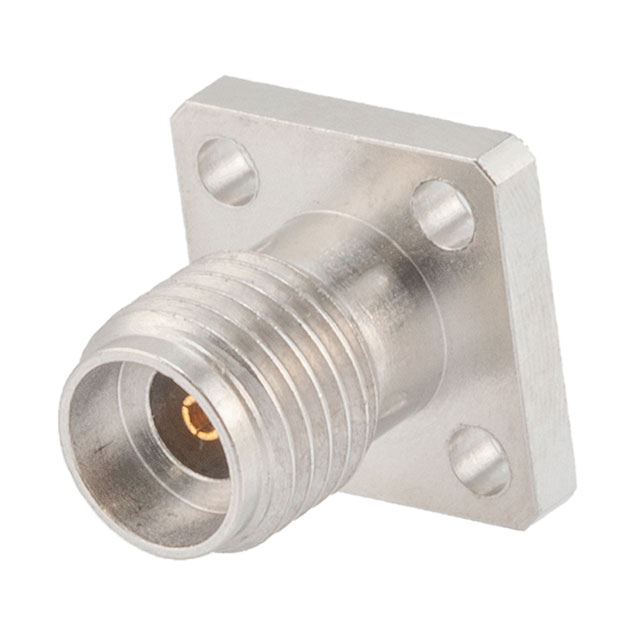

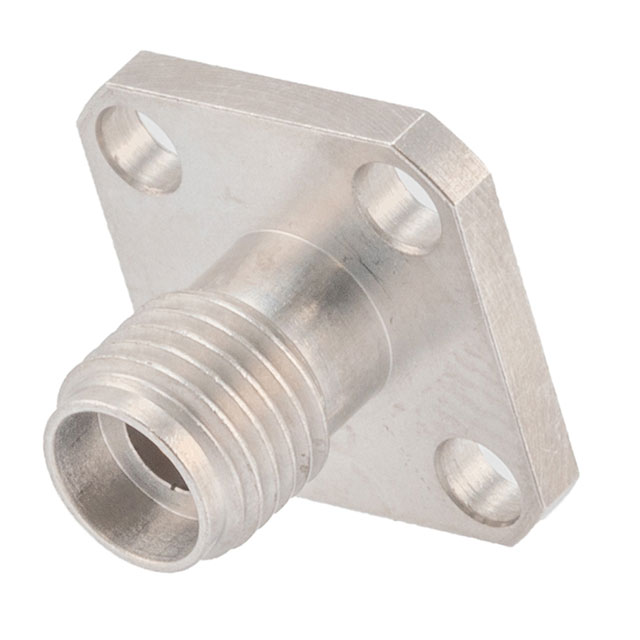

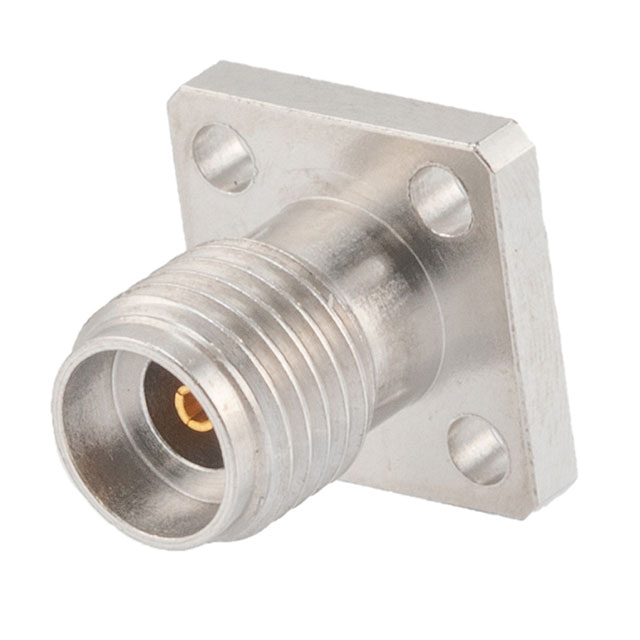

2.92(F) FLD RPL 4HOLE 0.015" PIN
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Material | Features | Mounting Feature | Number of Ports | Frequency - Max [Max] | Center Contact Material | Connector Style [x] | Contact Termination | Housing Color | Impedance | Shield Termination | Fastening Type | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pasternack | Polyetherimide (PEI) | -40 C | 165 °C | 500 | Gold | Stainless Steel | Field Replaceable For Hermetically Sealed Pin | Flange | 1 | 40 GHz | Beryllium Copper | 2.92 mm | Compression | Silver | 50 Ohms | Screw | Threaded | Panel Mount | Receptacle Female Socket |
 Pasternack | Polyetherimide (PEI) | -40 C | 165 °C | 500 | Gold | Stainless Steel | Field Replaceable For Hermetically Sealed Pin | Flange | 1 | 40 GHz | Beryllium Copper | 2.92 mm | Compression | Silver | 50 Ohms | Screw | Threaded | Panel Mount | Receptacle Female Socket |
 Pasternack | Polyetherimide (PEI) | -40 C | 165 °C | 500 | Gold | Stainless Steel | Field Replaceable For Hermetically Sealed Pin | Flange | 1 | 40 GHz | Beryllium Copper | 2.92 mm | Compression | Silver | 50 Ohms | Screw | Threaded | Panel Mount | Receptacle Female Socket |
 Pasternack | Polyetherimide (PEI) | -40 C | 165 °C | 500 | Gold | Stainless Steel | Field Replaceable For Hermetically Sealed Pin | Flange | 1 | 40 GHz | Beryllium Copper | 2.92 mm | Compression | Silver | 50 Ohms | Screw | Threaded | Panel Mount | Receptacle Female Socket |
