895-014 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 14POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Contact Type	Card Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions/Bay/Row	Gender	Mounting Type	Number of Rows [custom]	Flange Feature	Termination	Contact Material	Number of Positions	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Features

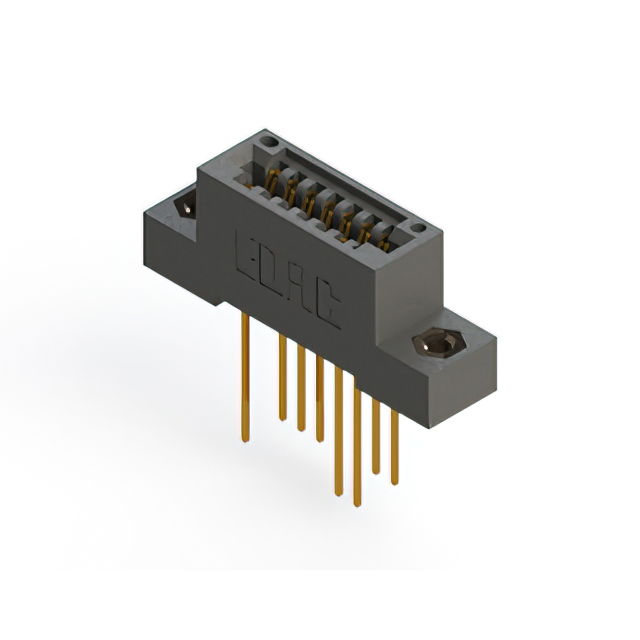

EDAC Inc. 895-014-542-208	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	7	Female	Through Hole	2	4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	Copper Alloy	14	Dual	Black	0.25 Ám	10 Áin

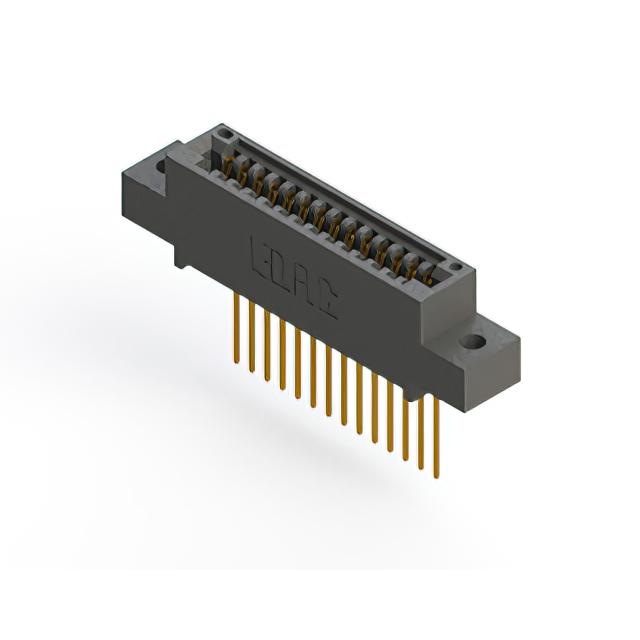

EDAC Inc. 895-014-542-402	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	14	Female	Through Hole			Wire Wrap	Copper Alloy	14	Single	Black	0.25 Ám	10 Áin	1	1	3.25 mm	0.128 "

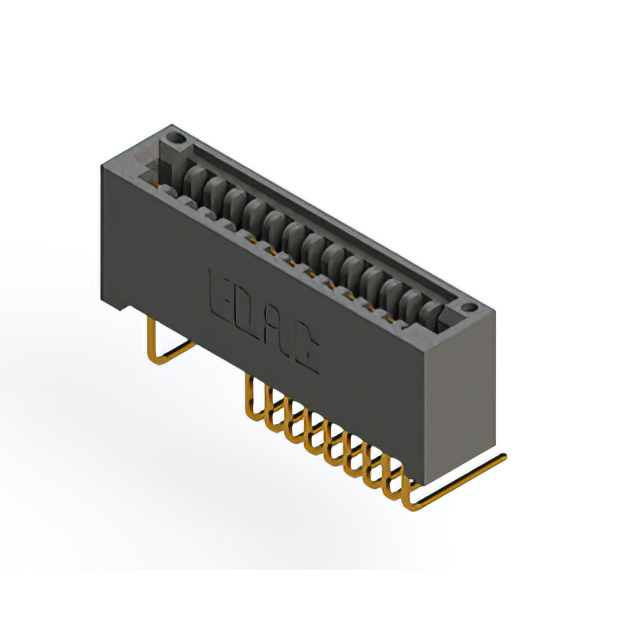

EDAC Inc. 895-014-558-101	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	14	Female	Right Angle Through Hole			Solder	Copper Alloy	14	Single	Black	0.25 Ám	10 Áin	1	1

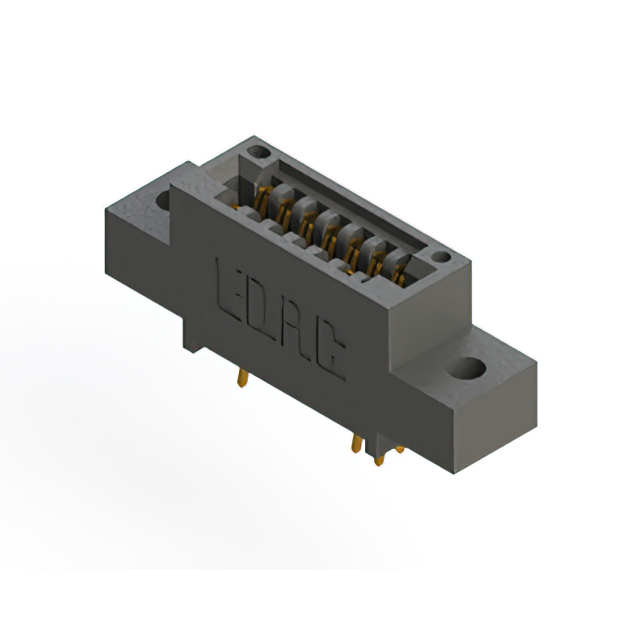

EDAC Inc. 895-014-556-502	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	7	Female	Board Edge Straddle Mount	2		Solder	Copper Alloy	14	Dual	Black	0.25 Ám	10 Áin			3.25 mm	0.128 "	Card Extender

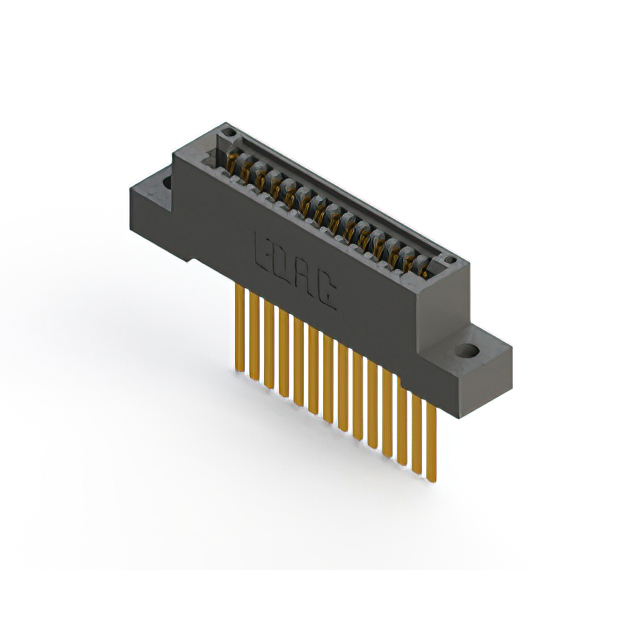

EDAC Inc. 895-014-544-102	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	14	Female	Through Hole		Flush Mount Top Opening Unthreaded	Wire Wrap	Copper Alloy	14	Single	Black	0.25 Ám	10 Áin	1	1	3.25 mm	0.128 "

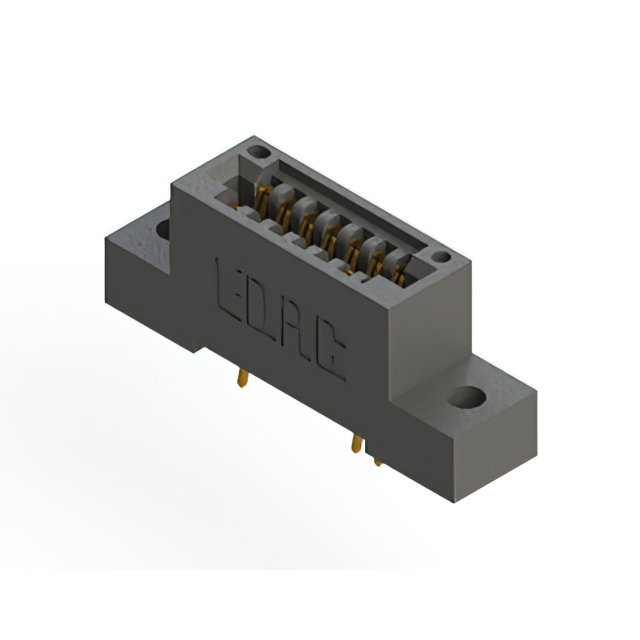

EDAC Inc. 895-014-556-202	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	7	Female	Board Edge Straddle Mount	2	Flush Mount Top Opening Unthreaded	Solder	Copper Alloy	14	Dual	Black	0.25 Ám	10 Áin			3.25 mm	0.128 "	Card Extender

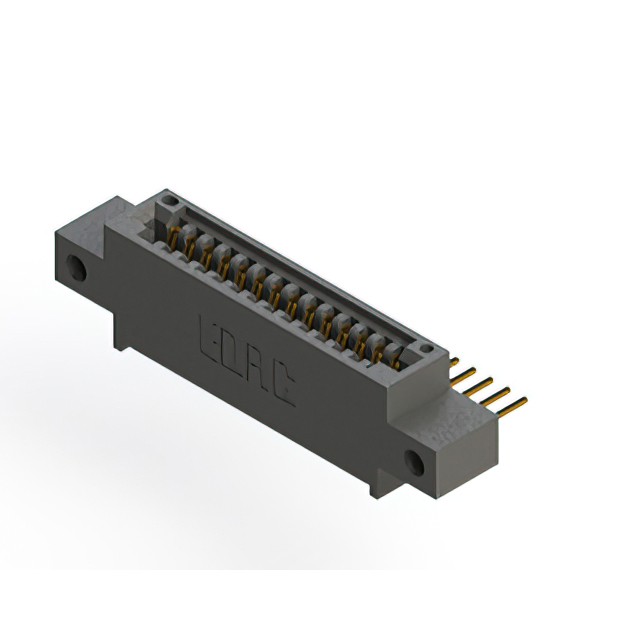

EDAC Inc. 895-014-559-612	Polyphenylene Sulfide (PPS)		0.1 "	2.54 mm	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	14	Female	Right Angle Through Hole		Side Mount Opening Unthreaded	Solder	Copper Alloy	14	Single	Black	0.25 Ám	10 Áin	1	1	3.25 mm	0.128 "

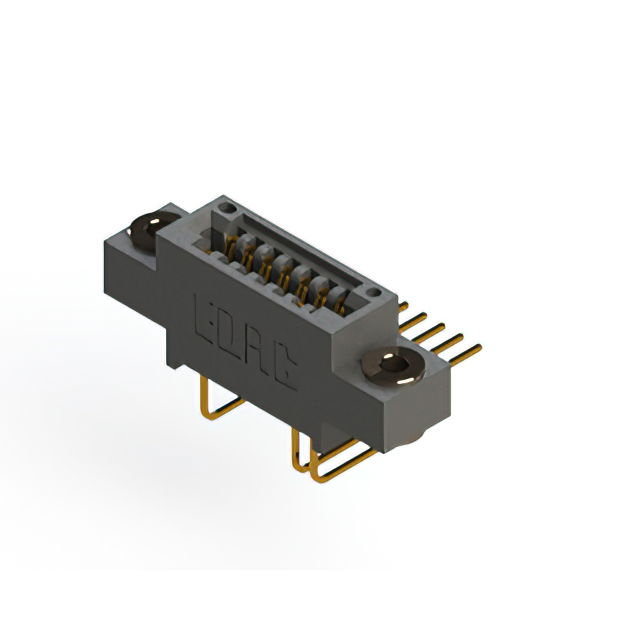

EDAC Inc. 895-014-558-803	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	7	Female	Right Angle Through Hole	2	Floating Bobbin Top Mount Opening	Solder	Copper Alloy	14	Dual	Black	0.25 Ám	10 Áin			2.95 mm	0.116 "

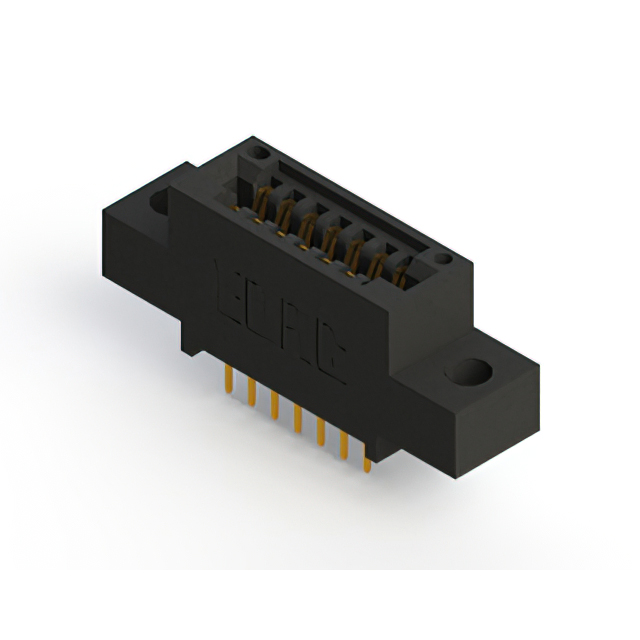

EDAC Inc. 895-014-525-504	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	7	Female	Through Hole	2		Solder	Copper Alloy	14	Dual	Black	0.25 Ám	10 Áin			3.96 mm	0.156 "

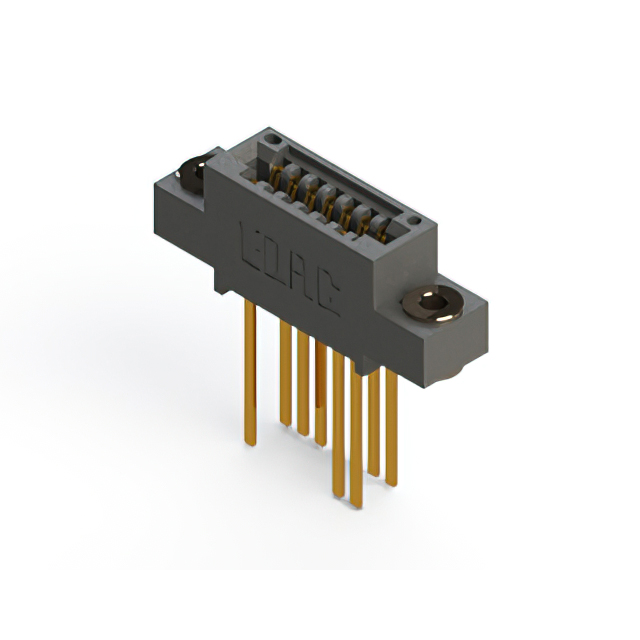

EDAC Inc. 895-014-544-503	Polyphenylene Sulfide (PPS)	2	0.1 "	2.54 mm	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	7	Female	Through Hole	2	Floating Bobbin Top Mount Opening	Wire Wrap	Copper Alloy	14	Dual	Black	0.25 Ám	10 Áin			2.95 mm	0.116 "
