PTS831G Series
Manufacturer: LITTELFUSE
Beta
⌘K

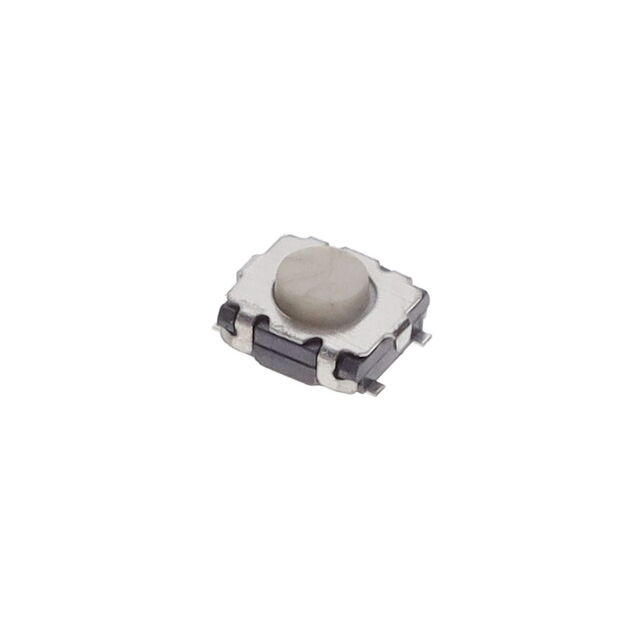

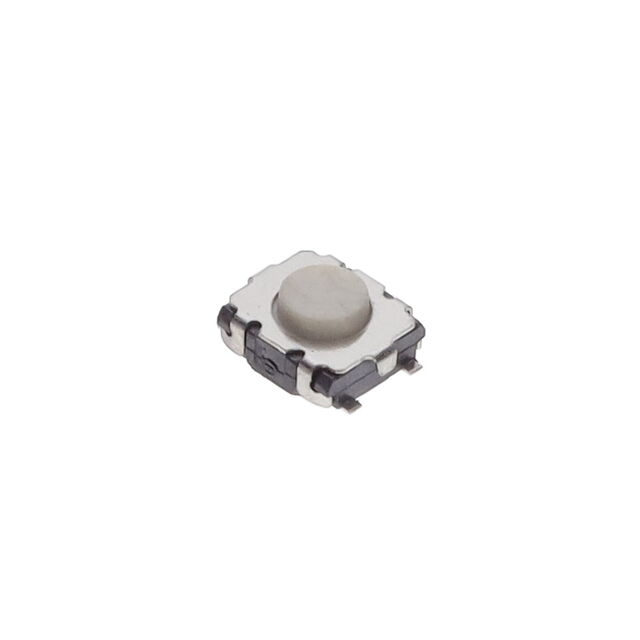

SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Circuit | Illumination | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Actuator Orientation | Switch Function | Termination Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Outline [x] | Outline [y] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.12 mm | 100000 Cycles | SPST-NO | Non-Illuminated | 1.4 mm | 0.05 A 12 VDC | Top Actuated | Off-Mom | SMD (SMT) Tab | Surface Mount | 85 °C | -40 C | 400 gf | 3 mm | 2.75 mm | Standard |
 LITTELFUSE | 0.12 mm | 200000 Cycles | SPST-NO | Non-Illuminated | 1.4 mm | 0.05 A 12 VDC | Top Actuated | Off-Mom | SMD (SMT) Tab | Surface Mount | 85 °C | -40 C | 160 gf | 3 mm | 2.75 mm | Standard |
 LITTELFUSE | 0.12 mm | 100000 Cycles | SPST-NO | Non-Illuminated | 1.4 mm | 0.05 A 12 VDC | Top Actuated | Off-Mom | SMD (SMT) Tab | Surface Mount | 85 °C | -40 C | 400 gf | 3 mm | 2.75 mm | Standard |
