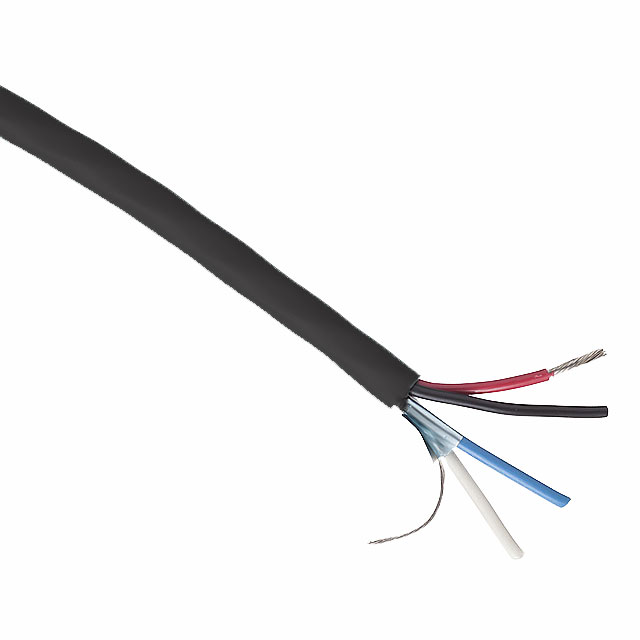

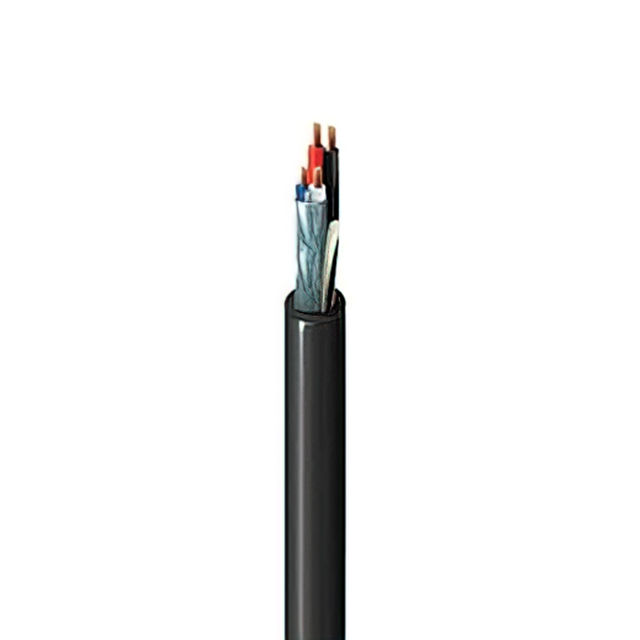

1502R Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #18 PVC +2 FS #22 FHDPEFRPVC
| Part | Shield Coverage | Shield Material | Conductor Material | Jacket Color | Cable Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Wire Gauge | Voltage | Number of Conductors | Ratings | Conductor Insulation | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester Copper Tinned | Copper Tinned | Aqua | Multi-Pair | Control | 30 AWG | 7 16 | 152.4 m | 500 ft | 18 AWG 22 AWG | 300 VDC | 4 | UL Style CMG | Foam Polyethylene (FPE) | Drain Wire Rip Cord | 0.991 mm | 0.039 " | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) | Foil | |||
 Belden Inc. | 100 % | Aluminum | Copper Tinned | Black | Multi-Pair | 7 16 | 15.24 m 152.4 m | 50 ft 500 ft | 18 AWG 22 AWG | 4 | Foam High Density Polyethylene (FHDPE) Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) | Foil | 30 AWG | 100 ft | 30.5 m | ||||||
Belden Inc. | 100 % | Aluminum Polyester Copper Tinned | Copper Tinned | Aqua | Multi-Pair | Control | 30 AWG | 7 16 | 304.8 m | 1000 ft | 18 AWG 22 AWG | 300 VDC | 4 | UL Style CMG | Foam Polyethylene (FPE) | Drain Wire Rip Cord | 0.991 mm | 0.039 " | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) | Foil | |||
 Belden Inc. | 100 % | Aluminum Polyester Copper Tinned | Copper Tinned | Black | Multi-Pair | Control | 30 AWG | 7 16 | 3048 m | 10000 ft | 18 AWG 22 AWG | 300 VDC | 4 | UL Style CMG | Foam Polyethylene (FPE) | Drain Wire Rip Cord | 0.991 mm | 0.039 " | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) | Foil | |||
 Belden Inc. | 100 % | Aluminum Polyester Copper Tinned | Copper Tinned | White | Multi-Pair | Control | 30 AWG | 7 16 | 304.8 m | 1000 ft | 18 AWG 22 AWG | 300 VDC | 4 | UL Style CMG | Foam Polyethylene (FPE) | Drain Wire Rip Cord | 0.991 mm | 0.039 " | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) Riser | Foil | |||
Belden Inc. | 100 % | Aluminum Polyester Copper Tinned | Copper Tinned | Black | Multi-Pair | Control | 30 AWG | 7 16 | 304.8 m | 1000 ft | 18 AWG 22 AWG | 300 VDC | 4 | UL Style CMG | Foam Polyethylene (FPE) | Drain Wire Rip Cord | 0.991 mm | 0.039 " | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) | Foil |
