QBLP661 Series

Catalog

LED BLUE CLEAR 0603 SMD

Part	Millicandela Rating	Package / Case	Package / Case	Color	Current - Test	Mounting Type	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lens Size [x]	Lens Size [y]	Wavelength - Dominant	Lens Transparency	Viewing Angle	Lens Color	Configuration

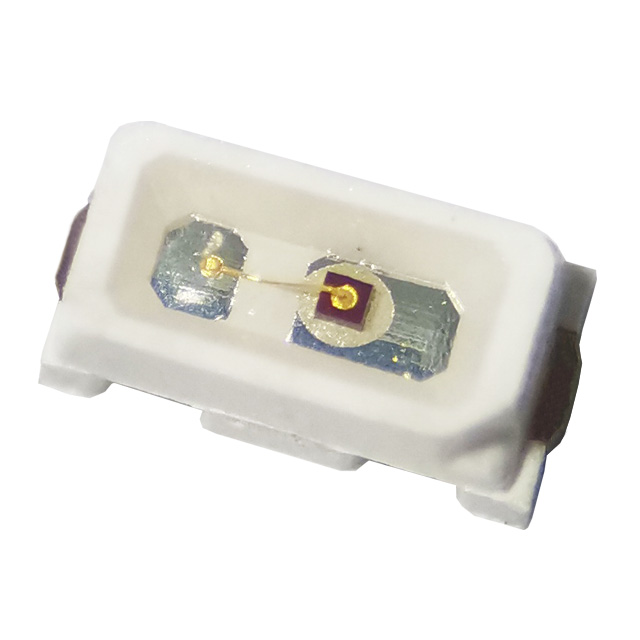

QT Brightek (QTB) QBLP661-IB5	70 mcd	1608 Metric	0603	Blue	5 mA	Surface Mount	Rectangle with Flat Top	1.55 mm	0.8 mm	3.2 V	1.25 mm	0.6 mm	465 nm	Clear	120 °	Colorless	Standard

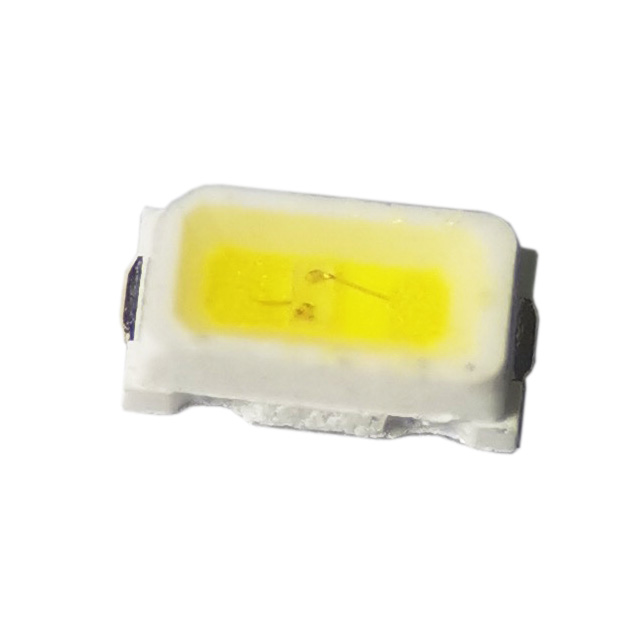

QT Brightek (QTB) QBLP661-IW5-CW	350 mcd	1608 Metric	0603	Cool White	5 mA	Surface Mount	Rectangle with Flat Top	1.55 mm	0.8 mm	2.8 V	1.25 mm	0.6 mm	11000 K	Diffused	120 °	Yellow	Standard
QT Brightek (QTB) QBLP661-O	200 mcd	1608 Metric	0603		20 mA	Surface Mount	Rectangle with Flat Top	1.55 mm	0.8 mm	2 V	1.25 mm	0.6 mm	605 nm	Clear	120 °	Colorless	Standard
QT Brightek (QTB) QBLP661-IG5	500 mcd	1608 Metric	0603	Green	5 mA	Surface Mount	Rectangle with Flat Top	1.55 mm	0.8 mm	3.2 V	1.25 mm	0.6 mm	520 nm	Clear	120 °	Colorless	Standard
QT Brightek (QTB) QBLP661-Y	250 mcd	1608 Metric	0603	Yellow	20 mA	Surface Mount	Rectangle with Flat Top	1.55 mm	0.8 mm	2 V	1.25 mm	0.6 mm	590 nm	Clear	120 °	Colorless	Standard
QT Brightek (QTB) QBLP661-R5	60 mcd	1608 Metric	0603	Red	5 mA	Surface Mount	Rectangle with Flat Top	1.55 mm	0.8 mm	1.8 V	1.25 mm	0.6 mm	620 nm	Clear	120 °	Colorless	Standard
