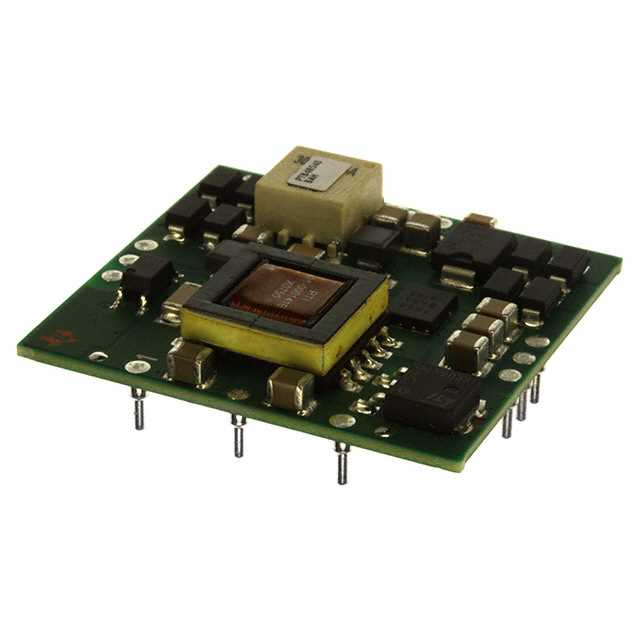

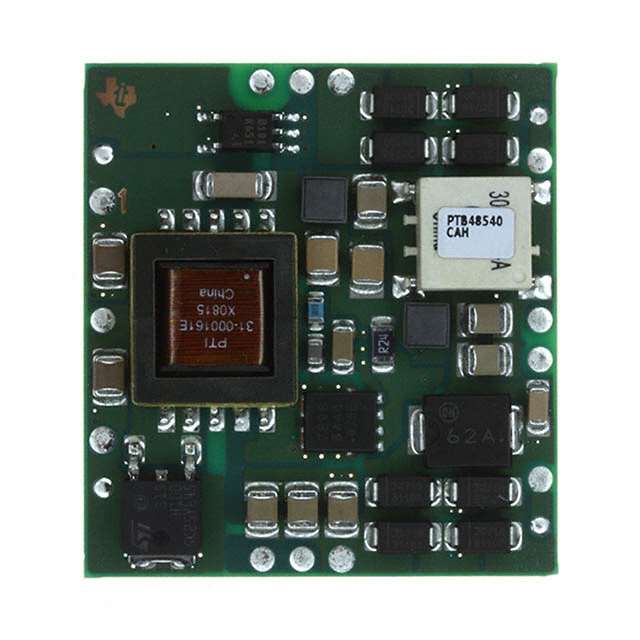

3.3 V, 10-W Power-Over-Ethernet Power Module
Key Features
• Input Voltage Range:36 V to 57 V10 W OutputIEEE Std. 802.3af Compliant (for PoE-PD Interface)85% EfficiencyLow Profile (9 mm)Output Voltage Trim/AdjustUnder-Voltage LockoutInput Transient SuppressorInternal EMI FilterMeets FCC Class B Radiated & Class A ConductedOutput Inhibit ControlShort Circuit ProtectionOver Temperature Shutdown1500 VDC IsolationSafety Approvals (Pending):UL 60950, cUL 60950, EN60950Input Voltage Range:36 V to 57 V10 W OutputIEEE Std. 802.3af Compliant (for PoE-PD Interface)85% EfficiencyLow Profile (9 mm)Output Voltage Trim/AdjustUnder-Voltage LockoutInput Transient SuppressorInternal EMI FilterMeets FCC Class B Radiated & Class A ConductedOutput Inhibit ControlShort Circuit ProtectionOver Temperature Shutdown1500 VDC IsolationSafety Approvals (Pending):UL 60950, cUL 60950, EN60950
Description
AI
The PTB48540 series of power modules is specifically designed to provide an isolated, low-voltage power source to a remote Powered Device (PD) in Power-Over-Ethernet (PoE) applications. These modules are rated 10 W and incorporate all the necessary interface requirements to comply with IEEE Std. 802.3af, for managing the input power to the PD from the PoE Power Sourcing Equipment (PSE). This includes PD detection and PD classification current signatures required for the PSE. The modules are compatible with PD classifications, class 0 through class 3.
In addition to a fully integrated DC/DC converter, each PTB48540 power module incorporates internal input diode bridges to support both Data Line and Spare Line pair standard Ethernet connections, an integral transient suppressor for input over-voltage protection, and an EMI filter to ensure noise compatibility with Ethernet data signals.
Other features include an input undervoltage lockout (UVLO), over-current and short-circuit protection, an output voltage adjust/trim, and over-temperature protection. An "Output Inhibit" control allows the output voltage to be turned off to support an idle condition or power saving mode. The output voltage options are for 3.3-V, 5-V, or 12-V output. The target applications are small low-power remote IP appliances, such as security card readers and cameras, test dongles, and IP phone consoles.
The PTB48540 series of power modules is specifically designed to provide an isolated, low-voltage power source to a remote Powered Device (PD) in Power-Over-Ethernet (PoE) applications. These modules are rated 10 W and incorporate all the necessary interface requirements to comply with IEEE Std. 802.3af, for managing the input power to the PD from the PoE Power Sourcing Equipment (PSE). This includes PD detection and PD classification current signatures required for the PSE. The modules are compatible with PD classifications, class 0 through class 3.
In addition to a fully integrated DC/DC converter, each PTB48540 power module incorporates internal input diode bridges to support both Data Line and Spare Line pair standard Ethernet connections, an integral transient suppressor for input over-voltage protection, and an EMI filter to ensure noise compatibility with Ethernet data signals.
Other features include an input undervoltage lockout (UVLO), over-current and short-circuit protection, an output voltage adjust/trim, and over-temperature protection. An "Output Inhibit" control allows the output voltage to be turned off to support an idle condition or power saving mode. The output voltage options are for 3.3-V, 5-V, or 12-V output. The target applications are small low-power remote IP appliances, such as security card readers and cameras, test dongles, and IP phone consoles.
