ADC Series

Manufacturer: Adam Tech

Catalog

DC POWER CONNECTORS DC POWER JACK, WATERPROOF

Part	Body Color	Contact Material	Housing Material	Contact Material - Plating	Current Rating (Amps)	Ingress Protection	Mating Length/Depth	Mating Length/Depth	Termination	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Voltage - Rated	Gender	Internal Switch(s)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Color	Mounting Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Material Flammability Rating	Shielding

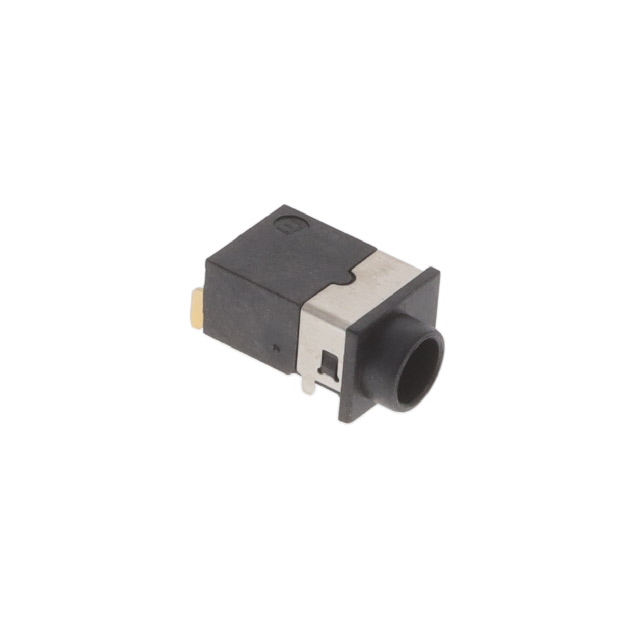

Adam Tech ADC-114B-4-WP-HT-T/R	Black	Copper Alloy	Thermoplastic	Gold	3.5 A	IPX7 - Waterproof	0.374 in	9.5 mm	Solder	Jack	2	3	0.051 in 0.15 in	1.3 mm 3.8 mm	16 V	Male	Single Switch Normally Closed	-20 ░C	70 °C	Board Guide Solder Retention	Black	Right Angle Through Hole	0.051 " 0.138 in	1.3 mm 3.5 mm	UL94 V-0	Shielded
Adam Tech ADC-096-9-T/R					4 A				Solder	Jack	2	2	0.065 in 0.209 in	1.65 mm 5.3 mm	20 V	Male		-20 ░C	70 °C	Board Guide	Black	Right Angle Through Hole	0.065 " 0.217 in	1.65 mm 5.5 mm	UL94 V-0	Shielded

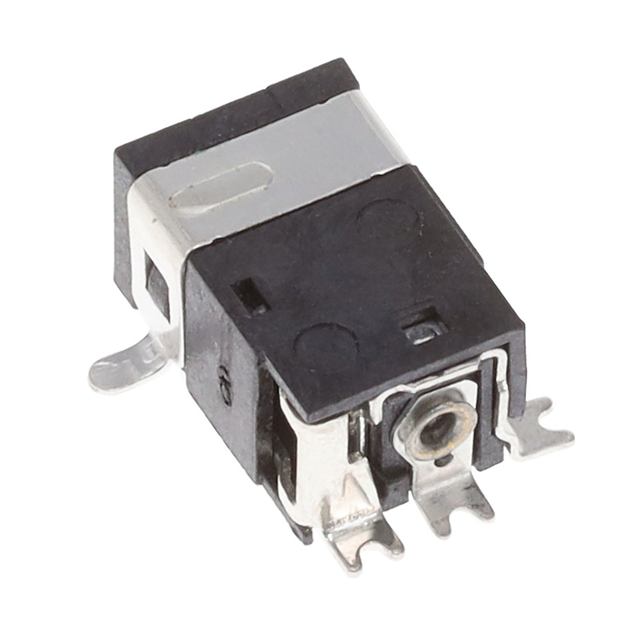

Adam Tech ADC-037-3-T/R	Black	Copper Alloy	Thermoplastic	Silver	1 A				Solder	Jack	2	3	0.039 in 0.146 in	1 mm 3.7 mm	12 VDC	Male	Single Switch Normally Closed	-20 ░C	70 °C	Board Guide Solder Retention	Black	Right Angle Surface Mount	0.039 " 0.138 in	1 mm 3.5 mm	UL94 V-0	Unshielded

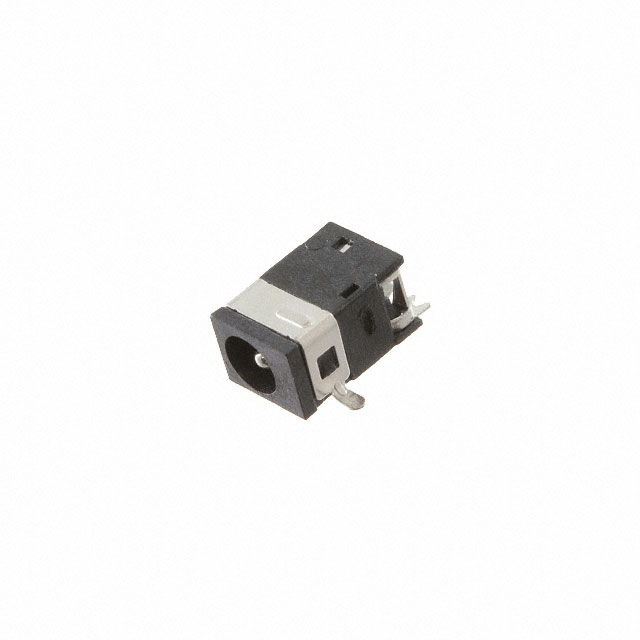

Adam Tech ADC-037-4-T/R	Black	Copper Alloy	Thermoplastic	Silver	1 A				Solder	Jack	2	3	0.051 in 0.146 in	1.3 mm 3.7 mm	12 VDC	Male	Single Switch Normally Closed	-20 ░C	70 °C	Board Guide Solder Retention	Black	Right Angle Surface Mount	0.051 " 0.138 in	1.3 mm 3.5 mm	UL94 V-0	Unshielded
