F0603 Series
Manufacturer: OptiFuse
Beta
⌘K

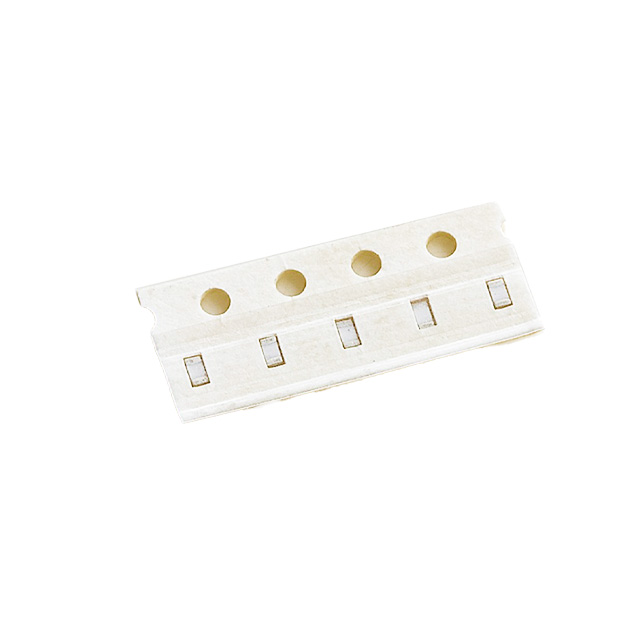

FUSE BRD MNT 5A 32VAC 32VDC 0603
| Part | Melting I²t | DC Cold Resistance | Voltage Rating - AC | Fuse Type | Voltage Rating - DC | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Response Time | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Current Rating (Amps) | Approval Agency | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | 1.1 | 10.5 mOhms | 32 V | Board Mount (Cartridge Style Excluded) | 32 V | 1608 Metric | 0603 | 90 °C | -55 C | Fast Blow | 0.019 " | 0.034 in | 0.063 " | 0.86 mm | 0.48 mm | 1.6 mm | Surface Mount | 5 A | UL 248 | 35 A |
