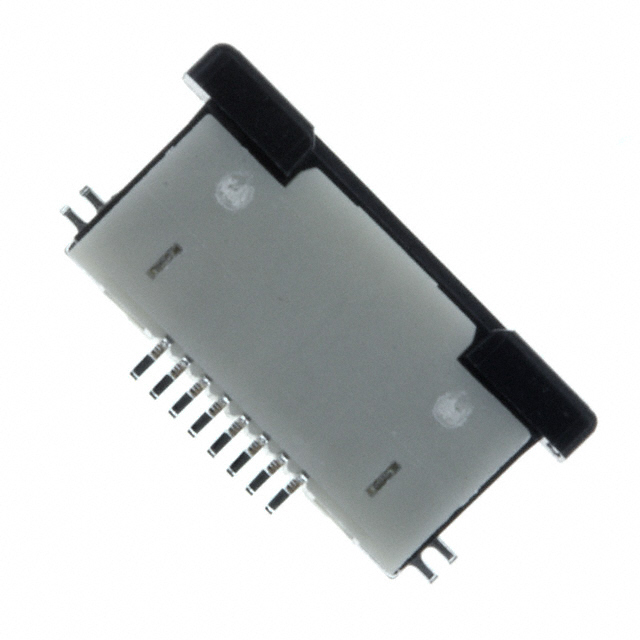

08FLZ-SM Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN FFC FPC TOP 8POS 0.5MM R/A
| Part | Current Rating (Amps) | Actuator Color | Housing Color | Contact Material | Contact Finish | Cable End Type | Material Flammability Rating | Voltage Rating | Locking Feature | Pitch | Pitch | Number of Positions | FFC, FCB Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material | Termination | Connector/Contact Type | Housing Material | Height Above Board | Height Above Board | Features | Mounting Type | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.5 A | Black | Gray | Phosphor Bronze | Tin | Tapered | UL94 V-0 | 50 V | Slide Lock | 0.02 " | 0.5 mm | 8 | 0.3 mm | 85 °C | -25 °C | Polyamide (PA6T) Nylon 6T | Solder | Contacts Top | Nylon 6T Polyamide (PA6T) | 2 mm | 0.079 in | Solder Retention Zero Insertion Force (ZIF) | Right Angle Surface Mount | FFC FPC |
