CHM-11 Series

Catalog

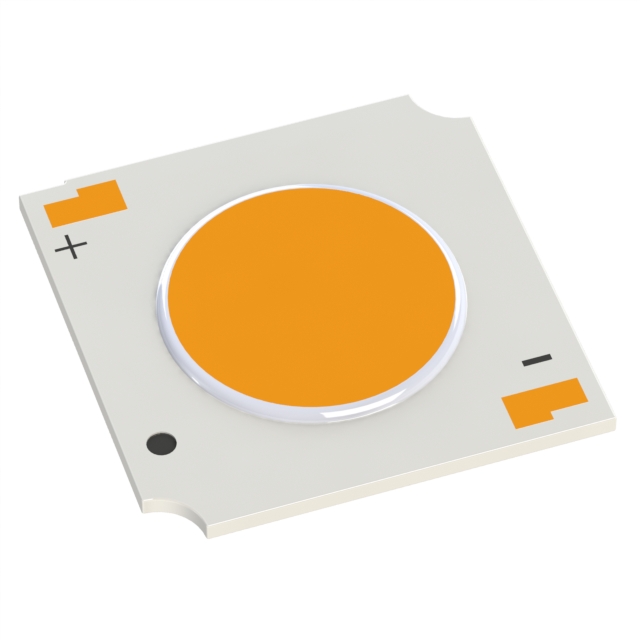

WHITE LEDS WHITE 2700 K 90-CRI, CHM-11 SERIES

Part	CRI (Color Rendering Index)	Color	Lens Type	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Current - Max [Max]	Configuration	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lumens/Watt @ Current - Test	CCT (K)	CCT (K)	Temperature - Test	Type	Voltage - Forward (Vf) (Typ)	Current - Test	Height [z]
Luminus Devices Inc. CHM-11-27-90-36-XH20-F3-3	90	Warm White	Flat	11 mm	3855 lm	1.575 A	Square	19 mm	19 mm	120 °	99 lm/W	2700 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	37.2 V	1.05 A	1.37 mm
Luminus Devices Inc. CHM-11-50-80-36-XH20-F3-5	80	Cool White	Flat	11 mm	5190 lm	1.575 A	Square	19 mm	19 mm	120 °	133 lm/W	5000 K	5-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	37.2 V	1.05 A	1.37 mm
Luminus Devices Inc. CHM-11-40-95-36-XH00-F2-3	95	Neutral White	Flat	13.46 mm		1.44 A	Square	15.01 mm	15.01 mm	120 °		4000 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	36 V	960 mA	1.37 mm
Luminus Devices Inc. CHM-11-35-95-36-XH00-F2-3	95	Warm White	Flat	11 mm	2705 lm	1.44 A	Square	19 mm	19 mm	120 °	78 lm/W	3500 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	36 V	960 mA	1.37 mm
Luminus Devices Inc. CHM-11-30-80-36-XH00-F2-3	80	Warm White	Flat	11 mm	3485 lm	1.44 A	Square	19 mm	19 mm	120 °	101 lm/W	3000 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	36 V	960 mA	1.37 mm
Luminus Devices Inc. CHM-11-27-90-36-XH00-F2-3	90	Warm White	Flat	11 mm	2575 lm	1.44 A	Square	19 mm	19 mm	120 °	75 lm/W	2700 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	36 V	960 mA	1.37 mm
Luminus Devices Inc. CHM-11-30-90-36-XH20-F3-3	90	Warm White	Flat	11 mm	4155 lm	1.575 A	Square	19 mm	19 mm	120 °	107 lm/W	3000 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	37.2 V	1.05 A	1.37 mm
Luminus Devices Inc. CHM-11-50-80-36-XH20-F3-3	80	Cool White	Flat	11 mm	5190 lm	1.575 A	Square	19 mm	19 mm	120 °	133 lm/W	5000 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	37.2 V	1.05 A	1.37 mm
Luminus Devices Inc. CHM-11-65-70-36-XH20-F3-3	70	Cool White	Flat	11 mm	5625 lm	1.575 A	Square	19 mm	19 mm	120 °	144 lm/W	6500 K		85 °C	Chip On Board (COB)	37.2 V	1.05 A	1.37 mm
Luminus Devices Inc. CHM-11-40-80-36-XH20-F3-3	80	Neutral White	Flat	11 mm	5155 lm	1.575 A	Square	19 mm	19 mm	120 °	132 lm/W	4000 K	3-Step MacAdam Ellipse	85 °C	Chip On Board (COB)	37.2 V	1.05 A	1.37 mm
