R19173 Series

Catalog

HN MALE - N FEMALE STRAIGHT ADAP

Part	Dielectric Material	Center Contact Material	Body Finish	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Adapter Series	Convert From (Adapter End)	Frequency - Max [Max]	Adapter Type	Mounting Type	Style	Conversion Type	Convert To (Adapter End)	Center Contact Plating	Mating Cycles

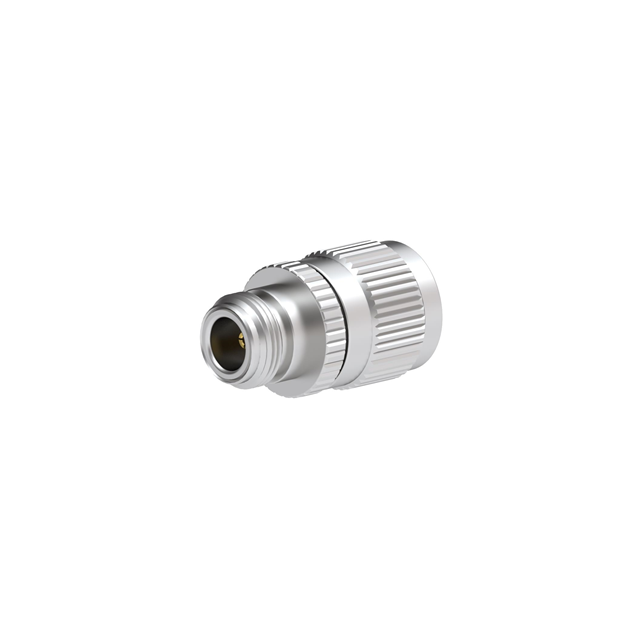

Radiall USA, Inc. R191737000	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Nickel	Brass	155 C	-55 C	50 Ohms	N to HN	Female Socket N Jack	3 GHz	Plug to Jack	Free Hanging (In-Line)	Straight	Between Series	HN Plug Male Pin	Gold

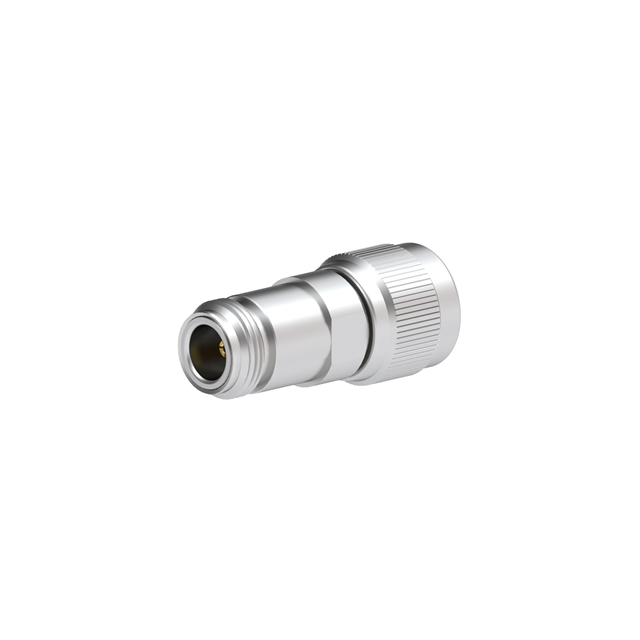

Radiall USA, Inc. R191733000	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Nickel	Brass	155 C	-55 C	50 Ohms	N to UHF	Female Socket N Jack	500 MHz	Plug to Jack	Free Hanging (In-Line)	Straight	Between Series	UHF Plug Male Pin	Gold	500

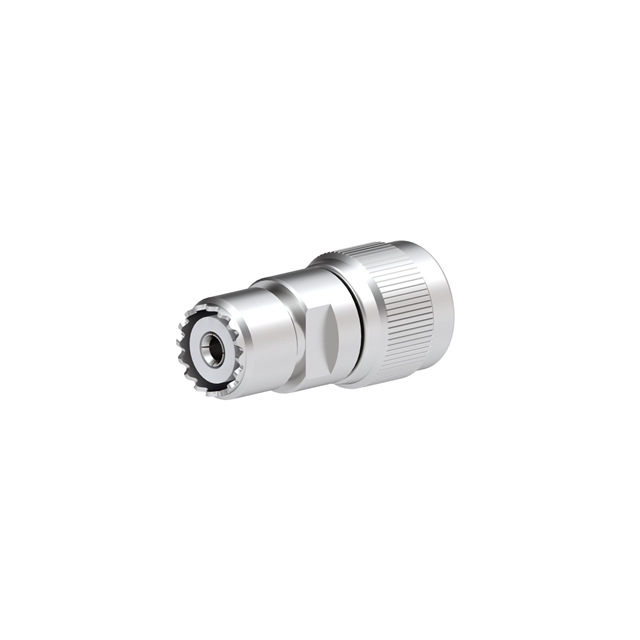

Radiall USA, Inc. R191731000	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	155 C	-55 C	50 Ohms	N to UHF	N Plug Male Pin	500 MHz	Plug to Jack	Free Hanging (In-Line)	Straight	Between Series	UHF Jack Female Socket	Silver	500
