282860 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

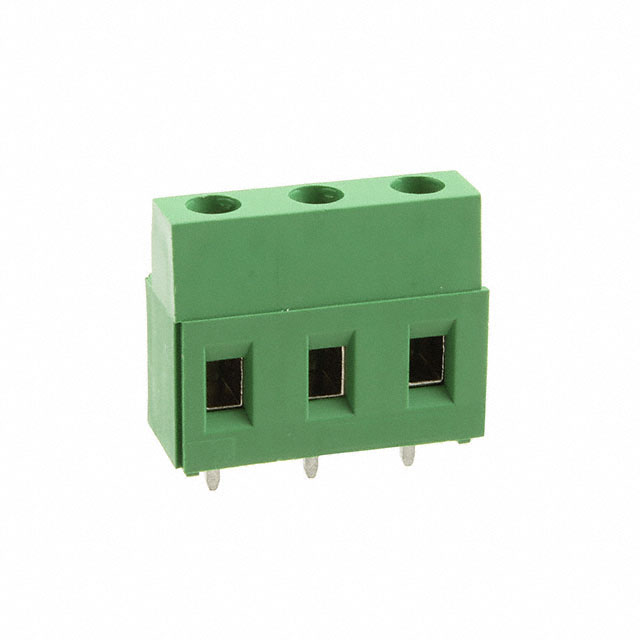

TERM BLK 3POS SIDE ENT 7.5MM PCB
| Part | Mounting Type | Color | Screw Material - Plating | Features | Positions Per Level | Wire Termination | Number of Levels | Contact Material - Plating [custom] | Wire Gauge [Max] | Wire Gauge [Min] | Current | Mating Orientation | Torque - Screw | Torque - Screw | Voltage | Clamp Material - Plating | Screw Thread | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole | Green | Brass - Nickel Plated | Interlocking (Side) | 3 | Screw - Rising Cage Clamp | 1 | Brass - Tin Plated | 30 AWG | 12 AWG | 24 A | Horizontal with Board | 0.79 Nm | 7 Lb-In | 300 V | Brass - Nickel Plated | M3 | 0.295 in | 7.5 mm |
