ACPSC04 Series
Manufacturer: Kingbright
Beta
⌘K

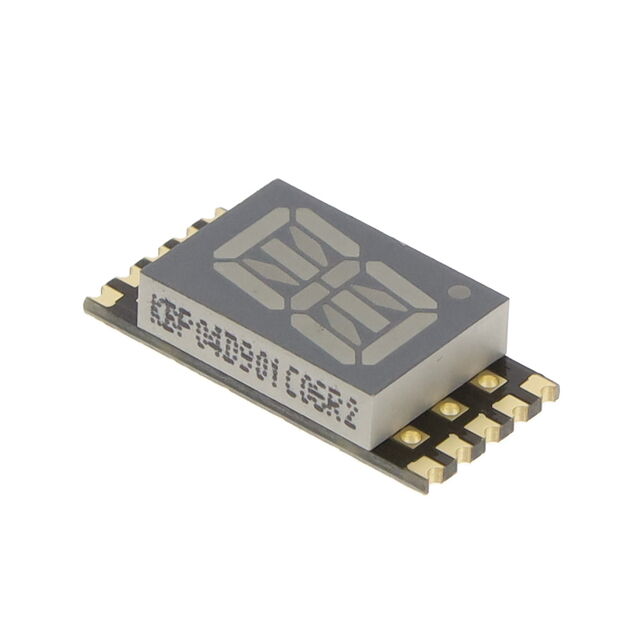

DISPLAY 14SEG 0.4" SGL RED 16SMD
| Part | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Number of Characters | Wavelength - Peak | Current - Test | Voltage - Forward (Vf) (Typ) | Display Type | Common Pin | Power Dissipation (Max) [Max] | Millicandela Rating | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 16-SMD No Lead | 10.16 mm | 0.4 in | 0.366 in | 13 mm | 0.148 in | 9.3 mm | 0.512 in | 3.75 mm | 1 | 650 nm | 20 mA | 1.95 V | 14-Segment Alphanumeric | Common Cathode | 75 mw | 36 mcd | Red | |
 Kingbright | 16-SMD No Lead | 10.16 mm | 0.4 in | 0.366 in | 13 mm | 0.148 in | 9.3 mm | 0.512 in | 3.75 mm | 1 | 610 nm | 20 mA | 2.1 V | 14-Segment Alphanumeric | Common Cathode | 75 mw | 44 mcd | ||
 Kingbright | 16-SMD No Lead | 10.16 mm | 0.4 in | 0.366 in | 13 mm | 0.148 in | 9.3 mm | 0.512 in | 3.75 mm | 1 | 660 nm | 20 mA | 1.85 V | 14-Segment Alphanumeric | Common Cathode | 75 mw | 15 mcd | Red | |
Kingbright | 16-SMD No Lead | 10.16 mm | 0.4 in | 0.366 in | 13 mm | 0.148 in | 9.3 mm | 0.512 in | 3.75 mm | 1 | 590 nm | 20 mA | 2 V | 14-Segment Alphanumeric | Common Cathode | 75 mw | 46 mcd | Yellow | |

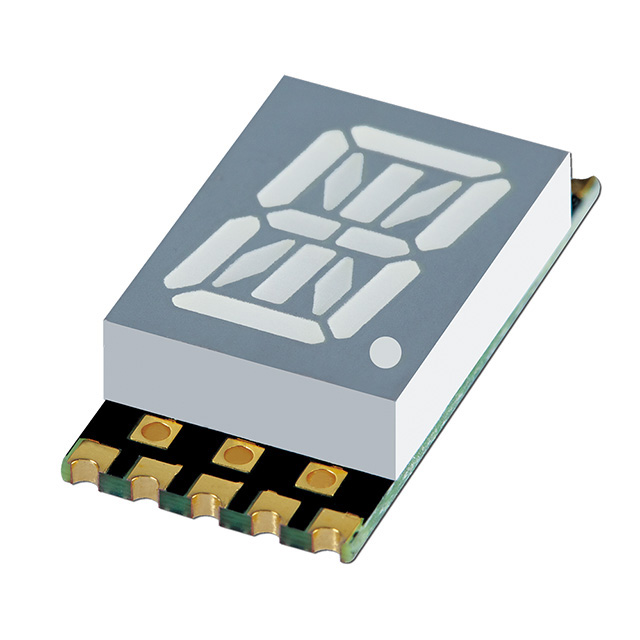

 Kingbright | 16-SMD No Lead | 10.16 mm | 0.4 in | 0.362 " | 0.512 " | 0.148 in | 1 | 20 mA | 2.1 V | 14-Segment Alphanumeric | Common Cathode | 75 mw | 11 mcd | Green | 3.75 mm 9.2 mm 13 mm |
