317-048 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 48POS 0.156
| Part | Material - Insulation | Gender | Color | Termination | Number of Positions | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Material | Pitch | Pitch | Contact Type | Number of Positions/Bay/Row | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

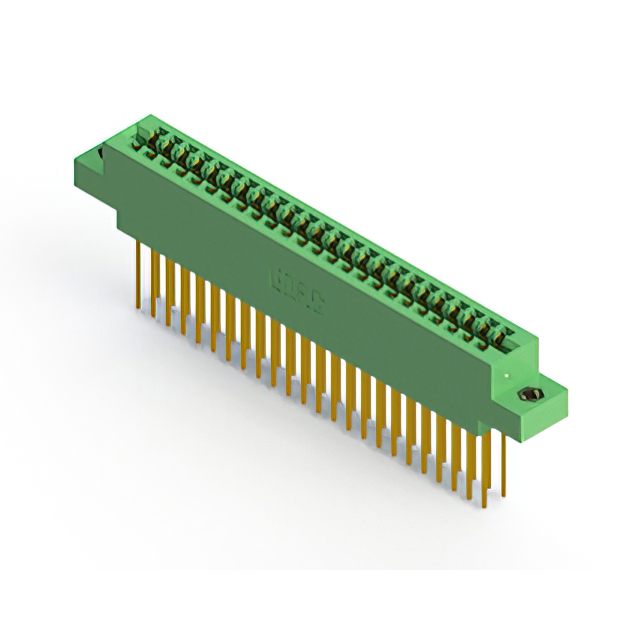

 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Green | Wire Wrap | 48 | Dual | Through Hole | 0.25 Ám | 10 Áin | 2 | -65 ░C | 125 °C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | 24 | M3 Threaded Insert Top Mount Opening |

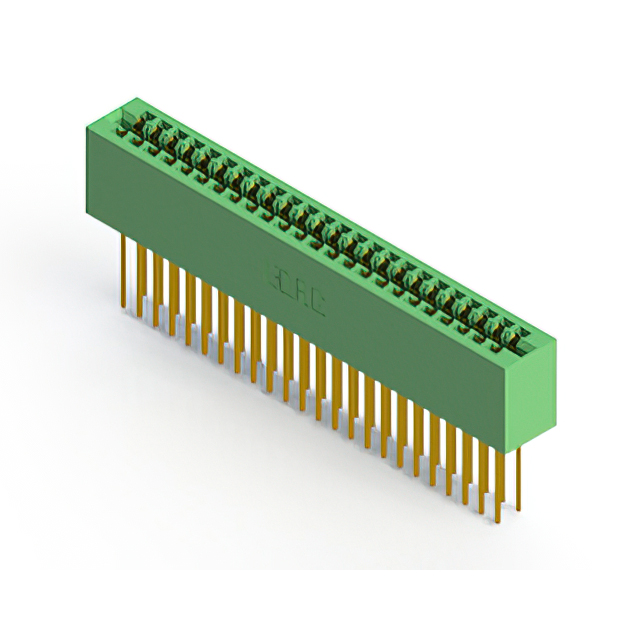

EDAC Inc. | Diallyl Phthalate (DAP) | Female | Green | Wire Wrap | 48 | Dual | Through Hole | 0.25 Ám | 10 Áin | 2 | -65 ░C | 125 °C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | 24 | |

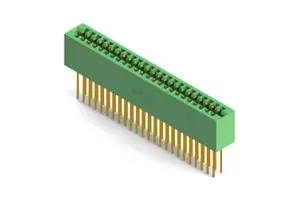

 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Green | Wire Wrap | 48 | Dual | Through Hole | 0.25 Ám | 10 Áin | 2 | -65 ░C | 125 °C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | 24 | |
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Green | Wire Wrap | 48 | Dual | Through Hole | 0.25 Ám | 10 Áin | 2 | -65 ░C | 125 °C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | 24 | 4-40 Threaded Insert Top Mount Opening |
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | Green | Wire Wrap | 48 | Dual | Through Hole | 0.25 Ám | 10 Áin | 2 | -65 ░C | 125 °C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | 0.156 in | Cantilever | 24 | 4-40 Threaded Insert Top Mount Opening |
