RT9193 Series

Catalog

IC REG LINEAR 1.6V 300MA SOT23-5

Part	Package / Case	Current - Quiescent (Iq)	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Mounting Type	PSRR [Max]	PSRR [Min]	Voltage - Output (Min/Fixed)	Control Features	Output Configuration	Voltage - Input (Max) [Max]	Supplier Device Package	Protection Features	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Package / Case

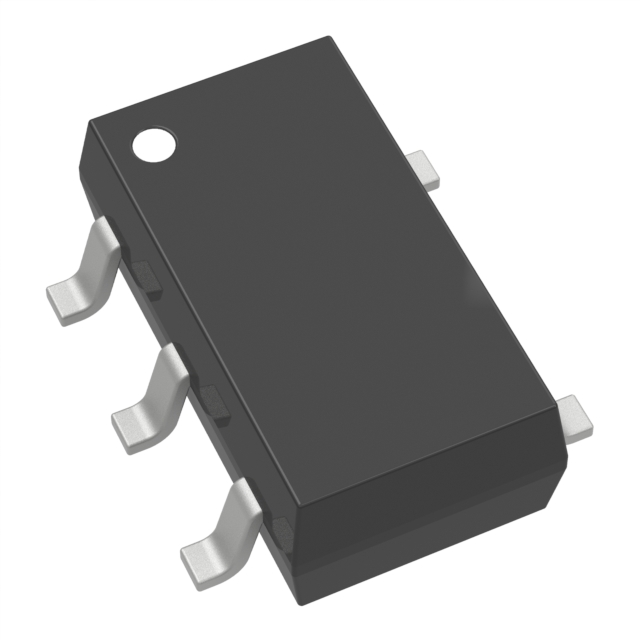

Richtek USA Inc. RT9193-16GB	SC-74A SOT-753	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	1.6 V	Enable	Positive	5.5 V	SOT-23-5	Over Current Over Temperature
Richtek USA Inc. RT9193-18GU5	5-TSSOP SC-70-5 SOT-353	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	1.8 V	Enable	Positive	5.5 V	SC-70-5	Over Current Over Temperature
Richtek USA Inc. RT9193-30GB	SC-74A SOT-753	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	3 V	Enable	Positive	5.5 V	SOT-23-5	Over Current Over Temperature	0.3 V
Richtek USA Inc. RT9193-29GB	SC-74A SOT-753	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB		Enable	Positive	5.5 V	SOT-23-5	Over Current Over Temperature	0.3 V	2.9 V
Richtek USA Inc. RT9193-33GQW		130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	3.3 V	Enable	Positive	5.5 V	6-WDFN (2x2)	Over Current Over Temperature	0.3 V
Richtek USA Inc. RT9193-2HGU5	5-TSSOP SC-70-5 SOT-353	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	2.85 V	Enable	Positive	5.5 V	SC-70-5	Over Current Over Temperature	0.3 V
Richtek USA Inc. RT9193-25GJ5	SOT-23-5 Thin TSOT-23-5	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	2.5 V	Enable	Positive	5.5 V	TSOT-23-5	Over Current Over Temperature

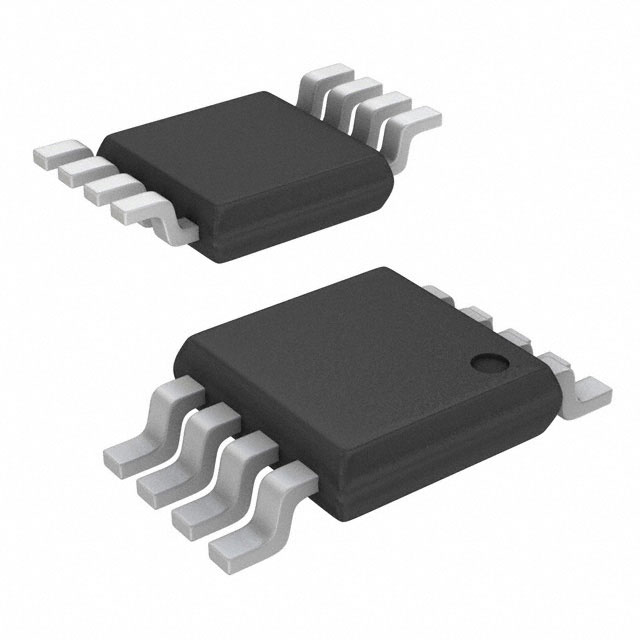

Richtek USA Inc. RT9193-30GF	8-MSOP 8-TSSOP	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	3 V	Enable	Positive	5.5 V	8-MSOP	Over Current Over Temperature	0.3 V		0.118 in 3 mm Width
Richtek USA Inc. RT9193-30GU5	5-TSSOP SC-70-5 SOT-353	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	3 V	Enable	Positive	5.5 V	SC-70-5	Over Current Over Temperature	0.3 V
Richtek USA Inc. RT9193-31GB	SC-74A SOT-753	130 µA	300 mA	125 °C	-40 C	1	Surface Mount	70 dB	50 dB	3.1 V	Enable	Positive	5.5 V	SOT-23-5	Over Current Over Temperature	0.3 V
