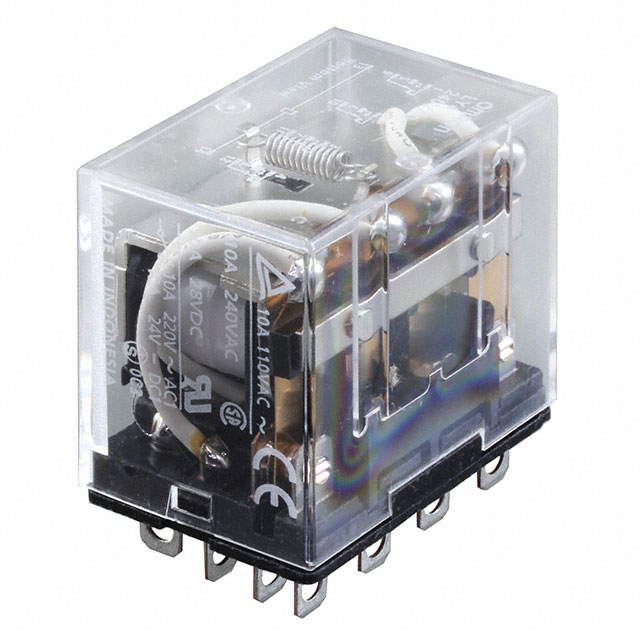

LY4-AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

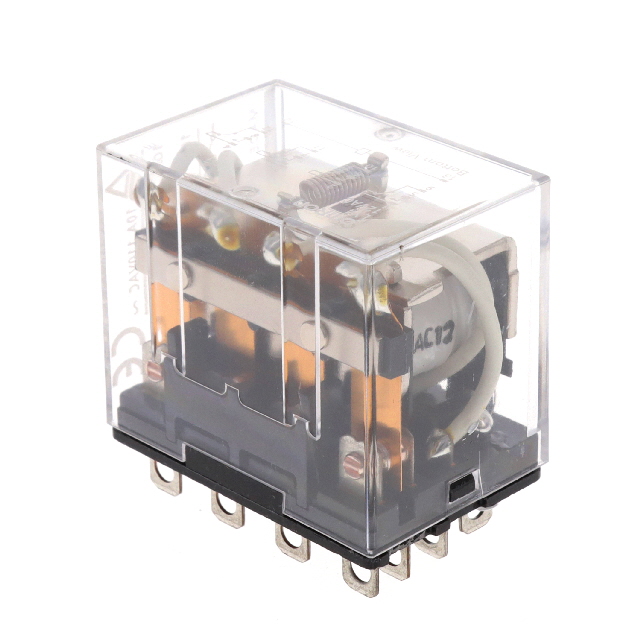

POWER RELAY, ICE CUBE, 4PDT, 12 VAC COIL VOLTAGE, 10 A CONTACT RATING
| Part | Contact Form | Operate Time | Must Release Voltage | Release Time | Coil Voltage | Approval Agency | Coil Type | Termination Style | Load - Max Switching | Coil Current | Contact Material | Switching Voltage | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Mounting Type | Relay Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 4PDT (4 Form C) | 25 ms | 36 VAC | 25 ms | 120 VAC | CE CSA TUV UR | Non Latching | Plug In | 1250 W 2500 VA | 16.4 mA | Silver Alloy | 125 VDC 250 VAC | 96 VAC | -25 °C | 40 °C | 10 A | Socketable | General Purpose | 2.2 kOhms |
 Omron Electronics Inc-EMC Div | 4PDT (4 Form C) | 25 ms | 3.6 VAC | 25 ms | 12 VAC/DC | CE CSA TUV UR | Non Latching | Plug In | 1250 W 2500 VA | 170 mA | Silver Alloy | 125 VDC 250 VAC | 9.6 VAC/DC | -25 °C | 40 °C | 10 A | Socketable | General Purpose | 20 Ohms |
 Omron Electronics Inc-EMC Div | 4PDT (4 Form C) | 25 ms | 72 VAC/DC | 25 ms | 240 VAC | CE CSA TUV UR | Non Latching | Plug In | 1250 W 2500 VA | 9.5 mA | Silver Alloy | 125 VDC 250 VAC | 192 VAC | -25 °C | 40 °C | 10 A | Socketable | General Purpose | 9 kOhms |
