BD5231NVX-2C Series

Nano Energy™, 3.1V, Adjustable Delay Voltage Detector for Automotive

Catalog

Nano Energy™, 3.1V, Adjustable Delay Voltage Detector for Automotive

Part	Type	Supplier Device Package	Reset	Number of Voltages Monitored	Package / Case	Output	Voltage - Threshold	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Qualification	Grade	Reset Timeout [Min]
Rohm Semiconductor BD5231FVE-TR	Voltage Detector	5-VSOF	Active Low	1	SOT-665	Open Drain or Open Collector	3.1 V	105 °C	-40 °C	Surface Mount
Rohm Semiconductor BD5231G-2MTR	Voltage Detector	5-SSOP	Active Low	1	SC-74A SOT-753	Open Drain or Open Collector	3.1 V	105 °C	-40 °C	Surface Mount	AEC-Q100	Automotive

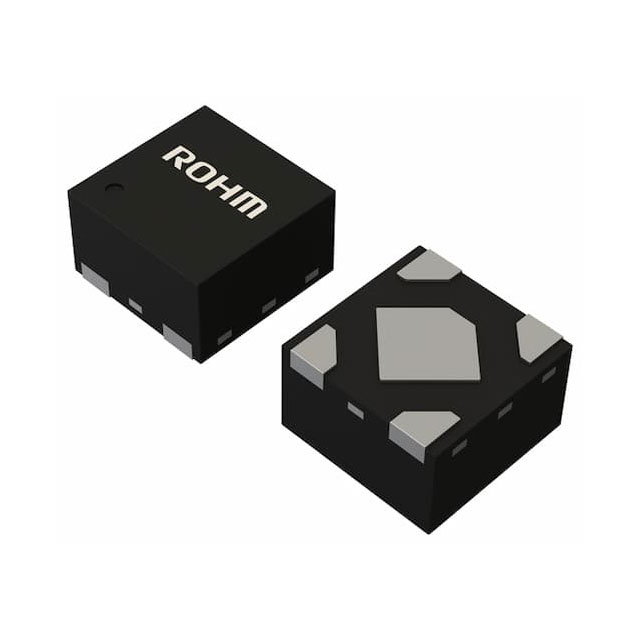

Rohm Semiconductor BD5231NVX-2CTL	Voltage Detector	SSON004R1010	Active Low	1	4-UDFN Exposed Pad	Open Drain or Open Collector	3.1 V	125 °C	-40 °C	Surface Mount	AEC-Q100	Automotive	27.7 ms

Catalog

Nano Energy™, 3.1V, Adjustable Delay Voltage Detector for Automotive

Key Features

• AEC-Q100 Qualified (Grade 1), Nano Energy™, Delay Time Setting controlled by external capacitor, Two output types (Nch open drain and CMOS output), Very small, lightweight and thin package, Package SSOP5 is similar to SOT-23-5 (JEDEC)

Description

BD52xxNVX-2C series, Free Time Delay Setting CMOS Voltage Detector ICs are highly accurate, with ultra-low current consumption feature that uses CMOS process. Delay time setting can be control by an external capacitor. The lineup includes N-channel open drain output. The devices are available for specific detection voltage is 1.4V, 1.6V, ranging from 2.6 V to 3.1 V with 0.1 V increment. The time delay has ±50% accuracy in the overall operating temperature range of -40℃ to 125℃.
