76PSB Series

Catalog

SWITCH PIANO DIP SPST 0.15A 30V

Part	Electrical Life	Mechanical Life	Length	Length	Body Material	Voltage Rating	Termination Style	Contact Material	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Actuator Type	Actuator Level	Pitch	Pitch	Circuit	Features	Length [x]	Length [x]

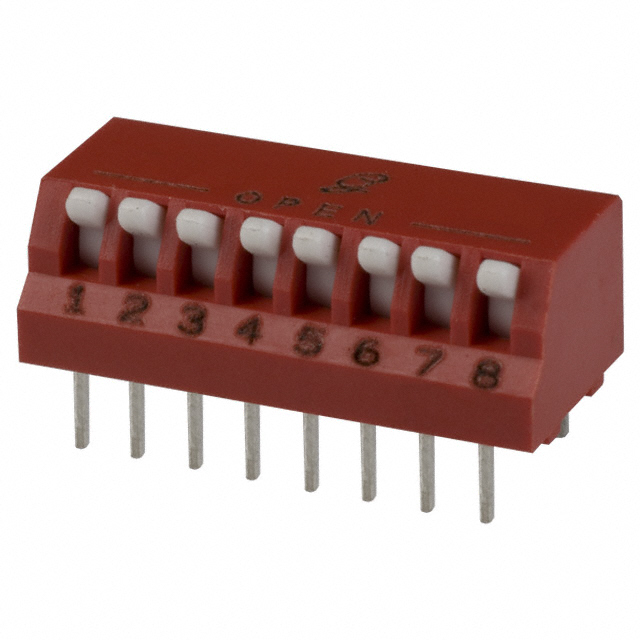

Grayhill Inc. 76PSB08T	2000 Steps	2000 Cycles	0.88 in	22.35 mm	Thermoplastic	30 VDC	PC Pin	Copper Alloy	7.65 mm	0.301 in	Gold	Right Angle Through Hole	85 °C	-40 C	8	Piano	Raised	2.54 mm	0.1 "	SPST

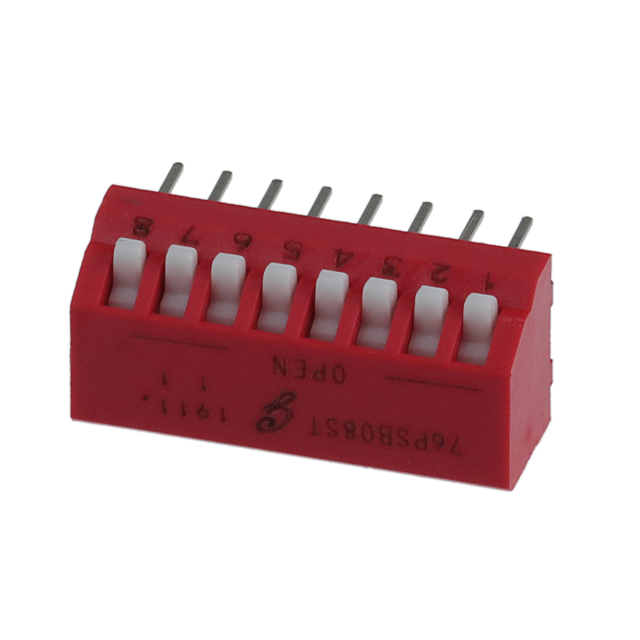

Grayhill Inc. 76PSB08ST	2000 Steps	2000 Cycles	0.88 in	22.35 mm	Thermoplastic	30 VDC	PC Pin	Copper Alloy	7.65 mm	0.301 in	Gold	Right Angle Through Hole	85 °C	-40 C	8	Piano	Raised	2.54 mm	0.1 "	SPST	Tape Seal

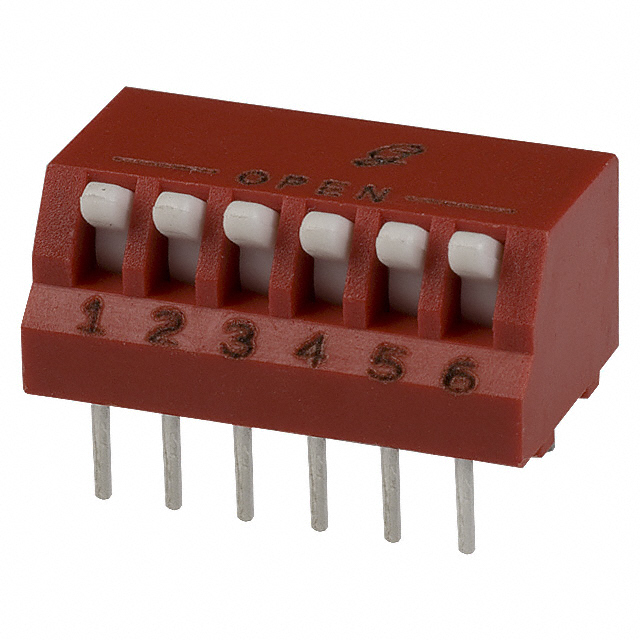

Grayhill Inc. 76PSB06ST	2000 Steps	2000 Cycles			Thermoplastic	30 VDC	PC Pin	Copper Alloy	7.65 mm	0.301 in	Gold	Right Angle Through Hole	85 °C	-40 C	6	Piano	Raised	2.54 mm	0.1 "	SPST	Tape Seal	0.68 in	17.27 mm

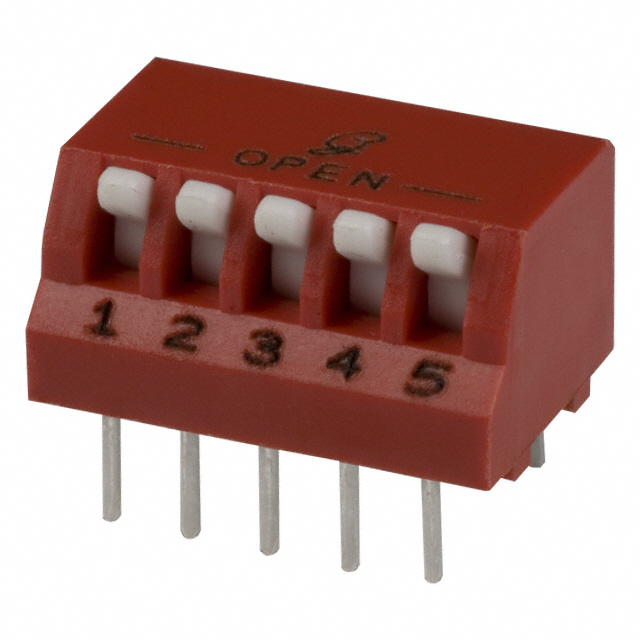

Grayhill Inc. 76PSB05ST	2000 Steps	2000 Cycles			Thermoplastic	30 VDC	PC Pin	Copper Alloy	7.65 mm	0.301 in	Gold	Right Angle Through Hole	85 °C	-40 C	5	Piano	Raised	2.54 mm	0.1 "	SPST	Tape Seal	0.58 in	14.73 mm

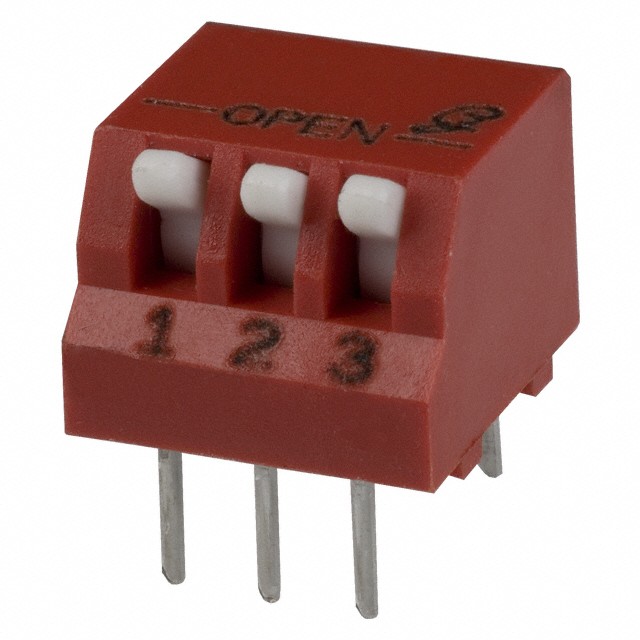

Grayhill Inc. 76PSB03T	2000 Steps	2000 Cycles	0.38 in	9.65 mm	Thermoplastic	30 VDC	PC Pin	Copper Alloy	7.65 mm	0.301 in	Gold	Right Angle Through Hole	85 °C	-40 C		Piano	Raised	2.54 mm	0.1 "	SPST
