AWG28-08 Series

Catalog

CABLE RIBBON 8COND 0.039 MULT

Part	Conductor Material	Insulation Resistance	Spool Size [x]	Spool Size [x]	Length	Pitch	Pitch	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Length	Length	Ribbon Width [custom]	Ribbon Width [custom]	Number of Conductors [custom]	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Voltage	Jacket Color	Ribbon Thickness	Ribbon Thickness	Cable Type	First Conductor Mark
Assmann WSW Components AWG28-08/F-1/300	Copper Tinned	100 MOhms	300 ft	91.44 m	Enter Number of Feet in Order Quantity	1 mm	0.039 in	Unshielded	-10 °C	105 ░C	50 ft	15.24 m	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	8 mm	0.315 in	8	Poly-Vinyl Chloride (PVC)	28 AWG	36 AWG	7 Strands	UL Style 2651	300 VDC	Multiple	0.89 mm	0.035 in	Flat Cable

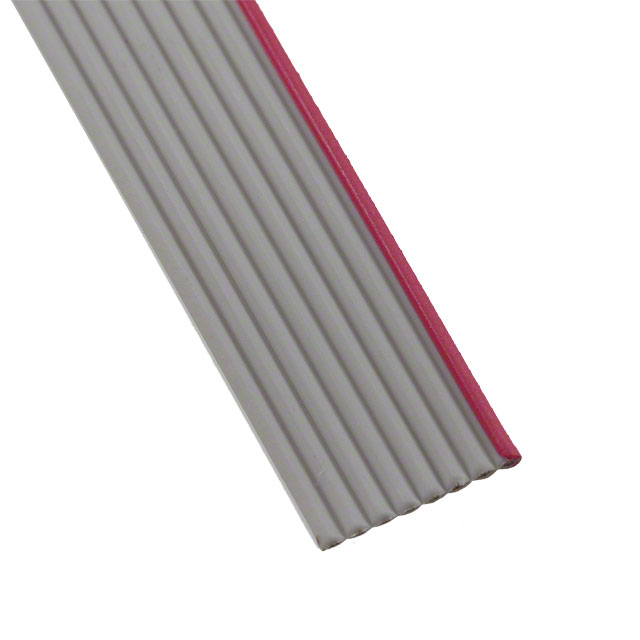

Assmann WSW Components AWG28-08/G-1/300	Copper Tinned	100 MOhms	300 ft	91.44 m	Enter Number of Feet in Order Quantity	1 mm	0.039 in	Unshielded	-10 °C	105 ░C	50 ft	15.24 m	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	8 mm	0.315 in	8	Poly-Vinyl Chloride (PVC)	28 AWG	36 AWG	7 Strands	UL Style 2651	300 VDC	Gray	0.89 mm	0.035 in	Flat Cable	Red
