151212 Series

Manufacturer: 3M (TC)

Catalog

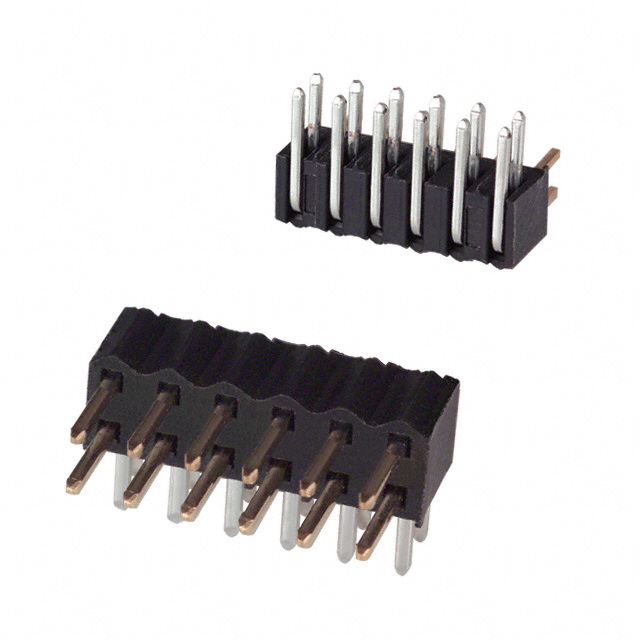

CONN HEADER R/A 12POS 2MM

Part	Style	Number of Positions Loaded	Contact Finish - Post	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Color	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Type	Termination	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Overall Contact Length	Overall Contact Length
3M (TC) 151212-7422-RB	Board to Board Cable	All	Tin	2	3.86 mm	0.152 in	Black	UL94 V-0	200 µin	5.08 µm	0.118 in	3 mm	0.165 in	4.2 mm	Male Pin	Solder	Square	105 ░C	-55 °C	Copper Alloy	Through Hole Right Angle	Gold	Unshrouded	30 Áin	0.76 Ám	Header	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	12
3M (TC) 151212-2420-RB		All	Tin	2	3.86 mm	0.152 in	Black	UL94 V-0	200 µin	5.08 µm			0.06 in	1.52 mm	Male Pin	Solder	Square	105 ░C	-55 °C	Copper Alloy	Surface Mount	Gold	Unshrouded	30 Áin	0.76 Ám	Header	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	12
3M (TC) 151212-8422-RB	Board to Board Cable	All	Tin	2	3.86 mm	0.152 in	Black	UL94 V-0	200 µin	5.08 µm	0.118 in	3 mm	0.06 in	1.52 mm	Male Pin	Solder	Square	105 ░C	-55 °C	Copper Alloy	Through Hole	Gold	Unshrouded	30 Áin	0.76 Ám	Header	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	12	8.36 mm	0.329 in
3M (TC) 151212-7422-TB	Board to Board Cable	All	Tin-Lead	2	3.86 mm	0.152 in	Black	UL94 V-0	200 µin	5.08 µm	0.118 in	3 mm	0.165 in	4.2 mm	Male Pin	Solder	Square	105 ░C	-55 °C	Copper Alloy	Through Hole Right Angle	Gold	Unshrouded	30 Áin	0.76 Ám	Header	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	12
3M (TC) 151212-2420-TH		All	Tin-Lead	2	3.86 mm	0.152 in	Black	UL94 V-0	200 µin	5.08 µm			0.06 in	1.52 mm	Male Pin	Solder	Square	105 ░C	-55 °C	Copper Alloy	Surface Mount	Gold	Unshrouded	15 µin	0.38 µm	Header	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	12
