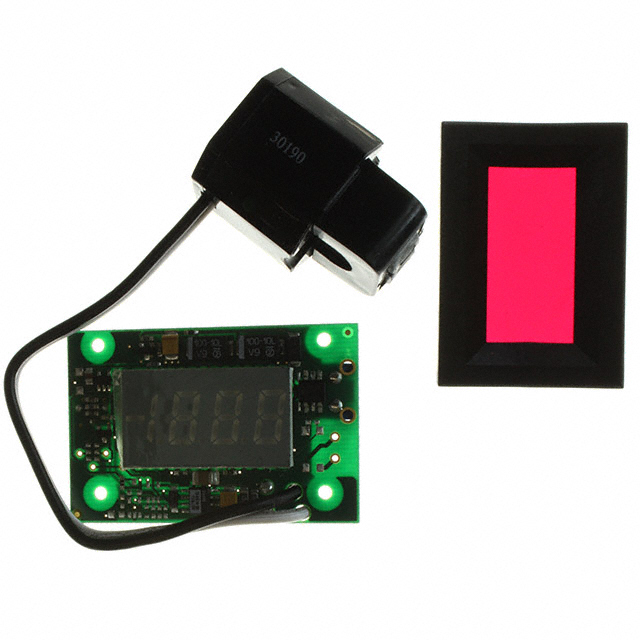

ACA-20RM Series

Catalog

AMMETER 0-50A LED PANEL MOUNT

Part	Number of Characters Per Row [custom]	Mounting Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Display Characters - Height [custom]	Display Characters - Height [custom]	Type	Measuring Range [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Measuring Type	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight
Murata Electronics ACA-20RM-4-AC4-RL-C	3.5	Panel Mount - Bezel	Screw Terminal	170 VAC	264 VAC	LED Red Characters	0.37 in	9.4 mm	Ammeter	50 A	33.93 mm	21.29 mm	Built In Current Transformer (Secondary)	Current
Murata Electronics ACA-20RM-2-AC4-RL-C	3.5	Panel Mount - Bezel	Screw Terminal	170 VAC	264 VAC	LED Red Characters	0.37 in	9.4 mm	Ammeter	19.99 A	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	30.84 g	0.068 lb

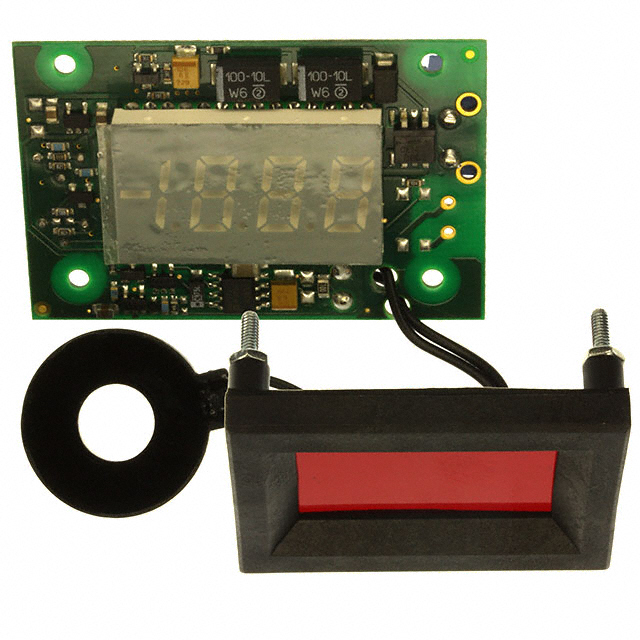

Murata Electronics ACA-20RM-5-AC3-RL-ALM-C	3.5	Panel Mount - Bezel	Screw Terminal	85 VAC/DC	140 VAC/DC	LED Red Characters	0.37 in	9.4 mm	Ammeter	30 A	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	43.09 g	0.095 lb
Murata Electronics ACA-20RM-0-AC4-RL-C	3.5	Panel Mount - Bezel	Screw Terminal	170 VAC	264 VAC	LED Red Characters	0.37 in	9.4 mm	Ammeter	199.9 mA	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	30.84 g	0.068 lb
Murata Electronics ACA-20RM-4-AC4-RL-C	3.5	Panel Mount - Bezel	Screw Terminal	170 VAC	264 VAC	LED Red Characters	0.37 in	9.4 mm	Ammeter	50 A	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	59.42 g	0.131 lb

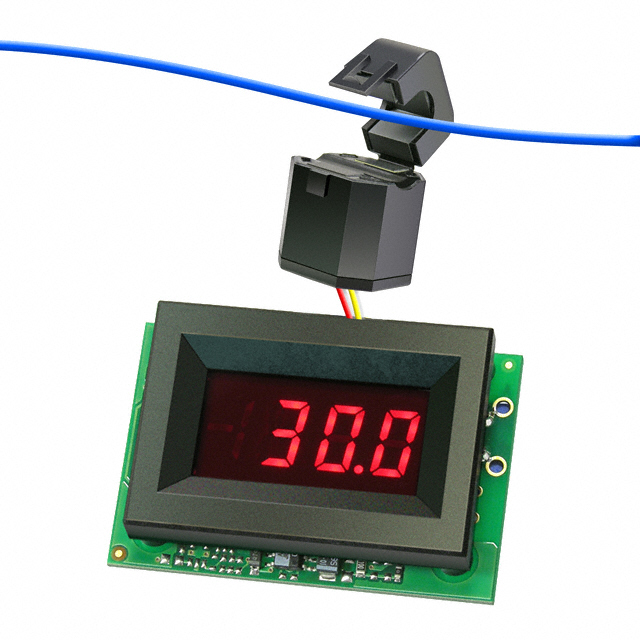

Murata Electronics ACA-20RM-4-AC4-RL-ALM-C	3.5	Panel Mount - Bezel	Screw Terminal	170 VAC	264 VAC	LED Red Characters	0.37 in	9.4 mm	Ammeter	50 A	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	59.42 g	0.131 lb
Murata Electronics ACA-20RM-4-AC3-RL-C	3.5	Panel Mount - Bezel	Screw Terminal	85 VAC/DC	140 VAC/DC	LED Red Characters	0.37 in	9.4 mm	Ammeter	50 A	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	59.42 g	0.131 lb

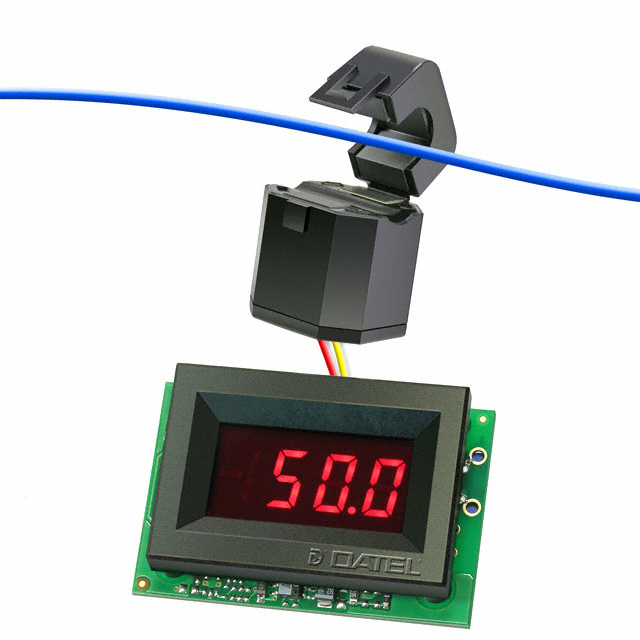

Murata Electronics ACA-20RM-5-AC3-RL-C	3.5	Panel Mount - Bezel	Screw Terminal	85 VAC/DC	140 VAC/DC	LED Red Characters	0.37 in	9.4 mm	Ammeter	30 A	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	43.09 g	0.095 lb
Murata Electronics ACA-20RM-5-AC4-RL-C	3.5	Panel Mount - Bezel	Screw Terminal	170 VAC	264 VAC	LED Red Characters	0.37 in	9.4 mm	Ammeter	30 A	33.93 mm	21.29 mm	Built In Current Transformer (Primary)	Current	0 °C	60 °C	43.09 g	0.095 lb
