BC-CTS Series

Manufacturer: Boxco

Catalog

BOX PLASTIC CLR 3.15"L X 3.15"W

Part	Area (L x W) [custom]	Area (L x W) [custom]	Material	Material Flammability Rating	Height [z]	Height [z]	Ratings	Color	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Container Type	Design	Area (L x W)	Area (L x W)	Height	Area (L x W)	Size / Dimension	Size / Dimension

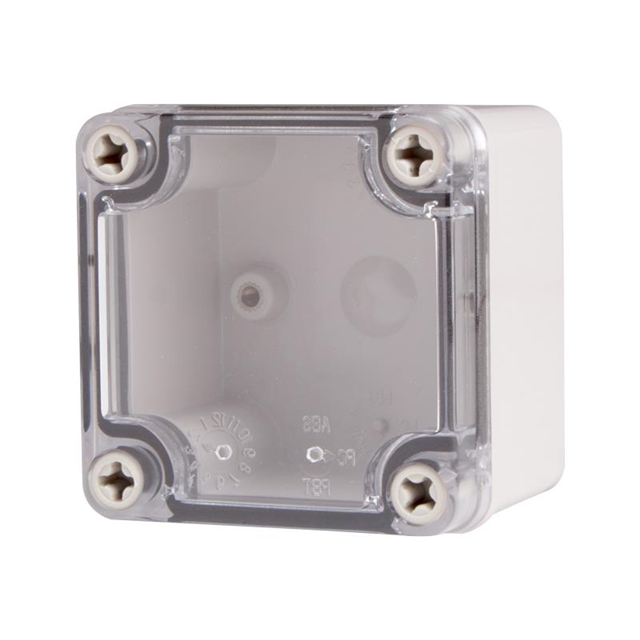

Boxco BC-CTS-080806	9.92 in²	64 cm²	Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	60 mm	2.362 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	80 mm	3.15 "	80 mm	3.15 in	Box	Lift-Off Screw Cover

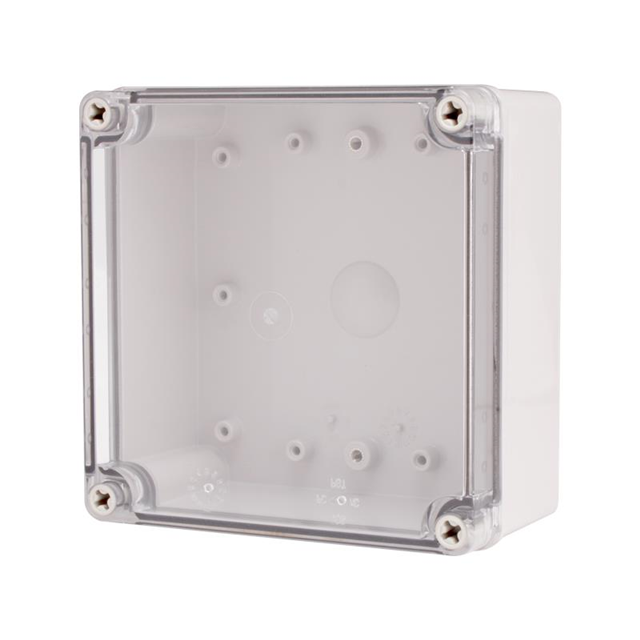

Boxco BC-CTS-151507	34.9 in˛	225 cm˛	Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	75 mm	2.953 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	150 mm	5.906 in	150 mm	5.906 "	Box	Lift-Off Screw Cover	225 cm²	34.9 in²

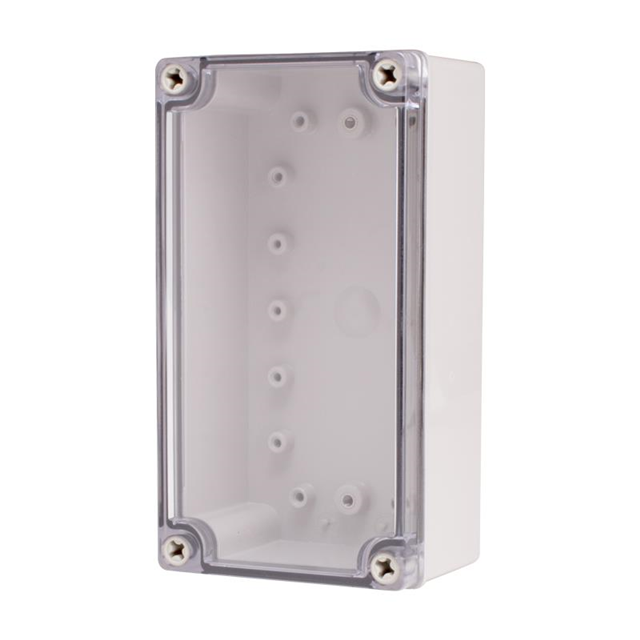

Boxco BC-CTS-101807			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	70 mm	2.756 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	185 mm	7.283 "	100 mm	3.937 "	Box	Lift-Off Screw Cover	185 cm²	28.7 in²

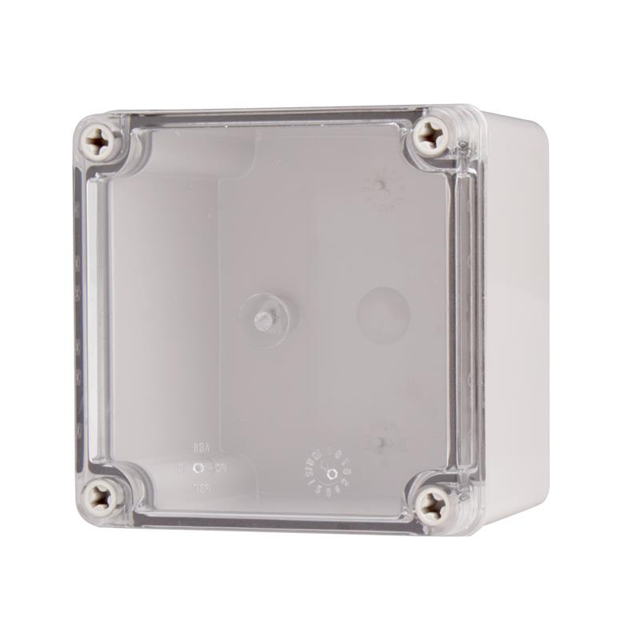

Boxco BC-CTS-121207			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	75 mm	2.953 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	125 mm	4.921 in	125 mm	4.921 "	Box	Lift-Off Screw Cover	156 cm˛	24.2 in˛

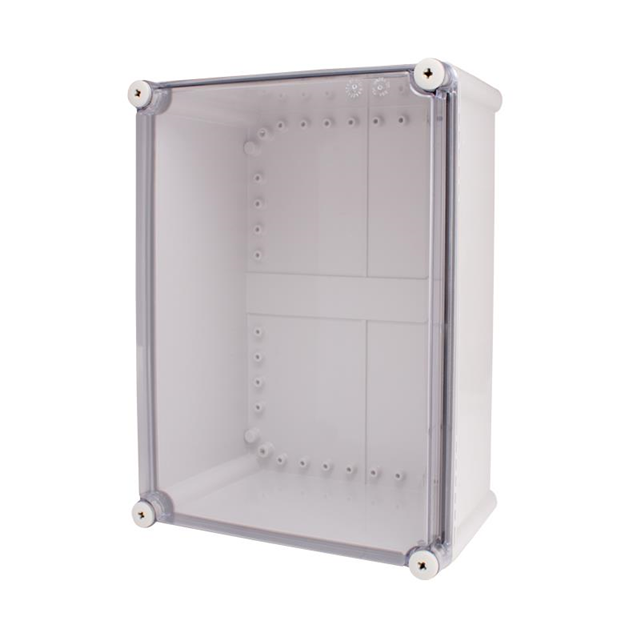

Boxco BC-CTS-283813			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0		5.118 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	380 mm	14.961 in	280 mm	11.024 in	Box	Lift-Off Screw Cover	1064 cm˛	165 in˛	130 mm

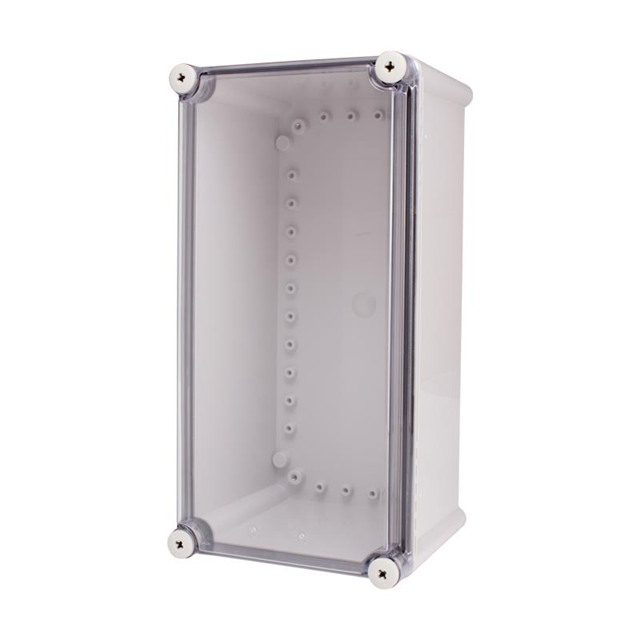

Boxco BC-CTS-193818			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	180 mm	7.087 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	380 mm	14.961 in	190 mm	7.48 in	Box	Lift-Off Screw Cover	722 cm²	112 in²

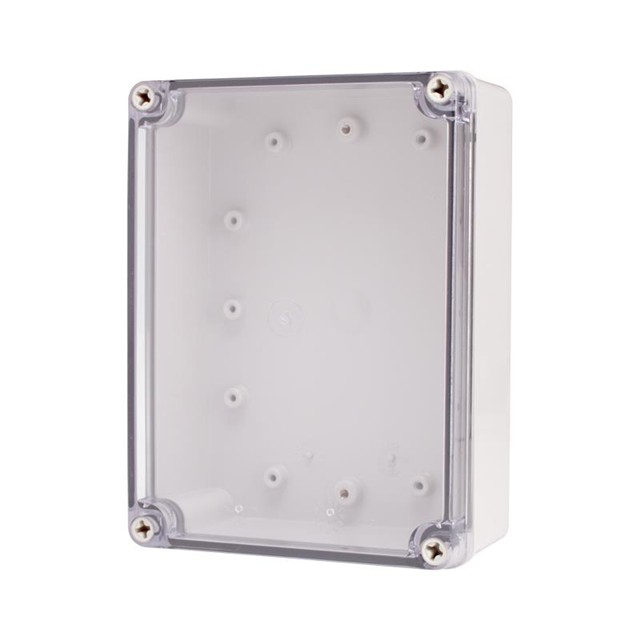

Boxco BC-CTS-152007			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	75 mm	2.953 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	200 mm	7.874 in	150 mm	5.906 "	Box	Lift-Off Screw Cover	46.5 in² 300 cm˛	46.5 in˛		300 cm²

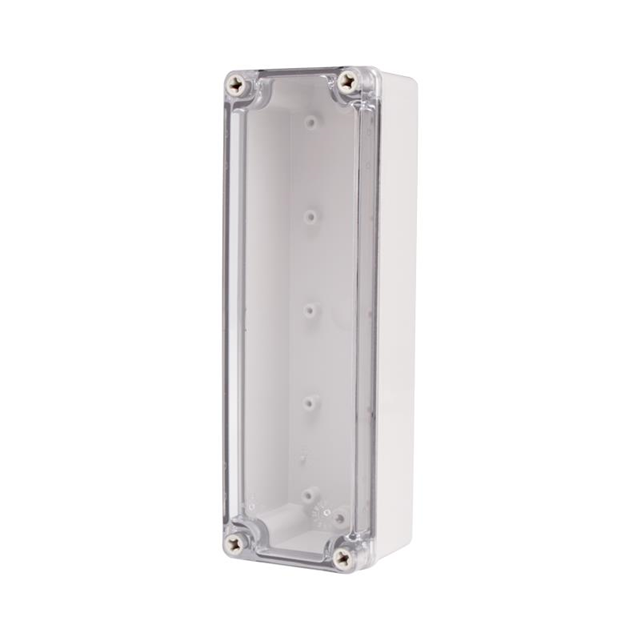

Boxco BC-CTS-082507			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	70 mm	2.756 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount					Box	Lift-Off Screw Cover	200 cm²	31 in²			80 mm 250 mm	3.15 in 9.843 in

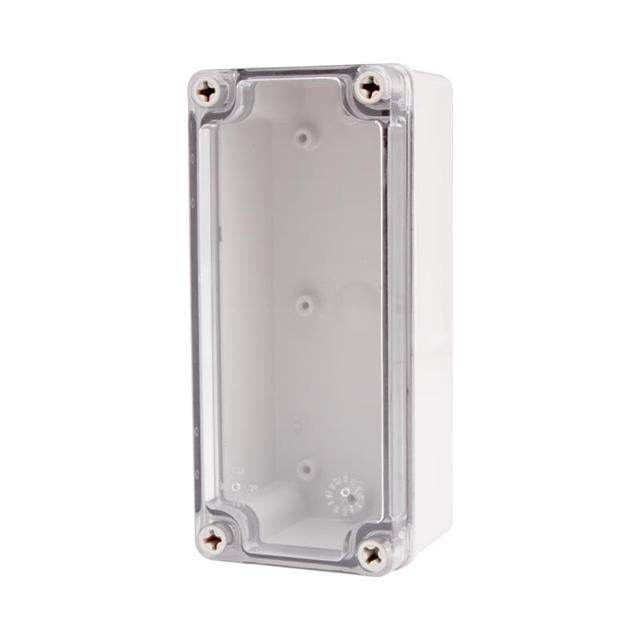

Boxco BC-CTS-081807			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0	70 mm	2.756 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	180 mm	7.087 in	80 mm	3.15 in	Box	Lift-Off Screw Cover	144 cm²	22.3 in²

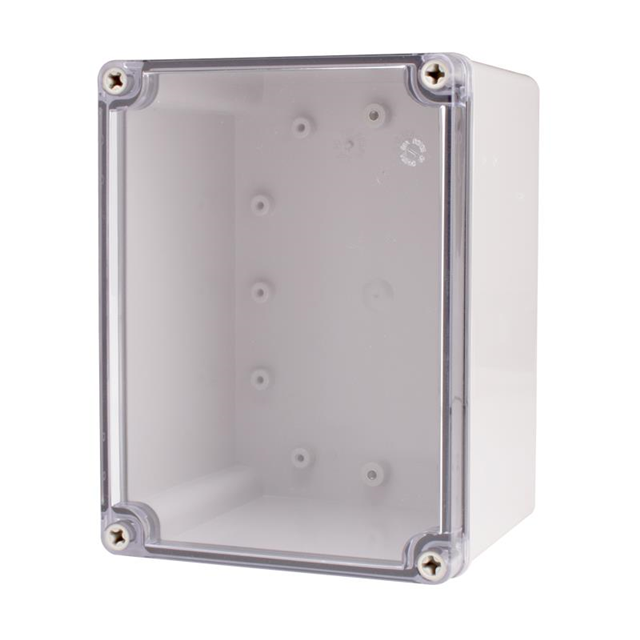

Boxco BC-CTS-152013			Plastic Polycarbonate/Fiberglass	UL94 5VA UL94 HB UL94 V-0		5.118 in	6 IP66 IP67 NEMA 4X UL 508A	Clear Cover Light Gray	Flame Retardant Sealing Gasket Wall Mount	200 mm	7.874 in	150 mm	5.906 "	Box	Lift-Off Screw Cover	46.5 in² 300 cm˛	46.5 in˛	130 mm	300 cm²
