10017251 Series

Catalog

CONN FFC TOP 27POS 0.3MM R/A

Part	Mating Cycles	Actuator Color	Housing Color	Current Rating (Amps)	Contact Material	Cable End Type	Termination	Number of Positions	Housing Material	Material Flammability Rating	Locking Feature	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Actuator Material	Contact Finish	FFC, FCB Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Pitch	Pitch	Mounting Type	Features

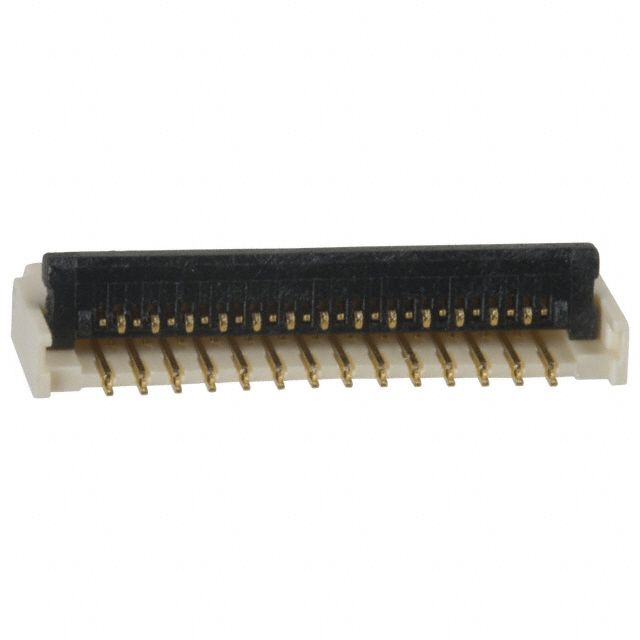

Amphenol ICC (FCI) 10017251-272240ELF	10	Black	White	0.2 A	Copper Alloy	Notched	Solder	27	Glass Filled Thermoplastic	UL94 V-0	Flip Lock	200 V	1.2 mm	0.047 "	Contacts Top	Thermoplastic	Gold	0.2 mm	85 °C	-25 °C	FFC	0.012 in	0.3 mm	Right Angle Surface Mount	Low Insertion Force (LIF)
Amphenol ICC (FCI) 10017251-112240ELF	10	Black	White	0.2 A	Copper Alloy	Notched	Solder	11	Glass Filled Thermoplastic	UL94 V-0	Flip Lock	200 V	1.2 mm	0.047 "	Contacts Top	Thermoplastic	Gold	0.2 mm	85 °C	-25 °C	FFC	0.012 in	0.3 mm	Right Angle Surface Mount	Low Insertion Force (LIF)
Amphenol ICC (FCI) 10017251-252240ELF	10	Black	White	0.2 A	Copper Alloy	Notched	Solder	25	Glass Filled Thermoplastic	UL94 V-0	Flip Lock	200 V	1.2 mm	0.047 "	Contacts Top	Thermoplastic	Gold	0.2 mm	85 °C	-25 °C	FFC	0.012 in	0.3 mm	Right Angle Surface Mount	Low Insertion Force (LIF)
