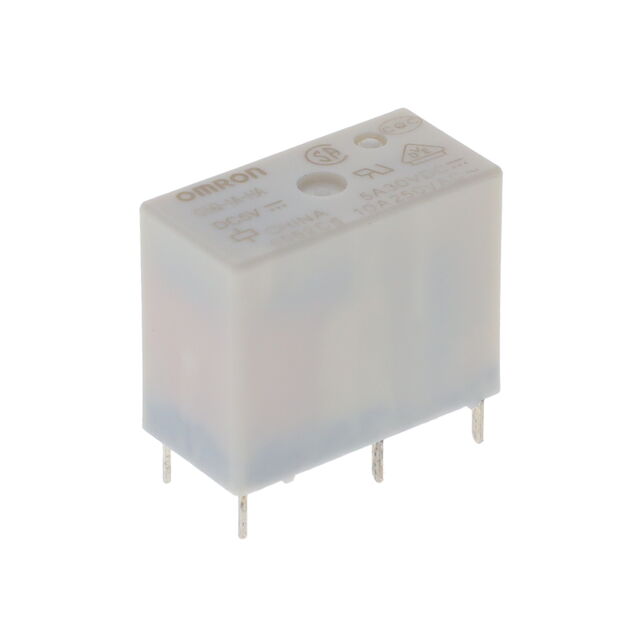

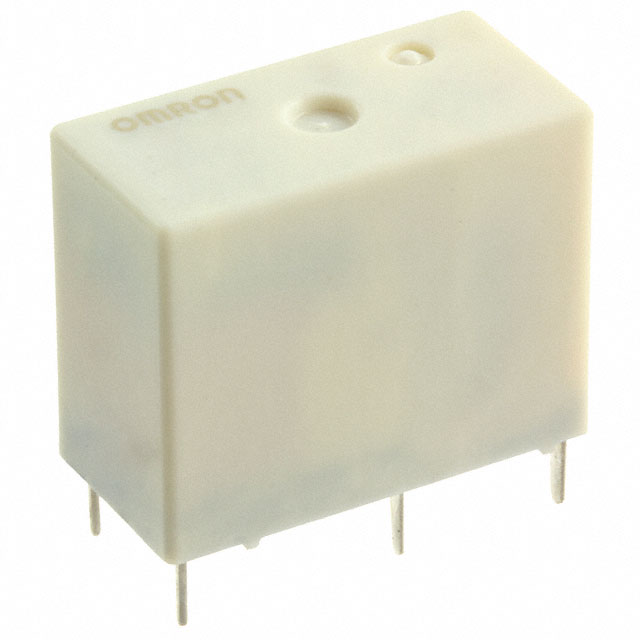

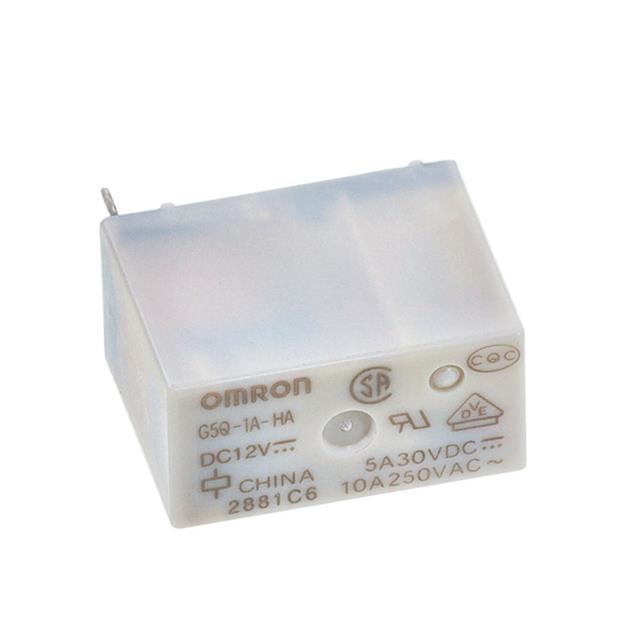

G5Q-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 12V
| Part | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Termination Style | Load - Max Switching [Max] | Coil Current | Mounting Type | Coil Voltage | Contact Material | Approval Agency | Seal Rating | Operate Time | Contact Rating (Current) | Switching Voltage [Max] | Relay Type | Release Time | Contact Form | Coil Resistance | Coil Type | Coil Insulation | Switching Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 9 VDC | 85 °C | -40 °C | 0.6 VDC | PC Pin | 2770 VA | 33.3 mA | Through Hole | 12 VDC | Cadmium Free Silver Alloy | CQC CSA UR VDE | Sealed - Flux Protection | 10 ms | 10 A | 277 VAC | General Purpose | 5 ms | SPST-NO (1 Form A) | 360 Ohms | Non Latching | |||
 Omron Electronics Inc-EMC Div | 36 VDC | 105 ░C | -40 °C | 2.4 VDC | PC Pin | 4.2 mA | Through Hole | 48 VDC | Silver Alloy | CQC CSA UR VDE | Sealed - Fully | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 11.4 kOhms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
Omron Electronics Inc-EMC Div | 9 VDC | 105 ░C | -40 °C | 0.6 VDC | PC Pin | 16.7 mA | Through Hole | 12 VDC | Silver Alloy | CQC CSA UR VDE | Sealed - Flux Protection | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 720 Ohms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
Omron Electronics Inc-EMC Div | 3.75 VDC | 105 ░C | -40 °C | 0.25 VDC | PC Pin | 40 mA | Through Hole | 5 VDC | Silver Alloy | CQC CSA UR VDE | Sealed - Flux Protection | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 125 Ohms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
Omron Electronics Inc-EMC Div | 18 VDC | 105 ░C | -40 °C | 1.2 VDC | PC Pin | 8.3 mA | Through Hole | 24 VDC | Silver Alloy | CQC CSA UR VDE | Sealed - Flux Protection | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 2.88 kOhms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
Omron Electronics Inc-EMC Div | 6.75 VDC | 105 ░C | -40 °C | 0.45 VDC | PC Pin | 22.2 mA | Through Hole | 9 VDC | Silver Alloy | CQC CSA UR VDE | Sealed - Flux Protection | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 405 Ohms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
 Omron Electronics Inc-EMC Div | 3.75 VDC | 105 ░C | -40 °C | 0.25 VDC | PC Pin | 40 mA | Through Hole | 5 VDC | Cadmium Free Silver Alloy | CQC CSA UR VDE | Sealed - Flux Protection | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 125 Ohms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
Omron Electronics Inc-EMC Div | 3.75 VDC | 85 °C | -40 °C | 0.25 VDC | PC Pin | 40 mA | Through Hole | 5 VDC | Silver Alloy | CQC CSA UR VDE | Sealed - Fully | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 125 Ohms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
Omron Electronics Inc-EMC Div | 9 VDC | 85 °C | -40 °C | 0.6 VDC | PC Pin | 16.7 mA | Through Hole | 12 VDC | Silver Alloy | CQC CSA UR VDE | Sealed - Fully | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 720 Ohms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA | ||
 Omron Electronics Inc-EMC Div | 9 VDC | 105 ░C | -40 °C | 0.6 VDC | PC Pin | 16.7 mA | Through Hole | 12 VDC | Cadmium Free Silver Alloy | CQC CSA UR VDE | Sealed - Flux Protection | 10 ms | 10 A | General Purpose | 5 ms | SPST-NO (1 Form A) | 720 Ohms | Non Latching | Class F | 30 VDC 277 VAC | 300 W 2770 VA |
