2RS1 Series
Manufacturer: Adam Tech
Beta
⌘K

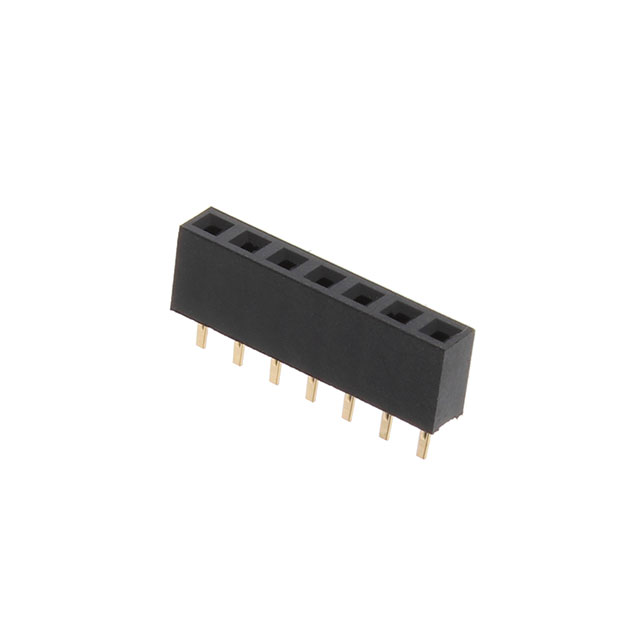

HEADERS & WIRE HOUSINGS RECEPTACLE STRIP 7P 2.0MM PITCH
| Part | Contact Material | Contact Shape | Insulation Material | Applications | Contact Finish Thickness - Post | Voltage Rating | Insulation Height | Insulation Height | Material Flammability Rating | Mounting Type | Number of Positions Loaded | Fastening Type | Contact Finish Thickness - Mating | Insulation Color | Contact Length - Post | Contact Length - Post | Termination | Connector Type | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 7 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |

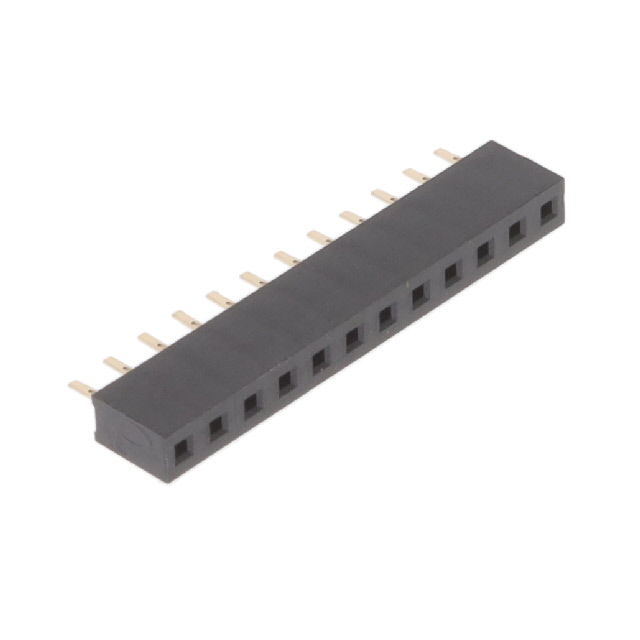

 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 12 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |
 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold | |
 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold | |

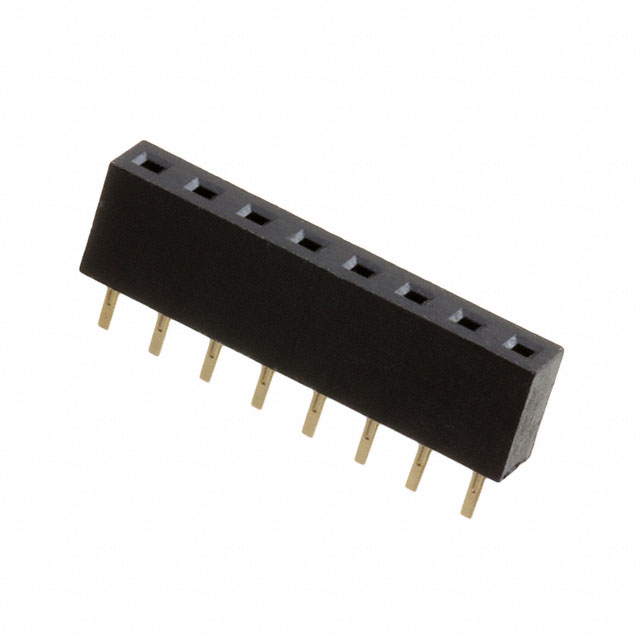

 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 8 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |

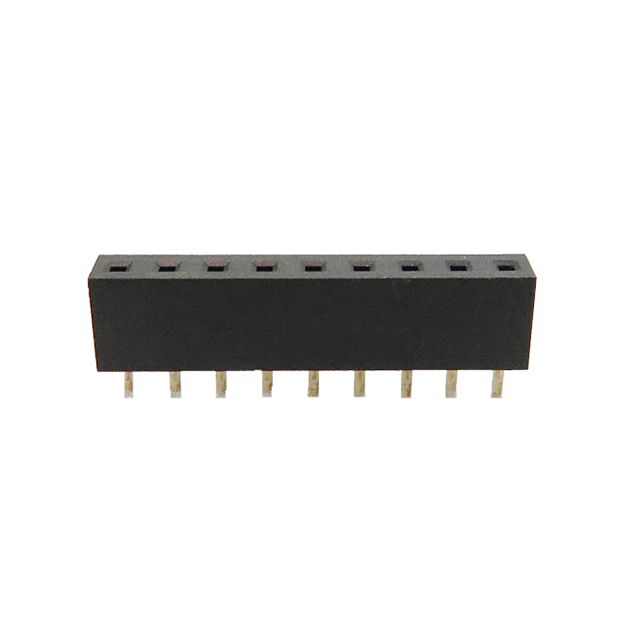

 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 9 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |
 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 16 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |

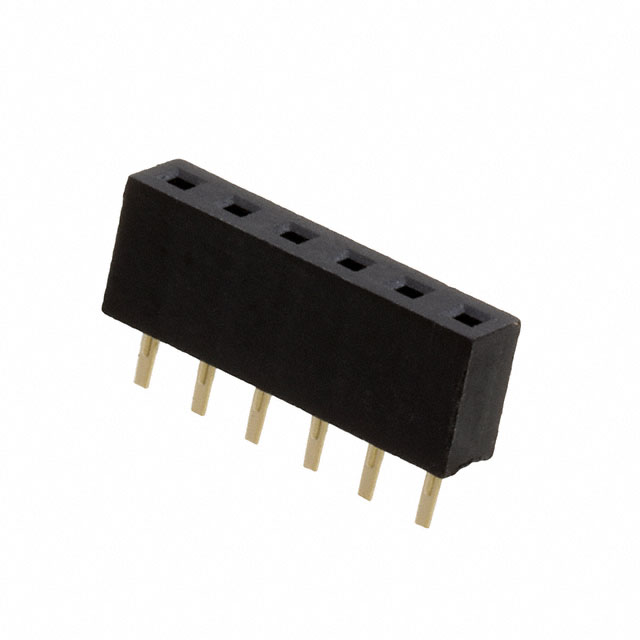

 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 6 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |
 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 19 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |

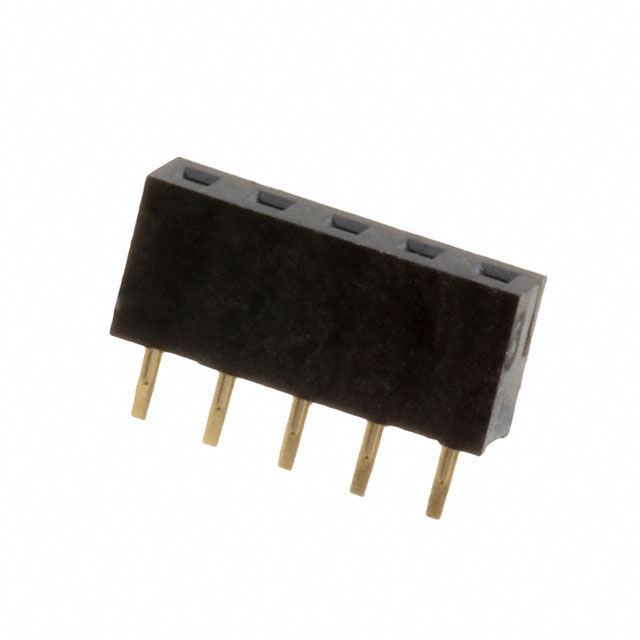

 Adam Tech | Phosphor Bronze | Square | Polybutylene Terephthalate (PBT) | General Purpose | Flash | 250 VAC | 4.3 mm | 0.169 " | UL94 V-0 | Through Hole | All | Push-Pull | Flash | Black | 2.4 mm | 0.094 in | Solder | Receptacle | 5 | 1 | -40 C | 105 ░C | Female Socket | 0.079 " | 2 mm | Gold | Gold |
