2316109 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT HSG 40POS 2.00MM

Part	Insulation Material	Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Contact Termination	Fastening Type	Row Spacing	Row Spacing	Connector Type	Note	Number of Positions
TE Connectivity Raychem Cable Protection 4-2316109-0	Liquid Crystal Polymer (LCP)	Black	40	125 °C	-40 °C	Free Hanging (In-Line)	0.079 in	2 mm	2	Female Socket	Crimp	Locking Ramp	2 mm	0.079 in	Receptacle
TE Connectivity Raychem Cable Protection 3-2316109-0	Liquid Crystal Polymer (LCP)	Black	30	125 °C	-40 °C	Free Hanging (In-Line)	0.079 in	2 mm	2	Female Socket	Crimp	Locking Ramp	2 mm	0.079 in	Receptacle

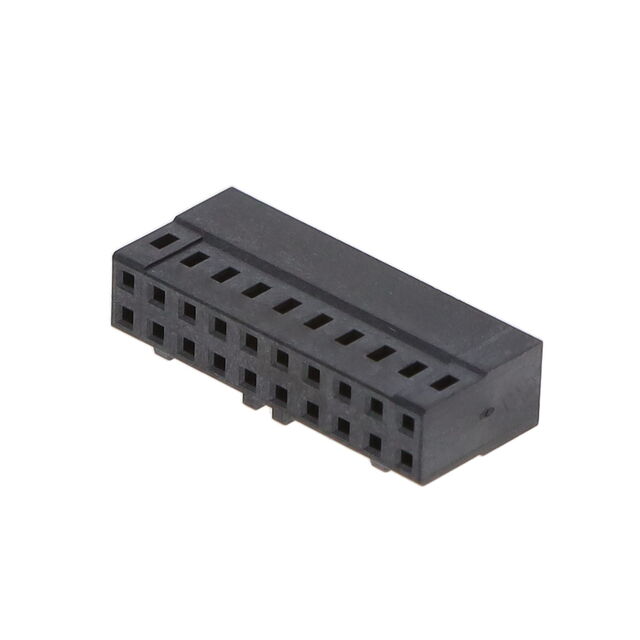

TE Connectivity Raychem Cable Protection 2-2316109-0	Liquid Crystal Polymer (LCP)	Black	20	125 °C	-40 °C	Free Hanging (In-Line)	0.079 in	2 mm	2	Female Socket	Crimp	Locking Ramp	2 mm	0.079 in	Receptacle	Contacts Not Included

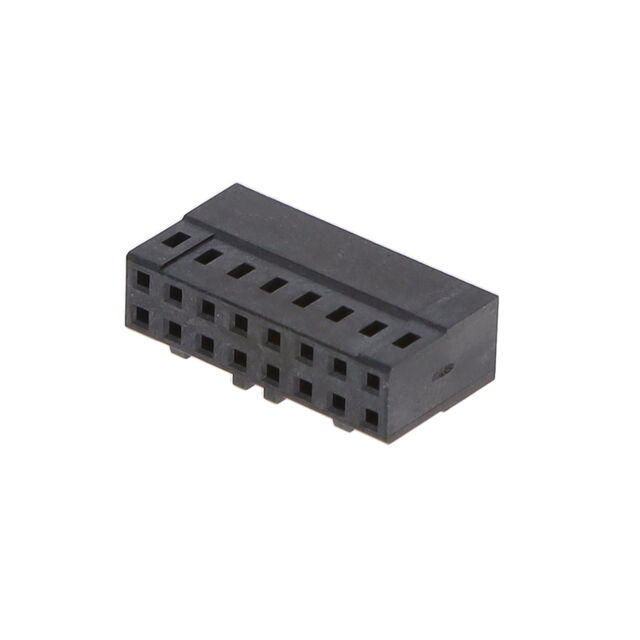

TE Connectivity Raychem Cable Protection 1-2316109-6	Liquid Crystal Polymer (LCP)	Black		125 °C	-40 °C	Free Hanging (In-Line)	0.079 in	2 mm	2	Female Socket	Crimp	Locking Ramp	2 mm	0.079 in	Receptacle	Contacts Not Included	16
TE Connectivity Raychem Cable Protection 5-2316109-0	Liquid Crystal Polymer (LCP)	Black	50	125 °C	-40 °C	Free Hanging (In-Line)	0.079 in	2 mm	2	Female Socket	Crimp	Locking Ramp	2 mm	0.079 in	Receptacle

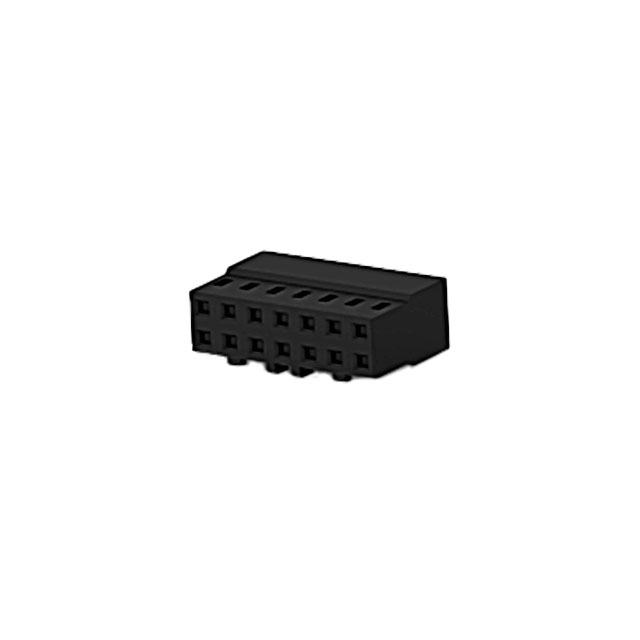

TE Connectivity Raychem Cable Protection 1-2316109-4	Liquid Crystal Polymer (LCP)	Black	14	125 °C	-40 °C	Free Hanging (In-Line)	0.079 in	2 mm	2	Female Socket	Crimp	Locking Ramp	2 mm	0.079 in	Receptacle	Contacts Not Included
TE Connectivity Raychem Cable Protection 2-2316109-8	Liquid Crystal Polymer (LCP)	Black	28	125 °C	-40 °C	Free Hanging (In-Line)	0.079 in	2 mm	2	Female Socket	Crimp	Locking Ramp	2 mm	0.079 in	Receptacle
