215919 Series

Catalog

CONN IDC CONNECTOR F 34 POS 2.54MM IDT RA CABLE MOUNT REEL

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Connector Type	Contact Type	Features	Wire Type	Cable Termination	Mounting Type	Number of Positions [custom]	Row Spacing	Row Spacing	Pitch	Pitch	Number of Rows [custom]	Number of Positions

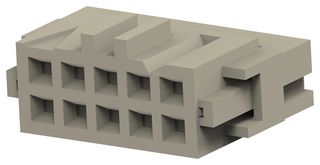

TE Connectivity AMP Connectors 3-215919-4	0.2 µm	7.87 Áin	Gold	Gray	Receptacle	Female Socket	Feed Through Polarizing Key	Ribbon Cable	IDC	Free Hanging (In-Line) Right Angle	34	2.54 mm	0.1 "	0.1 "	2.54 mm	2
TE Connectivity AMP Connectors 2-215919-0	0.2 µm	7.87 Áin	Gold	Gray	Receptacle	Female Socket	Feed Through Polarizing Key	Ribbon Cable	IDC	Free Hanging (In-Line) Right Angle		2.54 mm	0.1 "	0.1 "	2.54 mm	2	20
TE Connectivity AMP Connectors 1-215919-6	0.2 µm	7.87 Áin	Gold	Gray	Receptacle	Female Socket	Feed Through Polarizing Key	Ribbon Cable	IDC	Free Hanging (In-Line) Right Angle		2.54 mm	0.1 "	0.1 "	2.54 mm	2	16

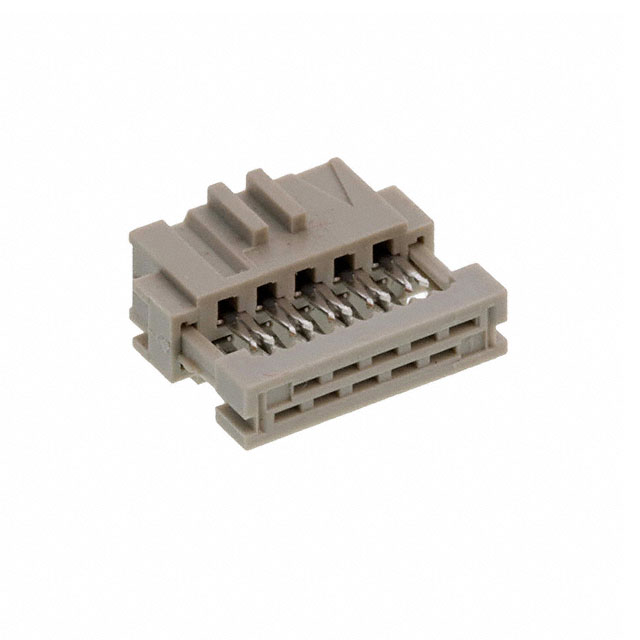

TE Connectivity AMP Connectors 1-215919-0	0.2 µm	7.87 Áin	Gold	Gray	Receptacle	Female Socket	Feed Through Polarizing Key	Ribbon Cable	IDC	Free Hanging (In-Line) Right Angle		2.54 mm	0.1 "	0.1 "	2.54 mm	2	10
TE Connectivity AMP Connectors 5-215919-0	0.2 µm	7.87 Áin	Gold	Gray	Receptacle	Female Socket	Feed Through Polarizing Key	Ribbon Cable	IDC	Free Hanging (In-Line) Right Angle		2.54 mm	0.1 "	0.1 "	2.54 mm	2	50
