59040-1-U-02-A SENS
Key Features
• Noncontact switching solution for wet & harsh environments
• No leakage current in ‘open’ state−ideal for battery-powered IoT applications
• Helps implement efficient proximity/access and energy management systems
• Compact size and easy installation and effective concealment in many applications
• Hermetically sealed, IP67 rated; UL and REACH compliant
• Can operate through nonferrous materials (for example, wood, plastic, or aluminum)
• Available in select sensitivities (operating distances)
• Standard cable configurations; customization options available
• UL Recognized per UL 508 and CSA C22.2 No. 14.
Description
AI

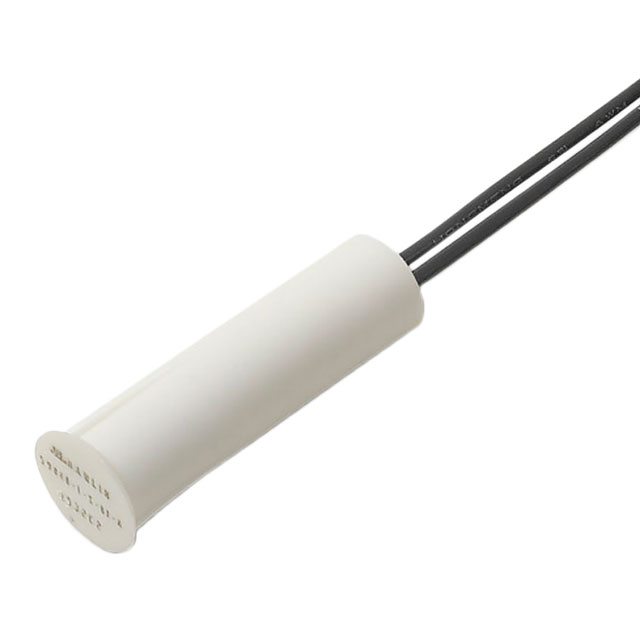

The 59040 Press-Fit Reed Sensor is a small, cylindrical reed sensor 31.0 mm (1.22") long that presses into a 9.5 mm (.375") diameter hole with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 200 Vdc at 10 W Contact rating. Extensive range of sensitivity with specified cable length is available. The housing color is white. It has three crush ribs along the length of the capsule that allow a firm and fixed press-fit. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications. It functions best with the 57040 actuator.
