IMM101 Series

Manufacturer: INFINEON

Catalog

IMOTION™ SMART IPM WITH PMSM/BLDC MOTOR & PFC CONTROLLER AND MOSFET POWER STAGE IN 12X12 MM PQFN PACKAGE

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Motor Type - AC, DC	Supplier Device Package	Motor Type - Stepper	Technology	Function	Applications	Interface	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Output Configuration
INFINEON IMM101T015MXUMA1	Surface Mount	16.5 V	13.5 V	Brushless DC (BLDC)	PG-IQFN-38-1	Bipolar	Power MOSFET	Driver	General Purpose	PWM	38-PowerVQFN	115 °C	-40 °C	4 A	Half Bridge (3)
INFINEON IMM101T056MXUMA1	Surface Mount	16.5 V	13.5 V	Brushless DC (BLDC)	PG-IQFN-38-1	Bipolar	Power MOSFET	Driver	General Purpose	PWM	38-PowerVQFN	115 °C	-40 °C	4 A	Half Bridge (3)

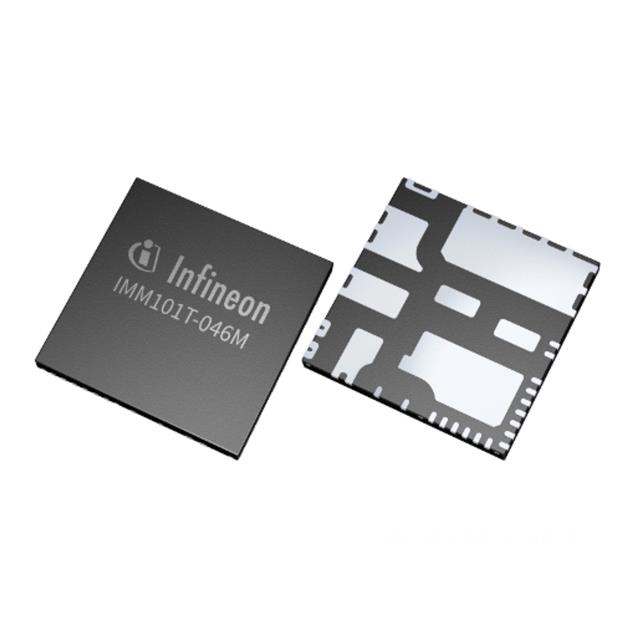

INFINEON IMM101T046MXUMA1	Surface Mount	16.5 V	13.5 V	Brushless DC (BLDC)	PG-IQFN-38-1	Bipolar	Power MOSFET	Driver	General Purpose	PWM	38-PowerVQFN	115 °C	-40 °C	4 A	Half Bridge (3)
