Digitast0 Series Series

Microminiature SPDT, Key Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Microminiature SPDT, Key Switch

Part	Current Rating (Amps)	Mounting Type	Switch Function	Electrical Life	Actuator Type	Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Marking	Voltage Rating - DC	Color - Actuator/Cap
Littelfuse/Commercial Vehicle Products SER GY AU EE	10 mA	Through Hole	On-On	500000 Cycles	Button Square	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V

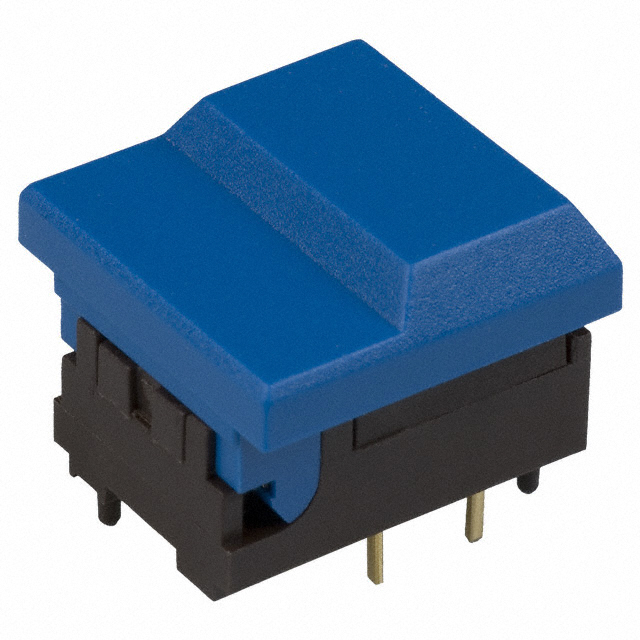

Littelfuse/Commercial Vehicle Products SET BU AU OA	10 mA	Through Hole	On-Mom	5000000 Cycles	Button Square	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V	Blue

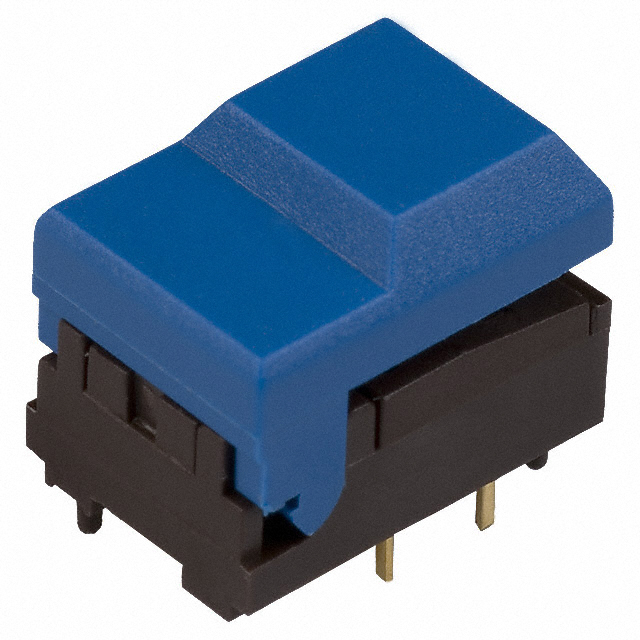

Littelfuse/Commercial Vehicle Products SER BU AU OA	10 mA	Through Hole	On-Mom	5000000 Cycles	Button Square	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V	Blue
Littelfuse/Commercial Vehicle Products SER BK AU EE	10 mA	Through Hole	On-On	500000 Cycles	Button Square	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V	Black

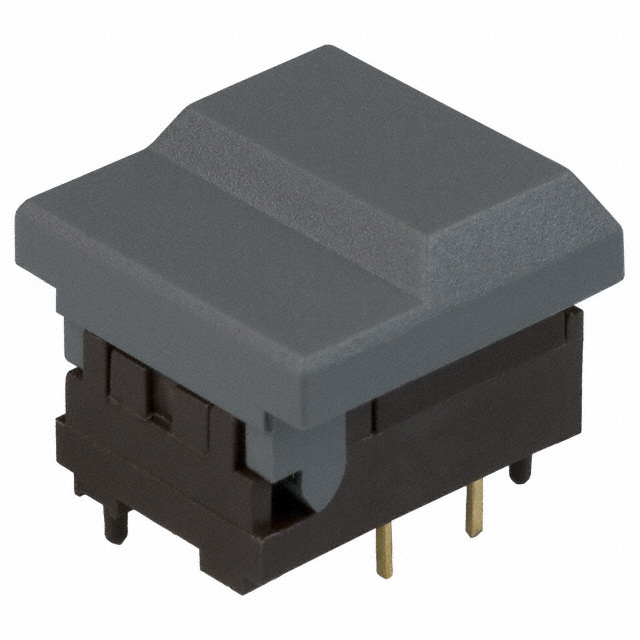

Littelfuse/Commercial Vehicle Products SET GY AU OA	10 mA	Through Hole	On-Mom	5000000 Cycles	Button Square	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V

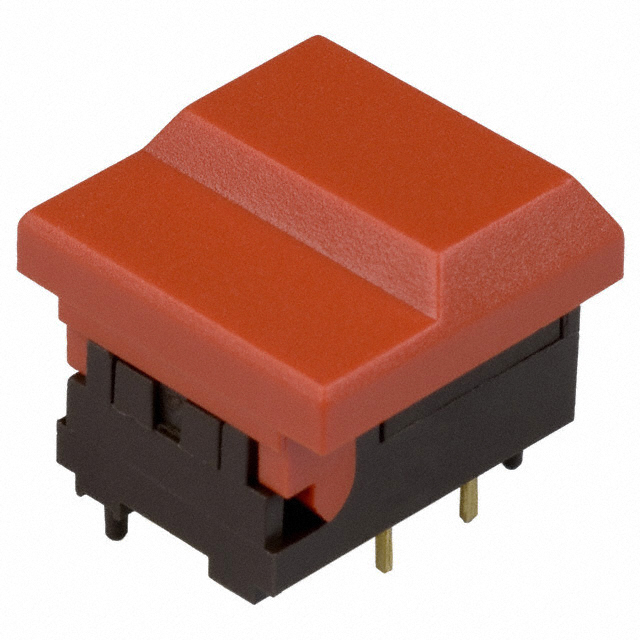

Littelfuse/Commercial Vehicle Products SET RD AU OA	10 mA	Through Hole	On-Mom	5000000 Cycles	Button Square	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V	Red
Littelfuse/Commercial Vehicle Products SERU AU OA	10 mA	Through Hole	On-Mom	5000000 Cycles	Plunger for Cap	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V

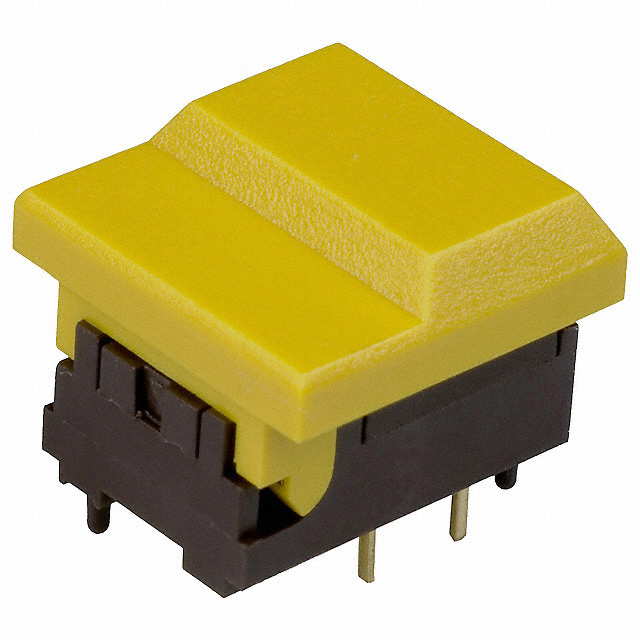

Littelfuse/Commercial Vehicle Products SET YE AU OA	10 mA	Through Hole	On-Mom	5000000 Cycles	Button Square	Keyswitch	PC Pin	-25 °C	85 °C	SPDT	No Marking	24 V	Yellow

Catalog

Microminiature SPDT, Key Switch

Key Features

• High reliability/long life

• Designed for low level switching

• Ready to implement on PCB

Description

With Digitast Micro-miniature SPDT keyswitches from C&K, designers gain a reliable, low-level switching solution for their audio and lighting consoles, instrumentation and industrial electronics applications that comes ready to implement on a PCB. Available in momentary or push-push formats, Digitast keyswitches can also be delivered in a variety of different button options or with an optional latching function.
