CPT-2416 Series

Catalog

AUDIO BUZZER PIEZO 8VDC 16VDC 16MA 12VDC 85DB 2400HZ TO 3400HZ THROUGH HOLE PIN LAYER

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Technology	Frequency	Termination	Driver Circuitry	Input Type	Voltage - Rated	Operating Mode	Size / Dimension [diameter]	Size / Dimension [diameter]	Sound Pressure Level (SPL)	Current - Supply	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Port Location

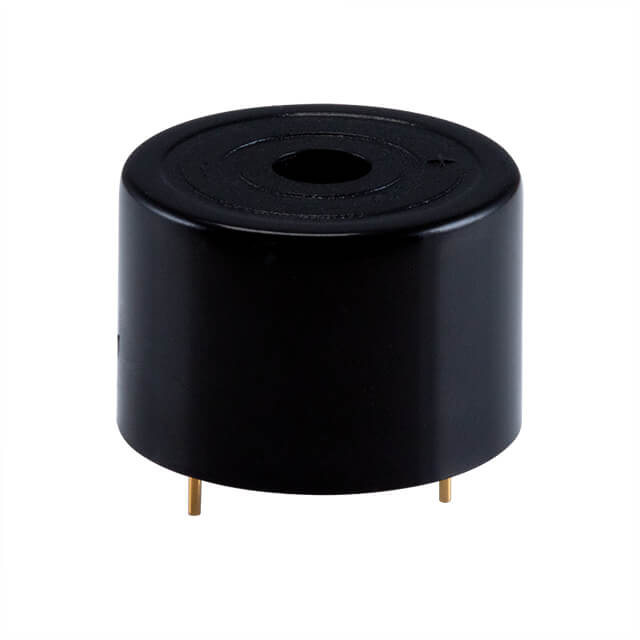

Same Sky (Formerly CUI Devices) CPT-2416-85T	0.65 in	16.5 mm	Piezo	2.9 kHz	PC Pins	Indicator Internally Driven	DC	12 VDC	Single Tone	23.8 mm	0.937 in	85 dB	16 mA	16 V	8 V	85 °C	-30 ░C	Through Hole	Top
Same Sky (Formerly CUI Devices) CPT-2416-85T	0.65 in	16.5 mm	Piezo	2.9 kHz	PC Pins	Indicator Internally Driven	DC	12 VDC	Single Tone	23.8 mm	0.937 in	85 dB	16 mA	16 V	8 V	85 °C	-30 ░C	Through Hole	Top
