LMR16030 Series

Catalog

SIMPLE SWITCHER 60V, 3A STEP-DOWN CONVERTER WITH 40UA IQ

Part	Supplier Device Package	Frequency - Switching [Min]	Frequency - Switching [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Output Configuration	Current - Output	Package / Case [y]	Package / Case [x]	Package / Case	Function	Topology	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Frequency - Switching	Voltage - Output	Regulator Topology	Supplied Contents	Board Type	Utilized IC / Part	Outputs and Type	Outputs and Type
Texas Instruments LMR16030PDDAR	8-SO PowerPad	200 kHz	2.5 MHz	1	60 V	Positive	3 A	3.9 mm	0.154 in	8-PowerSOIC	Step-Down	Buck	Adjustable	-40 °C	125 ¯C	Surface Mount	4.3 V	50 V	0.8 V
Texas Instruments LMR16030SDDA	8-SO PowerPad	200 kHz	2.5 MHz	1	60 V	Positive	3 A	3.9 mm	0.154 in	8-PowerSOIC	Step-Down	Buck	Adjustable	-40 °C	125 ¯C	Surface Mount	4.3 V	50 V	0.8 V
Texas Instruments LMR16030SDDAR	8-SO PowerPad	200 kHz	2.5 MHz	1	60 V	Positive	3 A	3.9 mm	0.154 in	8-PowerSOIC	Step-Down	Buck	Adjustable	-40 °C	125 ¯C	Surface Mount	4.3 V	50 V	0.8 V
Texas Instruments LMR16030PDDA	8-SO PowerPad	200 kHz	2.5 MHz	1	60 V	Positive	3 A	3.9 mm	0.154 in	8-PowerSOIC	Step-Down	Buck	Adjustable	-40 °C	125 ¯C	Surface Mount	4.3 V	50 V	0.8 V

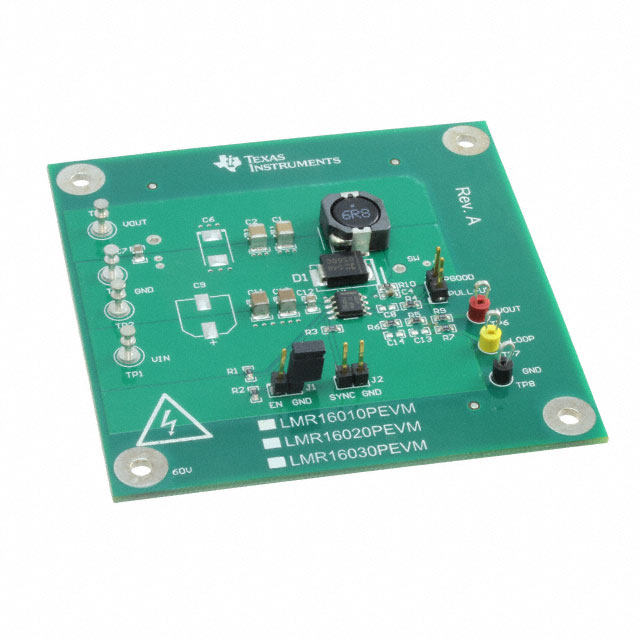

Texas Instruments LMR16030PEVM							3 A													60 V	7 V	DC/DC Step Down	500 kHz	5 V	Buck	Board(s)	Fully Populated	LMR16030	Non-Isolated	1
