G6015 Series

Catalog

FAN AXIAL 60X15.3MM 24VDC WIRE

Part	Material - Blade	Air Flow	Air Flow	Bearing Type	Approval Agency	Noise	RPM	Features	Weight [custom]	Weight [custom]	Width [x]	Ingress Protection	Termination	Fan Type	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Current Rating (Amps)	Width [y]

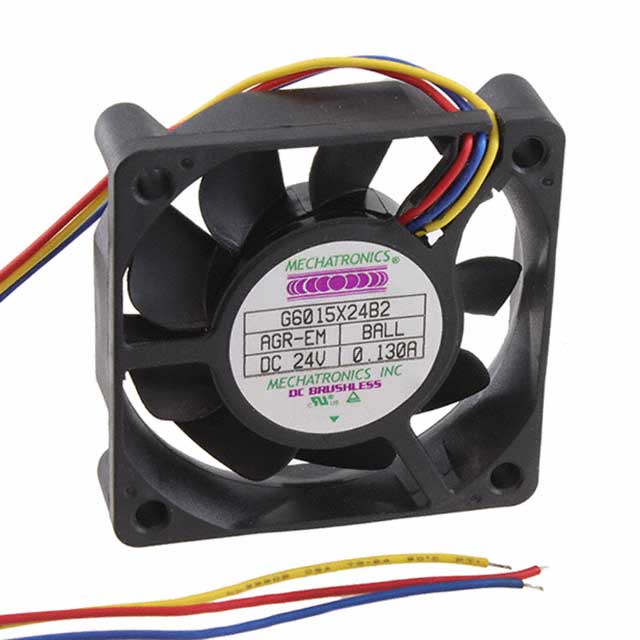

Mechatronics Fan Group G6015X24B2-AGR-EM	Polybutylene Terephthalate (PBT)	24 CFM	0.672 mł/min	Ball	CE cUL TUV UL	35 dB	5800 RPM	Locked Rotor Sensor Thermal Overload Protector (TOP)	0.059 lb	26.76 g	15.3 mm	IP57 - Dust Protected Waterproof	3 Wire Leads	Tubeaxial	24 VDC	60 mm	60 mm	72.2 Pa	0.29 in H2O
Mechatronics Fan Group G6015M24B-RGR-EM	Polybutylene Terephthalate (PBT)	16 CFM	0.448 mł/min	Ball	CE cUL TUV UL	28 dB	4000 RPM	Thermal Overload Protector (TOP)	0.111 lb	50.35 g		IP57 - Dust Protected Waterproof	2 Wire Leads	Tubeaxial	24 VDC	60 mm	60 mm			75 mA	15 mm
Mechatronics Fan Group G6015M12B-RHR	Polybutylene Terephthalate (PBT)	16 CFM	0.448 mł/min	Ball	CE cUL TUV UL	30 dB	4000 RPM		0.111 lb	50.35 g			2 Wire Leads	Tubeaxial	24 VDC	60 mm	60 mm	42.3 Pa	0.17 in H2O	120 mA	15 mm
Mechatronics Fan Group G6015M12B1+6-RHR	Polybutylene Terephthalate (PBT)	16 CFM	0.448 mł/min	Ball	CE cUL TUV UL	30 dB	4000 RPM	PWM Control Speed Sensor (Tach)	0.111 lb	50.35 g			4 Wire Leads	Tubeaxial	12 VDC	60 mm	60 mm	42.3 Pa	0.17 in H2O	120 mA	15 mm
Mechatronics Fan Group G6015S12B2-RHR	Polybutylene Terephthalate (PBT)	12 CFM	0.336 mł/min	Ball	CE cUL TUV UL	22 dB(A)	2800 RPM	Locked Rotor Sensor	0.111 lb	50.35 g			3 Wire Leads	Tubeaxial	12 VDC	60 mm	60 mm	24.9 Pa	0.1 in H2O		15 mm

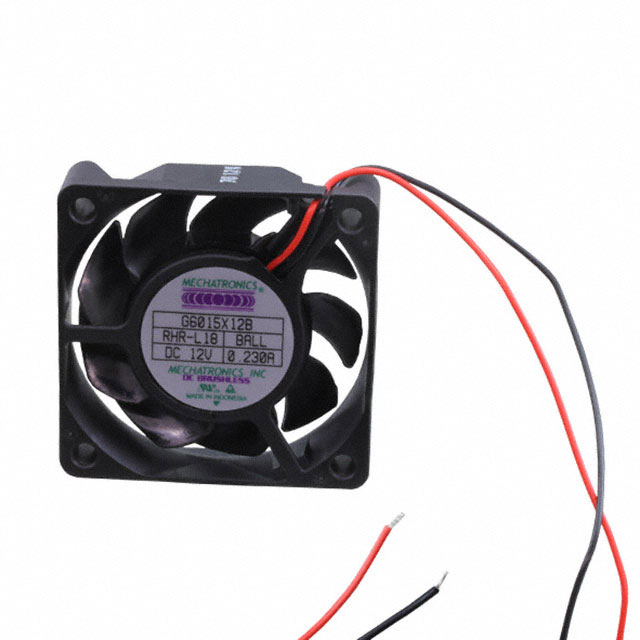

Mechatronics Fan Group G6015X12B-RHR-L18		22 CFM	0.616 m³/min	Ball	CE cUL TUV UL	39 dB(A)	5800 RPM		0.111 lb	50.35 g			2 Wire Leads	Tubeaxial	12 VDC	60 mm	60 mm	74.7 Pa	0.3 in H2O	0.25 A	15 mm
Mechatronics Fan Group G6015E24B-AGR-EM	Polybutylene Terephthalate (PBT)	20 CFM	0.56 m³/min	Ball	CE cUL TUV UL	36 dB	5200 RPM	Thermal Overload Protector (TOP)	0.111 lb	50.35 g		IP57 - Dust Protected Waterproof	2 Wire Leads	Tubeaxial	24 VDC	60 mm	60 mm	64.8 Pa	0.26 in H2O		15 mm
Mechatronics Fan Group G6015H12B-RHR	Polybutylene Terephthalate (PBT)	18 CFM	0.504 m³/min	Ball	CE cUL TUV UL	33 dB(A)	4600 RPM		0.111 lb	50.35 g			2 Wire Leads	Tubeaxial	12 VDC	60 mm	60 mm	52.3 Pa	0.21 in H2O	150 mA	15 mm
Mechatronics Fan Group G6015E24B-RHR-EM	Polybutylene Terephthalate (PBT)	20 CFM	0.56 m³/min	Ball	CE cUL TUV UL	36 dB	5200 RPM		0.111 lb	50.35 g		IP57 - Dust Protected Waterproof	2 Wire Leads	Tubeaxial	24 VDC	60 mm	60 mm	64.8 Pa	0.26 in H2O		15 mm
Mechatronics Fan Group G6015H12B1-RGR-EM	Polybutylene Terephthalate (PBT)	18 CFM	0.504 m³/min	Ball	CE cUL TUV UL	33 dB(A)	4600 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.111 lb	50.35 g		IP57 - Dust Protected Waterproof	3 Wire Leads	Tubeaxial	12 VDC	60 mm	60 mm	52.3 Pa	0.21 in H2O	150 mA	15 mm
