LBG Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 35 VOLTS 4800UF
| Part | Ratings | Ripple Current @ High Frequency | Tolerance [Min] | Tolerance [Max] | Mounting Type | Polarization | Lifetime @ Temp. | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [z] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Capacitance | Lead Spacing | Lead Spacing | Ripple Current @ Low Frequency | Impedance | Voltage - Rated | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

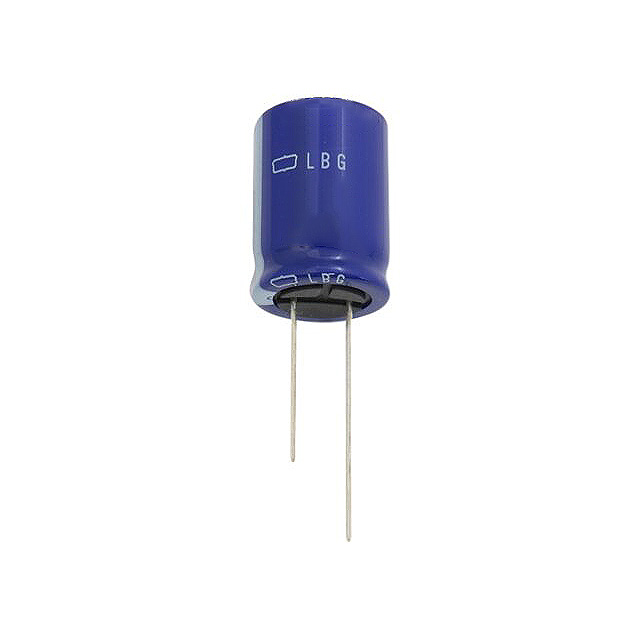

 Chemi-Con | AEC-Q200 | 3.5 A | 0 % | 30 % | Through Hole | Polar | 5000 Hrs | Automotive | 1.299 in | 33 mm | -55 C | 105 ░C | Can Radial | 0.709 in | 18 mm | 4800 µF | 0.295 in | 7.5 mm | 2.975 A | 24 mOhms | 35 V | |

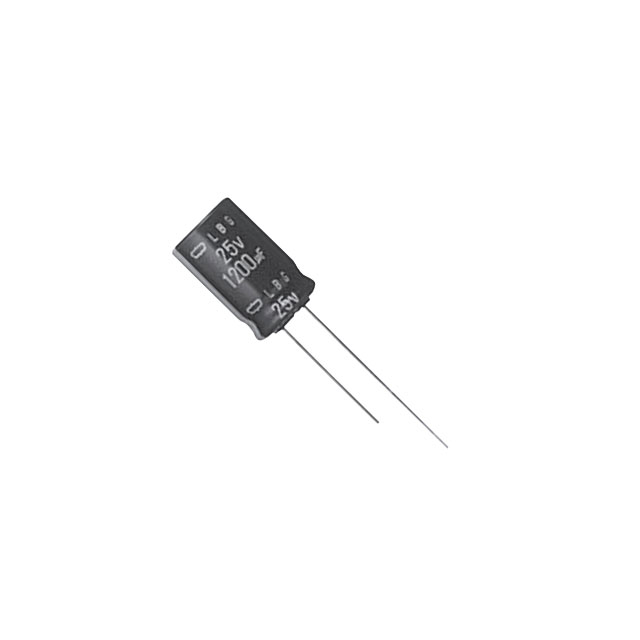

 Chemi-Con | AEC-Q200 | 2.7 A | 0 % | 30 % | Through Hole | Polar | 5000 Hrs | Automotive | 36.5 mm | -55 C | 105 ░C | Can Radial | 0.492 in | 12.5 mm | 3500 µF | 0.197 " | 5 mm | 2.025 A | 33 mOhms | 25 VDC | 1.437 " |
