TX25-50P Series

Catalog

CONN PLUG 50POS R/A GOLD

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Positions	Contact Finish	Mated Stacking Heights

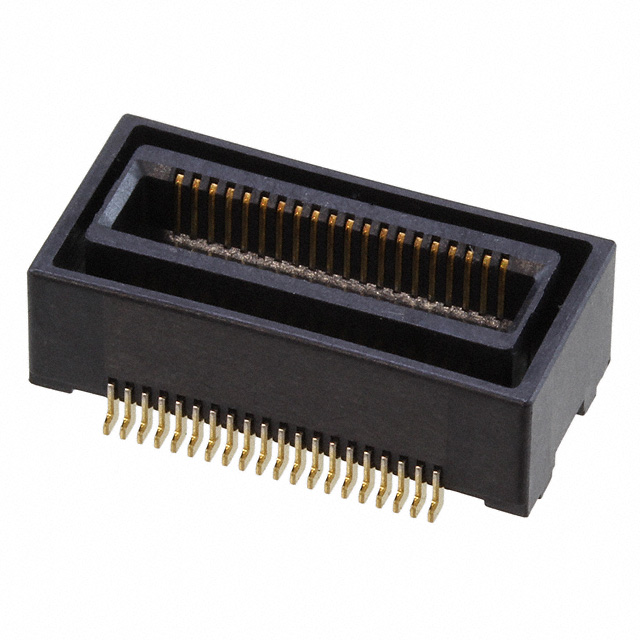

JAE Electronics TX25-50P-LT-H1E	Board Lock	0.1 Ám	4 Áin	2	Right Angle Through Hole	0.354 in	9 mm	0.05 in	1.27 mm	50	Gold

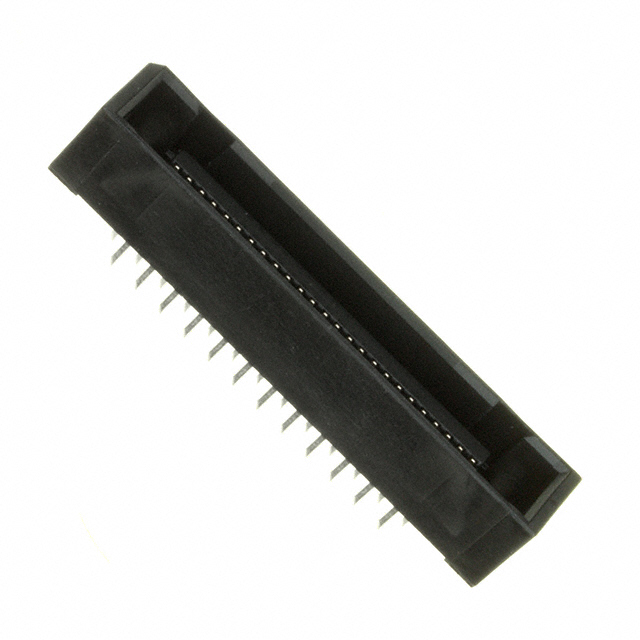

JAE Electronics TX25-50P-6ST-N1E		0.1 Ám	4 Áin	2	Through Hole	0.362 in	9.2 mm	0.05 in	1.27 mm	50	Gold	12 mm 16 mm 18 mm

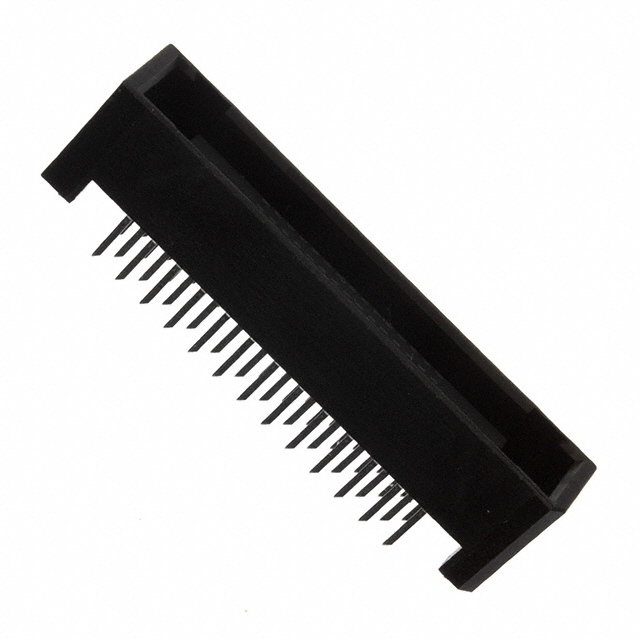

JAE Electronics TX25-50P-8ST-H1E	Board Lock	0.1 Ám	4 Áin	2	Through Hole	0.441 in	11.2 mm	0.05 in	1.27 mm	50	Gold	14 mm 18 mm 20 mm

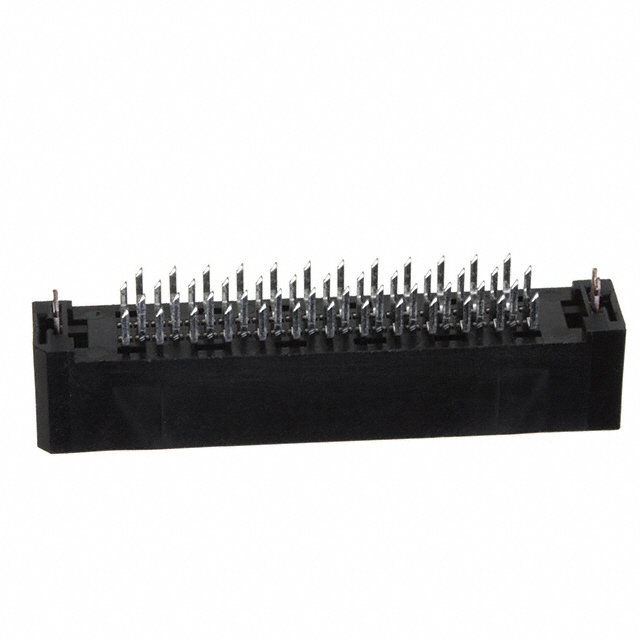

JAE Electronics TX25-50P-6ST-H1E	Board Lock	0.1 Ám	4 Áin	2	Through Hole	0.362 in	9.2 mm	0.05 in	1.27 mm	50	Gold	12 mm 16 mm 18 mm

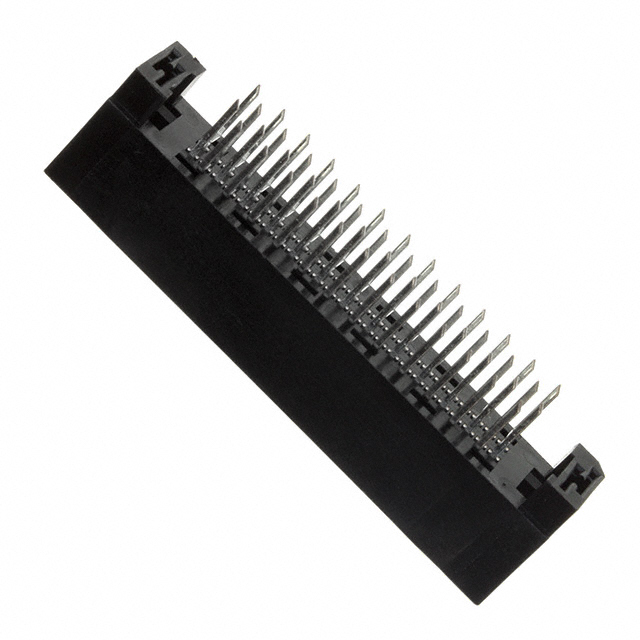

JAE Electronics TX25-50P-8ST-N1E		0.1 Ám	4 Áin	2	Through Hole	0.441 in	11.2 mm	0.05 in	1.27 mm	50	Gold	14 mm 18 mm 20 mm

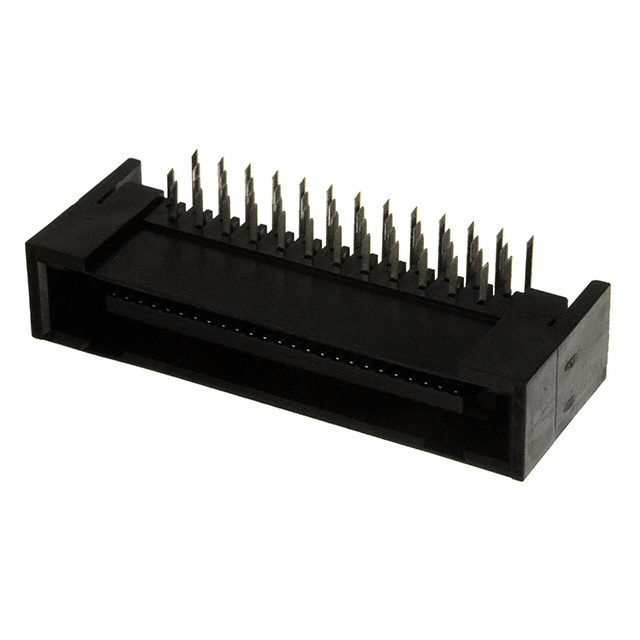

JAE Electronics TX25-50P-LT-N1E		0.1 Ám	4 Áin	2	Right Angle Through Hole	0.354 in	9 mm	0.05 in	1.27 mm	50	Gold

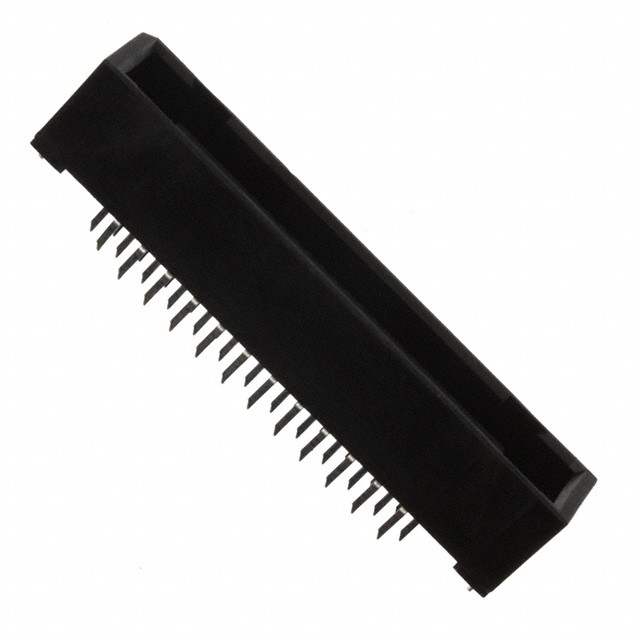

JAE Electronics TX25-50P-6ST-E1E	Board Lock	0.1 Ám	4 Áin	2	Through Hole			0.05 in	1.27 mm	50	Gold	12 mm 16 mm 18 mm
