DS04-254 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

...

Part	Voltage Rating	Number of Positions	Contact Finish	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Washable	Circuit	Termination Style	Mounting Type	Actuator Type	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Contact Material	Actuator Level	Body Material	Length	Length	Electrical Life	Length [x]	Length [x]	Height Above Board	Height Above Board
Same Sky (Formerly CUI Devices) DS04-254-1S-12BK	24 VDC	12	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	4.21 mm	25 mA	Copper Alloy	Raised
Same Sky (Formerly CUI Devices) DS04-254-2-04BK-SMT-TR	24 VDC	4	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	4.25 mm	25 mA	Copper Alloy	Flush Recessed	Polybutylene Terephthalate (PBT)	11.16 mm	0.439 in	2000 Steps
Same Sky (Formerly CUI Devices) DS04-254-2-07BK-SMT-TR	24 VDC	7	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	4.25 mm	25 mA	Copper Alloy	Flush Recessed	Polybutylene Terephthalate (PBT)	18.78 mm		2000 Steps	0.739 in
Same Sky (Formerly CUI Devices) DS04-254-1S-01BK	24 VDC	1	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	4.21 mm	25 mA	Copper Alloy	Raised	Polybutylene Terephthalate (PBT)	3.54 mm	0.139 in	2000 Steps
Same Sky (Formerly CUI Devices) DS04-254-1S-03BK	24 VDC		Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	4.21 mm	25 mA	Copper Alloy	Raised	Polybutylene Terephthalate (PBT)			2000 Steps	0.339 in	8.62 mm
Same Sky (Formerly CUI Devices) DS04-254-2-01BK-SMT-TR	24 VDC	1	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	4.25 mm	25 mA	Copper Alloy	Flush Recessed
Same Sky (Formerly CUI Devices) DS04-254-1-03BK-SMT	24 VDC		Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	Gull Wing	Surface Mount	Slide (Standard)			25 mA	Copper Alloy	Raised							0.189 in	4.8 mm

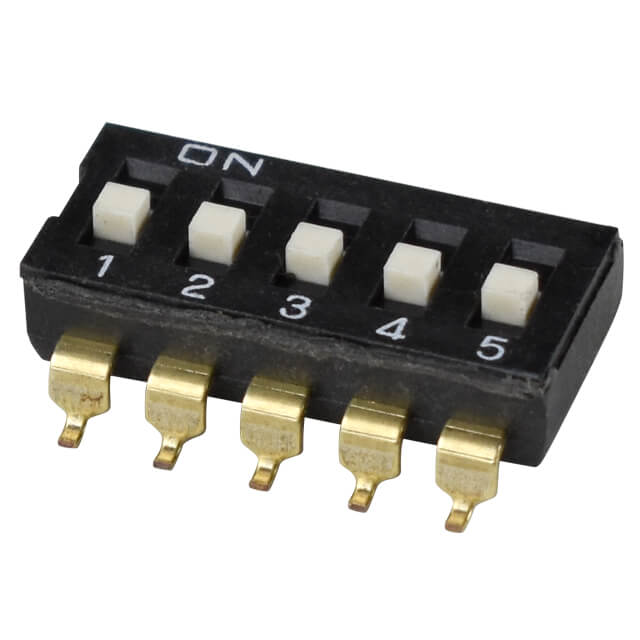

Same Sky (Formerly CUI Devices) DS04-254-2-05BK-SMT	24 VDC	5	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	Gull Wing	Surface Mount	Slide (Standard)	0.167 in	4.25 mm	25 mA	Copper Alloy	Flush Recessed	Polybutylene Terephthalate (PBT)			2000 Steps	0.539 in	13.7 mm
Same Sky (Formerly CUI Devices) DS04-254-1L-01BK	24 VDC	1	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	4.21 mm	25 mA	Copper Alloy	Raised	Polybutylene Terephthalate (PBT)	3.54 mm	0.139 in	2000 Steps
Same Sky (Formerly CUI Devices) DS04-254-1L-04BK	24 VDC	4	Gold	2.54 mm	0.1 "	85 °C	-40 C		SPST	PC Pin	Through Hole	Slide (Standard)	0.166 in	4.21 mm	25 mA	Copper Alloy	Raised
