327968 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

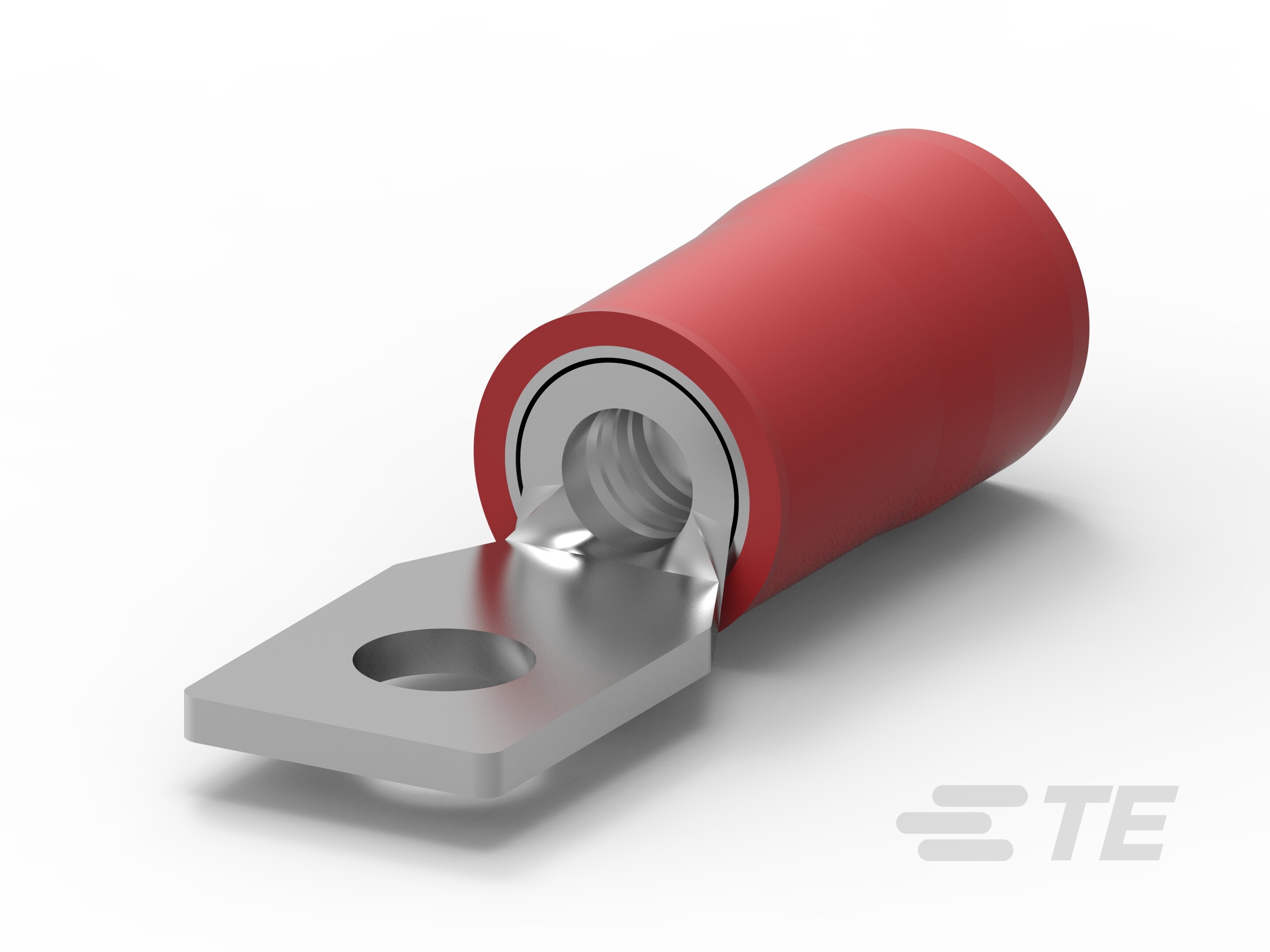

PIDG RECT 22-16COMM 22-18MIL 4
| Part | Color | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Terminal Style | Features | Mounting Type | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Red | Crimp | 22 AWG | 16 AWG | Insulated | Single Stud Hole | Serrated Termination | Free Hanging (In-Line) | 0.119 " | 3.02 mm | 0.237 in | 6.02 mm | Rectangular Tongue | 4 Stud | 20.22 mm | 0.796 in | Copper | Tin | 0.031 " | 0.79 mm |
