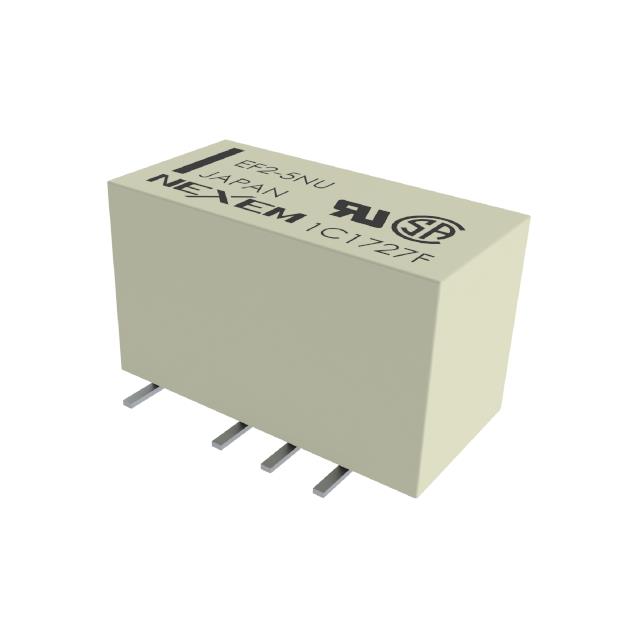

EF2-5N Series
Manufacturer: KEMET
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 5V
| Part | Coil Resistance | Coil Type | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Operate Time | Release Time | Mounting Type | Switching Voltage [Max] | Contact Material | Relay Type | Load - Max Switching | Must Release Voltage | Coil Voltage | Termination Style | Must Operate Voltage | Coil Current | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 500 Ohms | Non Latching | DPDT (2 Form C) | 85 °C | -40 C | 1 A | 3 ms | 2 ms | Surface Mount | 220 VDC 250 VAC | Gold Alloy Silver Alloy | General Purpose | 440 W 500 VA | 0.5 VDC | 5 VDC | Gull Wing | 3.75 VDC | 10 mA | CSA TUV UL |
