Z8F083 Series

Manufacturer: ZiLOG

Catalog

IC MCU 8BIT 8KB FLASH 20DIP

Part	Package / Case	Core Processor	Supplier Device Package	Program Memory Type	Program Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Data Converters	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Speed	Core Size	RAM Size [custom]	RAM Size [custom]	Peripherals	Number of I/O	Mounting Type	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case	Board Type	Utilized IC / Part	Contents	Type
ZiLOG Z8F083APH020EG	20-DIP (0.300" 7.62mm)	eZ8	20-PDIP	FLASH	8 KB	-40 °C	105 °C	A/D 7x10b	Internal	3.6 V	2.7 V	20 MHz	8-Bit	8	256	Brown-out Detect/Reset LED POR PWM WDT	17	Through Hole
ZiLOG Z8F083ASJ020SG	28-SOIC	eZ8		FLASH	8 KB	0 °C	70 °C	A/D 8x10b	Internal	3.6 V	2.7 V	20 MHz	8-Bit	8	256	Brown-out Detect/Reset LED POR PWM WDT	23	Surface Mount	0.295 "	7.5 mm
ZiLOG Z8F083ASJ020EG	28-SOIC	eZ8		FLASH	8 KB	-40 °C	105 °C	A/D 8x10b	Internal	3.6 V	2.7 V	20 MHz	8-Bit	8	256	Brown-out Detect/Reset LED POR PWM WDT	23	Surface Mount	0.295 "	7.5 mm
ZiLOG Z8F083ASH020EG	20-SOIC (0.295" 7.50mm Width)	eZ8	20-SOIC	FLASH	8 KB	-40 °C	105 °C	A/D 7x10b	Internal	3.6 V	2.7 V	20 MHz	8-Bit	8	256	Brown-out Detect/Reset LED POR PWM WDT	17	Surface Mount
ZiLOG Z8F083AQJ020EG	28-VFQFN Exposed Pad	eZ8	28-QFN (5x5)	FLASH	8 KB	-40 °C	105 °C	A/D 8x10b	Internal	3.6 V	2.7 V	20 MHz	8-Bit	8	256	Brown-out Detect/Reset LED POR PWM WDT	23	Surface Mount
ZiLOG Z8F083APJ020EG	28-DIP	eZ8	28-PDIP	FLASH	8 KB	-40 °C	105 °C	A/D 8x10b	Internal	3.6 V	2.7 V	20 MHz	8-Bit	8	256	Brown-out Detect/Reset LED POR PWM WDT	23	Through Hole			15.24 mm	0.6 in

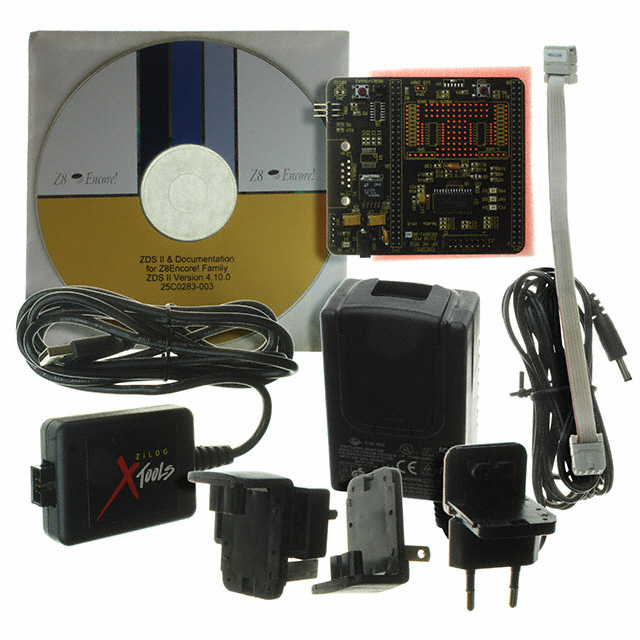

ZiLOG Z8F083A0128ZCOG		eZ8																Fixed					Evaluation Platform	Z8 Encore!	Accessories Board(s) Cable(s) Power Supply	MCU 8-Bit
ZiLOG Z8F083APH020SG	20-DIP (0.300" 7.62mm)	eZ8		FLASH	8 KB	0 °C	70 °C	A/D 7x10b	Internal	3.6 V	2.7 V	20 MHz	8-Bit	8	256	Brown-out Detect/Reset LED POR PWM WDT	17	Through Hole
