M17/176 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K

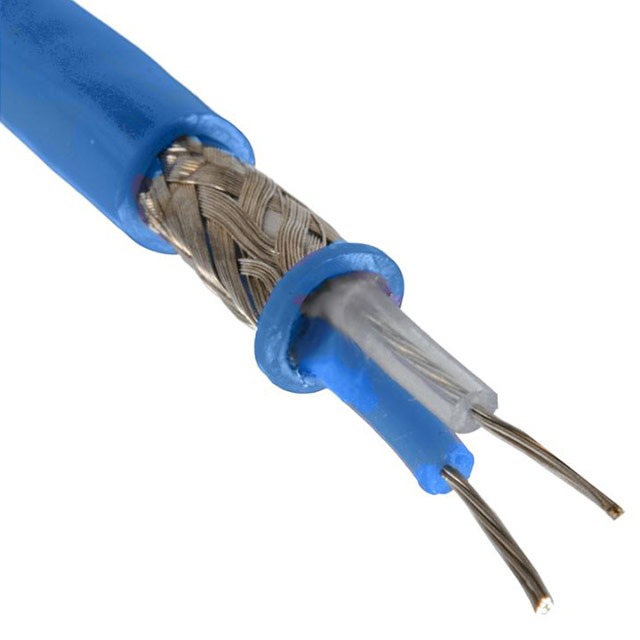

CABLE TWINAXIAL 24AWG 500'
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Shield Coverage | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Cable Type | Length [x] | Length [x] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Wire Gauge | Impedance | Features | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | Polytetrafluoroethylene (PTFE) | 200 °C | -55 C | 70 | 93 % | Copper Silver Coated | 0.042 in | 1.07 mm | Copper Silver Coated | Twinaxial | 152.4 m | 500 ft | Braid | 19 | 36 AWG | 0.129 " | 3.28 mm | Perfluoroalkoxy (PFA) | 24 AWG | 77 Ohms | High Temperature | Blue |
