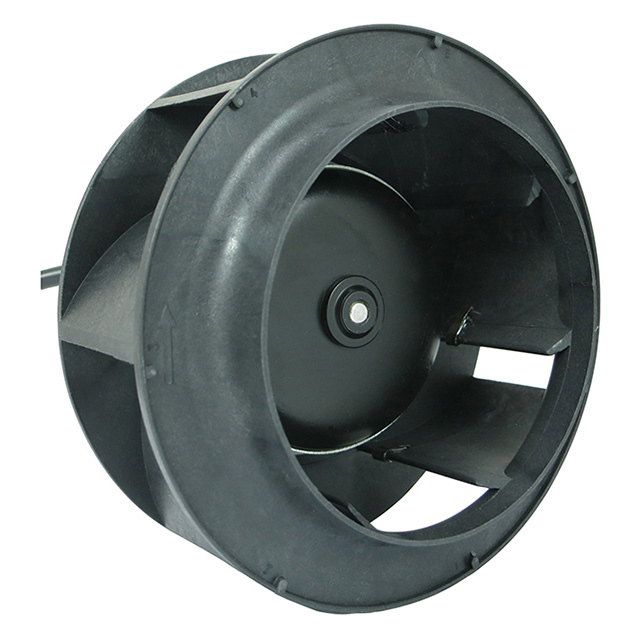

ODB13391 Series
Manufacturer: ORION FANS
Beta
⌘K
DC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 48V 28V TO 52V 326CFM 68DB 133 X 91MM TACHOMETER
| Part | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Operating Temperature | Static Pressure | Static Pressure | Air Flow | Air Flow | Approval Agency | Voltage - Rated | Noise | Size / Dimension [diameter] | Fan Type | Width [x] | Weight [custom] | Weight [custom] | Termination | RPM | Power (Watts) | Features | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 40000 Hrs | Thermoplastic | 1.25 A | 36 VDC | 56 VDC | Aluminum | 14 ~ 149°F (-10 ~ 65°C) | 473.3 Pa | 1.9 in H2O | 257 CFM | 7.2 m³/min | CE cURus TUV UR | 48 VDC | 68 dB | 133.5 mm | Motorized Impellers | 91 mm | 700 g | 1.543 lb | 4 Wire Leads | 4600 RPM | 60 W | PWM Control Speed Sensor (Tach) | Ball |
 ORION FANS | 40000 Hrs | Thermoplastic | 2.65 A | 16 VDC | 28 V | Aluminum | 14 ~ 149°F (-10 ~ 65°C) | 473.3 Pa | 1.9 in H2O | 257 CFM | 7.2 m³/min | CE cURus TUV UR | 24 VDC | 68 dB | 133.5 mm | Motorized Impellers | 91 mm | 700 g | 1.543 lb | 4 Wire Leads | 4600 RPM | 63.6 W | PWM Control Speed Sensor (Tach) | Ball |
