UT0W0 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG FMALE 41POS PNL MT

Part	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection IP Rating	Ingress Protection Description	Type	Note	Contact Type	Mounting Type	Orientation	Contact Shape	Shell Finish	Number of Positions	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Contact Size	Connector Type	Fastening Type	Mounting Feature	Insert Material	Shell Material	Material Flammability Rating	Housing Color

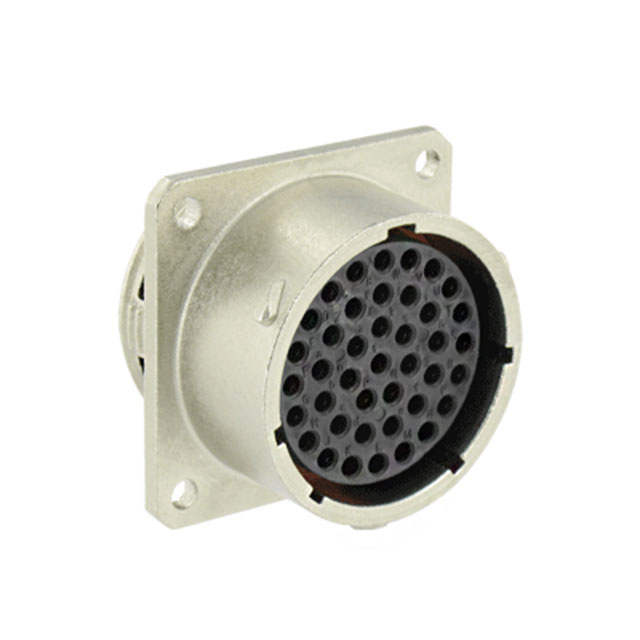

Amphenol Aerospace Operations UT0W02041SH	41	20	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	41	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver
Amphenol Aerospace Operations UT0W02041SH6	41	20	IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	41	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver

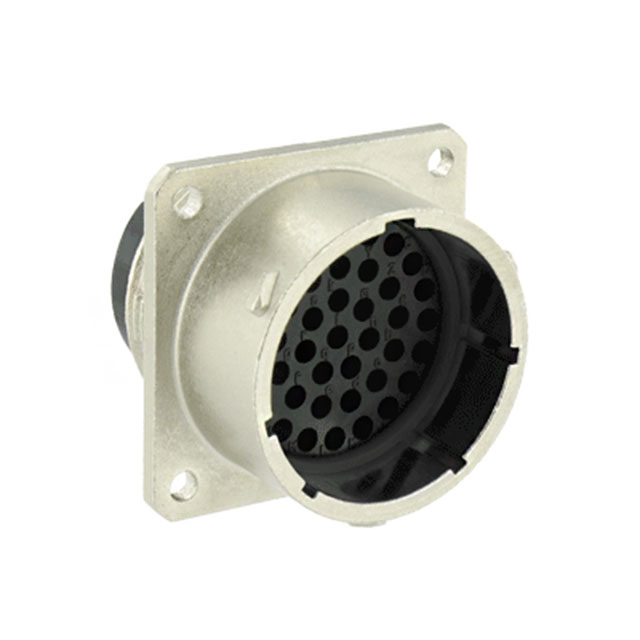

Amphenol Aerospace Operations UT0W02041PH	41	20	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	41	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver

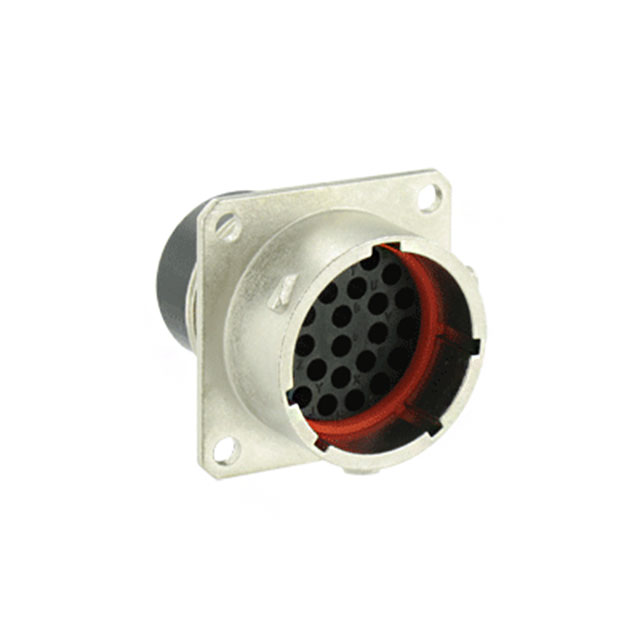

Amphenol Aerospace Operations UT0W01626PH6	26	16 S	IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	26	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver

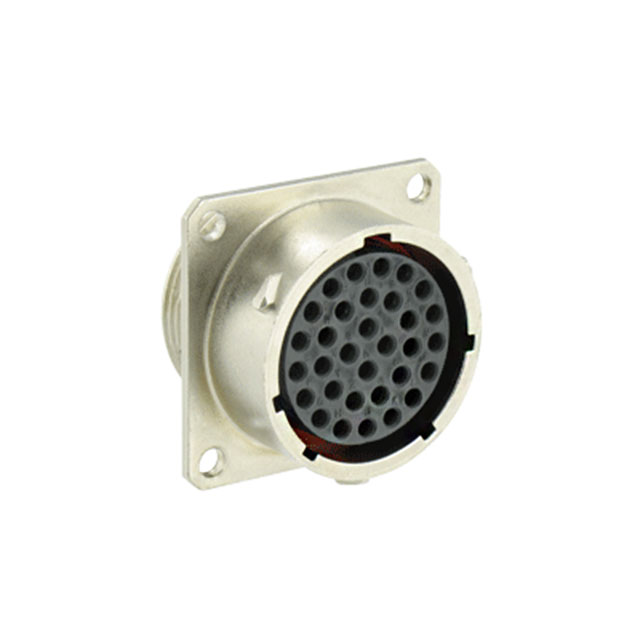

Amphenol Aerospace Operations UT0W01832SH	32	18	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	32	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver
Amphenol Aerospace Operations UT0W02255SH	55	22	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	55	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver

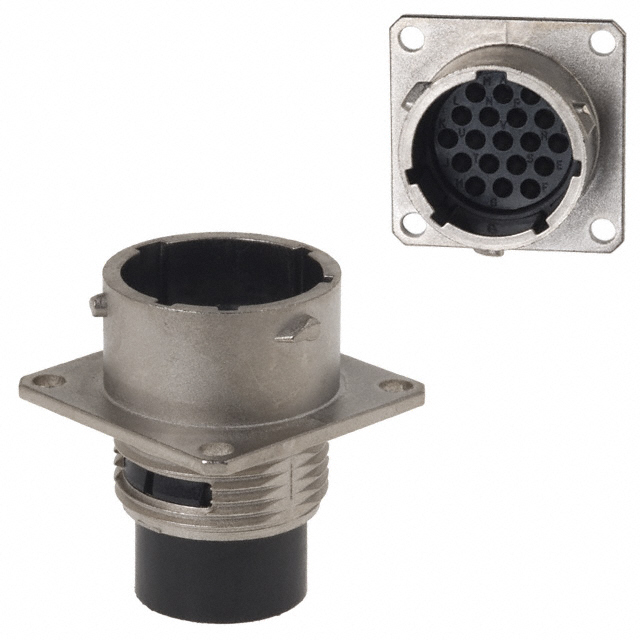

Amphenol Aerospace Operations UT0W01419PH	19	14 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	19	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver
Amphenol Aerospace Operations UT0W01832PWH	32	18	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Contacts Not Included	Crimp	Panel Mount	W	Circular	Nickel	32	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver

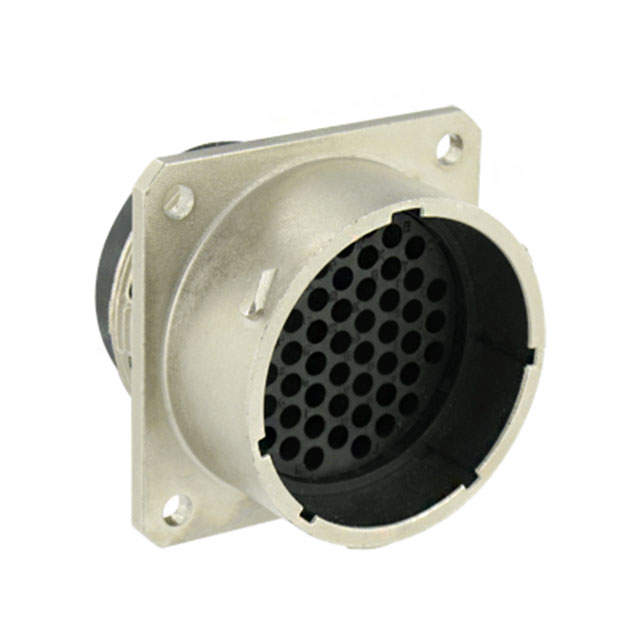

Amphenol Aerospace Operations UT0W02255PH	55	22	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	55	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver

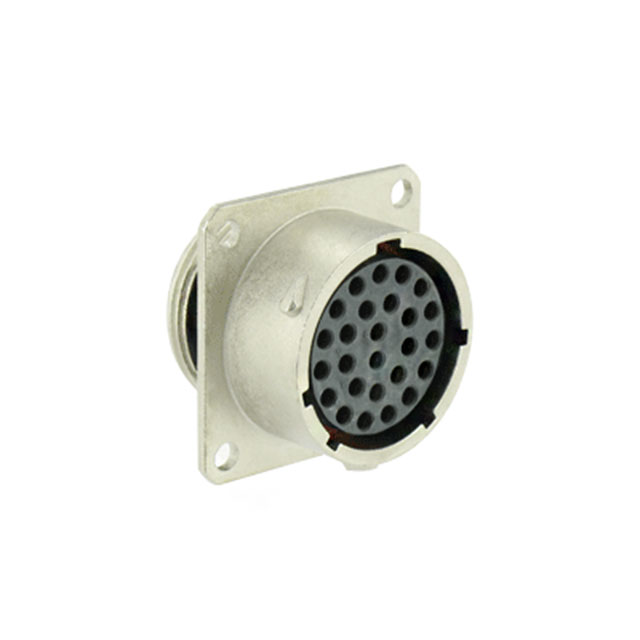

Amphenol Aerospace Operations UT0W01626SH	26	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Contacts Not Included	Crimp	Panel Mount	N (Normal)	Circular	Nickel	26	Shielded	-40 °C	105 °C	20	Receptacle Housing	Bayonet Lock	Flange	Glass Filled Thermoplastic	Zinc Alloy	UL94 V-0	Silver
