7820 Series

Catalog

CONN DIP HDR IDC 20P VERT

Part	Number of Positions Loaded	Contact Finish Thickness	Cable Pitch	Cable Pitch	Mounting Type	Cable Termination	Number of Rows [custom]	Number of Positions	Color	Contact Finish	Wire Gauge	Connector Type	Row Spacing	Row Spacing	Features	Board-Side Pitch	Board-Side Pitch

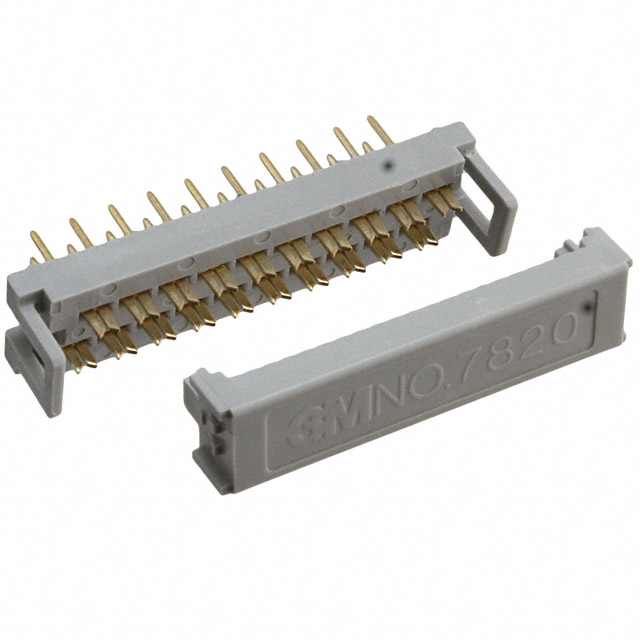

3M Electronic Specialty 7820-0006PR	All	Flash	1.27 mm	0.05 in	Through Hole	IDC	2	20	Gray	Gold	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	DIP Header Ribbon Cable	2.54 mm	0.1 "	Feed Through	2.54 mm	0.1 "
3M Electronic Specialty 7820-0000T	All		1.27 mm	0.05 in	Through Hole	IDC	2	20	Gray	Tin	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	DIP Header Ribbon Cable	2.54 mm	0.1 "	Feed Through	2.54 mm	0.1 "
3M Electronic Specialty 7820-0000PR	All	Flash	1.27 mm	0.05 in	Through Hole	IDC	2	20	Gray	Gold	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	DIP Header Ribbon Cable	2.54 mm	0.1 "	Feed Through	2.54 mm	0.1 "
