RHV2 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE & LABORATORY, 1:1, 2 W, 2 OUTPUT, 5 V, 200 MA

Part	Type	Power (Watts)	Voltage - Isolation	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Efficiency	Applications	Voltage - Output 1	Voltage - Output 2	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]

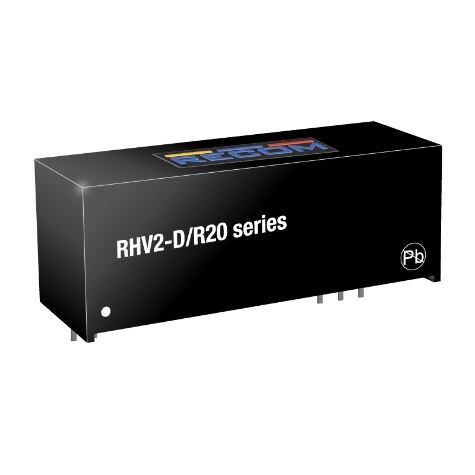

Recom Power RHV2-2405D/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	26.4 V	77 %	ITE (Commercial) Laboratory	5 V	-5 V	21.6 V	2
Recom Power RHV2-2412D/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	26.4 V	81 %	ITE (Commercial) Laboratory	12 V	-12 V	21.6 V	2	84 mA	84 mA
Recom Power RHV2-1212S/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	13.2 V	76 %	ITE (Commercial) Laboratory	12 V		10.8 V	1			167 mA
Recom Power RHV2-1212D/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	13.2 V	76 %	ITE (Commercial) Laboratory	12 V	-12 V	10.8 V	2	84 mA	84 mA
Recom Power RHV2-2412S/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	26.4 V	81 %	ITE (Commercial) Laboratory	12 V		21.6 V	1			167 mA

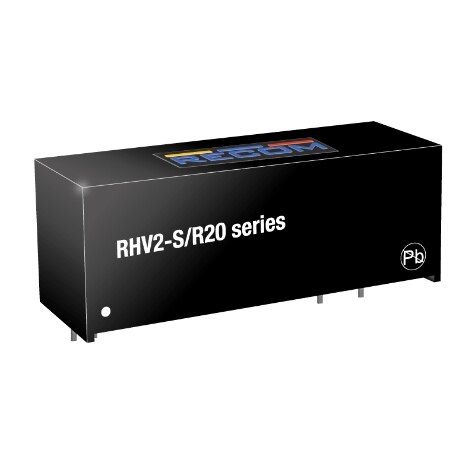

Recom Power RHV2-1224S/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	13.2 V	77 %	ITE (Commercial) Laboratory	24 V		10.8 V	1			84 mA
Recom Power RHV2-0505S/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	5.5 V	74 %	ITE (Commercial) Laboratory	5 V		4.5 V	1			400 mA
Recom Power RHV2-2405S/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	26.4 V	76 %	ITE (Commercial) Laboratory	5 V		21.6 V	1			400 mA
Recom Power RHV2-2424S/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 4 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	26.4 V	78 %	ITE (Commercial) Laboratory	24 V		21.6 V	1			84 mA
Recom Power RHV2-1205D/R20	Isolated Module	2 W	20000 VDC	Through Hole	16-SIP Module 5 Leads	1.77 in	0.59 in	45 mm	0.67 in	15 mm	17 mm	85 °C	-40 C	13.2 V	74 %	ITE (Commercial) Laboratory	5 V	-5 V	10.8 V	2
