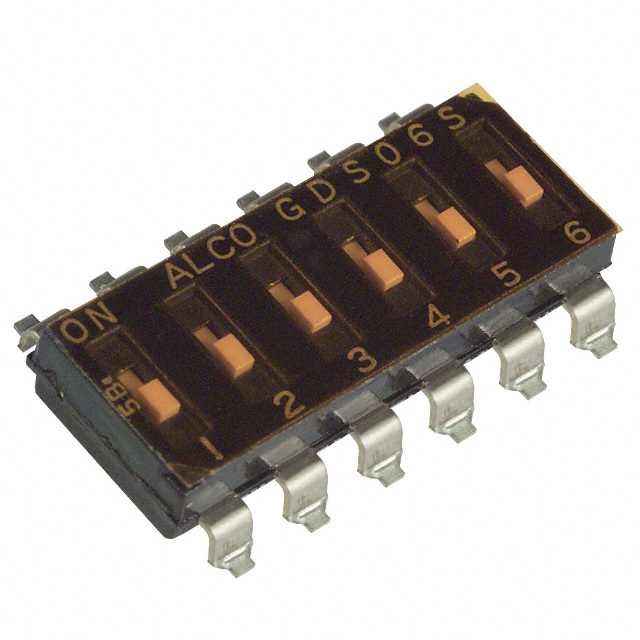

GDS06 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Body Material	Length	Length	Mechanical Life	Electrical Life	Contact Finish	Contact Material	Termination Style	Number of Positions	Mounting Type	Actuator Type	Washable	Actuator Level	Features	Circuit	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch
TE Connectivity AMP Connectors GDS06STR	Polyphenylene Sulfide (PPS)	0.594 in	15.09 mm	1000 Cycles	1000 Cycles	Gold	Copper Alloy	Gull Wing	6	Surface Mount	Slide (Standard)		Flush Recessed	Tape Seal	SPST	2.9 mm	0.114 in	25 mA	24 VDC	85 °C	-30 ░C	2.54 mm	0.1 "
TE Connectivity AMP Connectors GDS06S	Polyphenylene Sulfide (PPS)	0.594 in	15.09 mm	1000 Cycles	1000 Cycles	Gold	Copper Alloy	Gull Wing	6	Surface Mount	Slide (Standard)		Flush Recessed	Tape Seal	SPST	2.9 mm	0.114 in	25 mA	24 VDC	85 °C	-30 ░C	2.54 mm	0.1 "
