EYW06015012 Series

Catalog

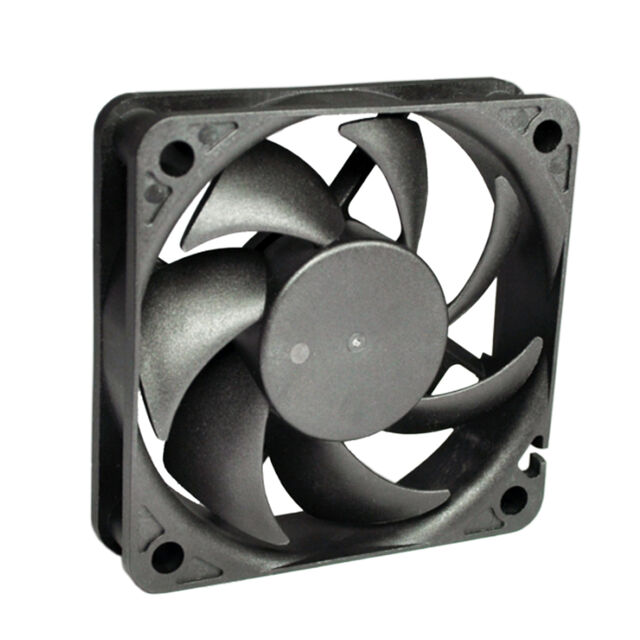

FAN AXIAL 60X15MM 12VDC WIRE

Part	Current Rating	Lifetime	Material - Blade	Material - Frame	Voltage Range (Min)	Voltage Range (Max)	RPM	Termination Leads Count	Termination Type	Termination	Width	Voltage - Rated	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Air Flow	Static Pressure	Noise	Power (Watts)	Bearing Type	Fan Type
YS TECH USA EYW06015012BSS-12	0.23 A	65000 Hrs	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	7 V	13.2 VDC	6100 RPM	2 leads	Wire Leads	2 Wire Leads	15 mm	12 VAC	60 mm	Square	60 mm	27 CFM	0.256 in H2O	38 dB	2.76 W	Ball	Tubeaxial
YS TECH USA EYW06015012BH-12	0.13 A	75000 Hrs	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	7 V	13.2 VDC	4800 RPM	2 leads	Wire Leads	2 Wire Leads	15 mm	12 VAC	60 mm	Square	60 mm	20.9 CFM	0.154 in H2O	33 dB	1.56 W	Ball	Tubeaxial
YS TECH USA EYW06015012LL-12			PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	7 V	13.2 VDC		2 leads	Wire Leads	2 Wire Leads	15 mm	12 VAC	60 mm	Square	60 mm						Tubeaxial
