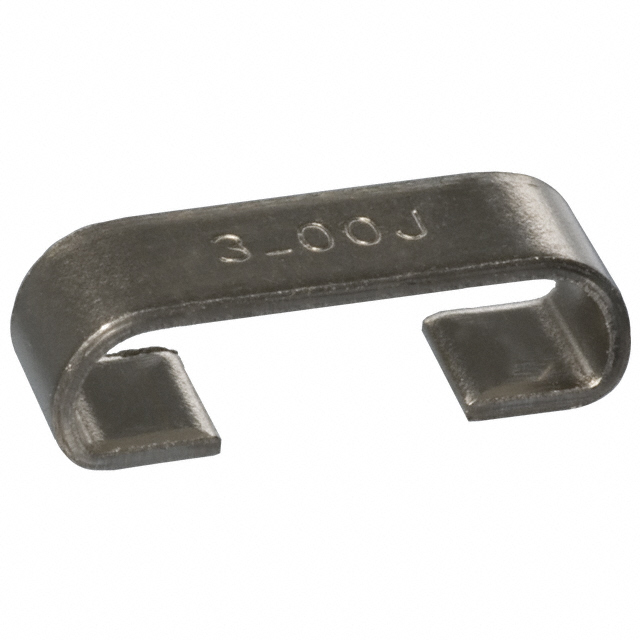

SB Series

Manufacturer: Ohmite

Catalog

CURRENT SENSE RESISTORS - SMD .015 OHM 1% 3W

Part	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Resistance	Composition	Tolerance	Temperature Coefficient	Package / Case	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Ohmite SBK12R015FER	3 W	0.15 in	3.81 mm	Current Sense	155 C	-55 C	2	15 mOhms	Metal Element	1 %	40 ppm/°C	C Bend Strip	SMD	0.125 "	3.18 mm	11.18 mm	0.44 in
Ohmite SBK20R020FER	5 W			Current Sense	155 C	-55 C	2	0.02 Ohms	Metal Element	1 %	40 ppm/°C	C Bend Strip	SMD	0.25 in		11.35 mm	0.447 in	6.35 mm	0.18 in	4.57 mm
Ohmite SBK12R015JER	3 W	0.15 in	3.81 mm	Current Sense	155 C	-55 C	2	15 mOhms	Metal Element	5 %	40 ppm/°C	C Bend Strip	SMD	0.125 "	3.18 mm	11.18 mm	0.44 in
Ohmite SBM20R003JER	5 W			Current Sense	155 C	-55 C	2	3 mOhms	Metal Element	5 %	70 ppm/°C	C Bend Strip	SMD	0.125 "	3.18 mm	11.18 mm	0.44 in		0.168 in	4.27 mm
