AGQ20T Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SIGNAL RELAY, 1.5 VDC, DPDT, 2 A, AGQ SERIES, SURFACE MOUNT, NON LATCHING
| Part | Coil Resistance | Operate Time | Coil Current | Switching Voltage [Max] | Must Operate Voltage | Contact Form | Contact Material | Coil Type | Coil Voltage | Release Time | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Contact Rating (Current) | Mounting Type | Must Release Voltage | Termination Style | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 16 Ohms | 4 ms | 93.8 mA | 110 VDC 125 VAC | 1.13 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 1.5 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 0.15 VDC | Gull Wing | General Purpose |
Panasonic Electronic Components | 16 Ohms | 4 ms | 93.8 mA | 110 VDC 125 VAC | 1.13 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 1.5 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 0.15 VDC | Gull Wing | General Purpose |
Panasonic Electronic Components | 15.991 Ohms | 4 ms | 93.8 mA | 110 VDC 125 VAC | 1.13 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 1.5 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 0.15 VDC | Gull Wing | General Purpose |
 Panasonic Electronic Components | 579 Ohms | 4 ms | 15.5 mA | 110 VDC 125 VAC | 6.75 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 9 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 0.9 VDC | Gull Wing | General Purpose |
Panasonic Electronic Components | 145 Ohms | 4 ms | 31 mA | 110 VDC 125 VAC | 3.38 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 4.5 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 0.45 VDC | Gull Wing | General Purpose |
Panasonic Electronic Components | 2500 Ohms | 4 ms | 9.6 mA | 110 VDC 125 VAC | 18 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 24 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 2.4 VDC | Gull Wing | General Purpose |
Panasonic Electronic Components | 145 Ohms | 4 ms | 31 mA | 110 VDC 125 VAC | 3.38 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 4.5 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 0.45 VDC | Gull Wing | General Purpose |

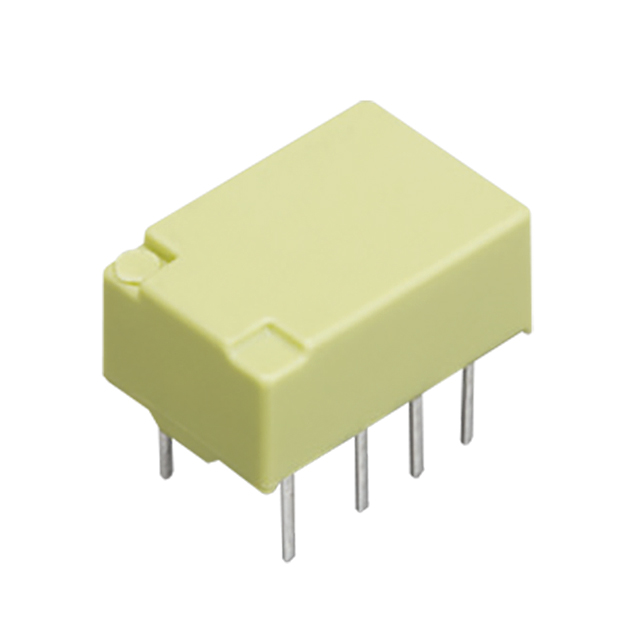

 Panasonic Electronic Components | 145 Ohms | 4 ms | 31 mA | 110 VDC 125 VAC | 3.38 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 4.5 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Through Hole | 0.45 VDC | PC Pin | General Purpose |
Panasonic Electronic Components | 579 Ohms | 4 ms | 15.5 mA | 110 VDC 125 VAC | 6.75 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 9 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Through Hole | 0.9 VDC | PC Pin | General Purpose |
Panasonic Electronic Components | 1.026 kOhms | 4 ms | 11.7 mA | 110 VDC 125 VAC | 9 VDC | DPDT (2 Form C) | Gold (Au) Silver Nickel (AgNi) | Non Latching | 12 VDC | 4 ms | BSI cURus | 85 °C | -40 C | 220 W 250 VA | 2 A | Surface Mount | 1.2 VDC | Gull Wing | General Purpose |
